Protektor Eco Dry Wall Partition Profiles - Dry Wall Stud and Track
Verified by manufacturer over a year ago

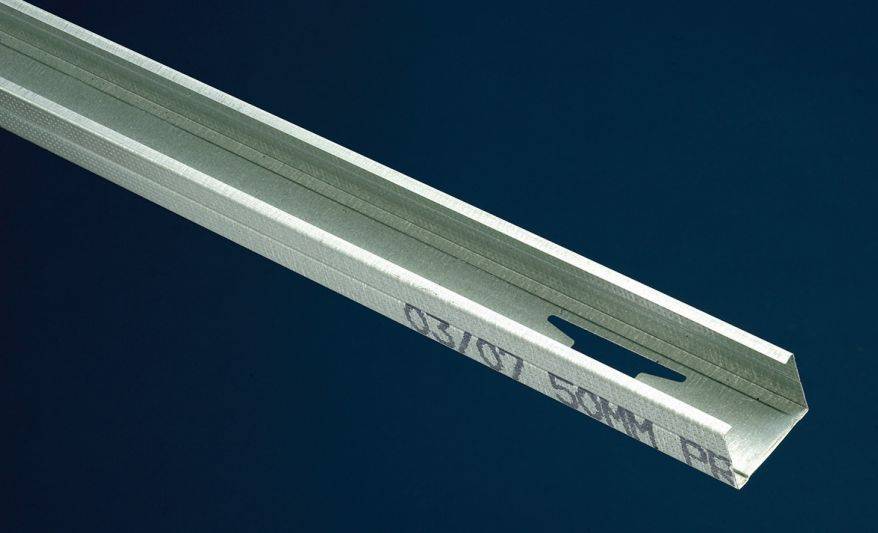

50 mm C studs
50 mm C studs
A low cost, high quality metal friction fit construction used to form the support frame for non-loadbearing plasterboard partitions.
Application
Drywall systems
Description

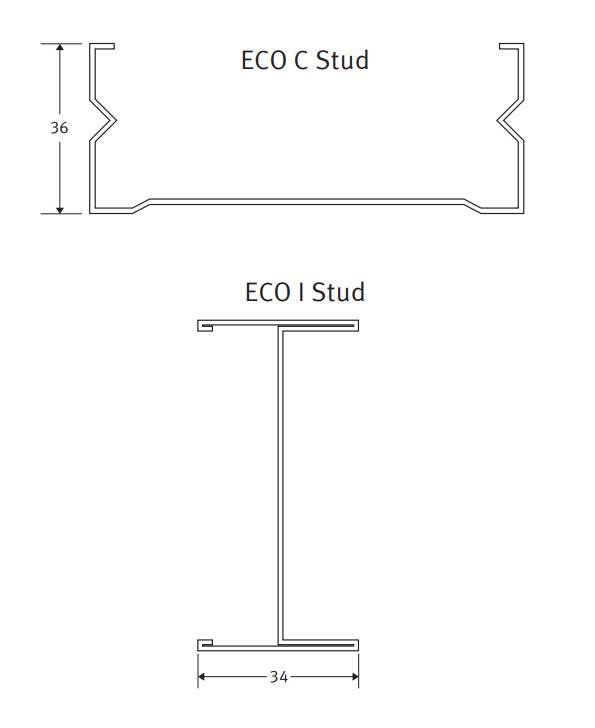

Protektor Eco Stud Partition profiles are a low cost, high quality metal friction fit construction used to form the support frame for non-loadbearing plasterboard partitions.
Eco profiles are manufactured to the highest possible quality and fully conform with BS 7364: 1990. Specification for Galvanised steel stud work used in Partitions with screw fixed plasterboard.
Stud profiles can be supplied in five differing widths and a variety of standard lengths to give a wider choice in the variety of builds and applications where required.
General information
Color | Other |
Finish | Galvanized |
Material | Carbon steel |
Shape | Other |
Length | 2400 mm Guidance for specification option: 'C' stud profiles only. 2700 mm Guidance for specification option: 'C' or 'I' stud profiles only. 3000 mm 3600 mm Guidance for specification option: 'C' or 'I' stud profiles only. 4200 mm Guidance for specification option: 'C' or 'I' stud profiles only. |
Width | 50 mm 60 mm 70 mm 92 mm 146 mm Manufacturer guidance'C' or 'I' stud profiles only; tracks are +2 mm. |
Height | Bespoke |
Warranty description | Other |
Uniclass | |
CAWS | K10/125 Metal stud partition system K10/30 Metal stud |
Specification data - Carbon steel dry lining frames
Standard | To BS 7364. |
Material | Galvanized lightweight cold-rolled steel.Guidance for specification option: 0.5 mm thick. |
Component types | |
Partitions | Eco C stud, 50 mm with Eco U track, 52 mm.Guidance for specification option: Track: 30 mm deep; 3 m long as standard. Eco C stud, 50 mm with Eco U deep track, 52 mm.Guidance for specification option: Track: 50 mm deep; 3 m long as standard. Eco C stud, 50 mm with Eco U extra deep track, 52 mm.Guidance for specification option: Track: 70 mm deep; 3 m long as standard. Manufacturer guidanceEco C stud, 50 mm: Available in lengths of 2.4, 2.7, 3.0 and 3.6 m. Insert requirements or refer to drawing/ schedule etc. |
Accessories | Fire rated and acoustic sealant. Guidance for specification option: Available in 300 or 600 mL. Isolation foam strip, 45 mm. Guidance for specification option: 3 mm thick; supplied in 30 m rolls as standard. Self-adhesive on one side. Can be easily applied on site or where requested at time of order can be pre-applied to the tracks ready for use on site. Acoustic foam strip, 45 mm. Guidance for specification option: 10 mm thick; supplied in 10 m rolls as standard. Self-adhesive on one side. Designed to isolate the track or stud profiles from the substrate hence reducing the possibility of flanking transmission through the frame. Installed on the underside of the track when laying out and to the back of the stud profile when starting a frame from an existing wall or flat surface. Flanking strip, 100 x 5 mm. Guidance for specification option: Supplied in 50 m rolls as standard. Self-adhesive on one side. Flanking strip with polythene skirt, 100 x 5 mm. Guidance for specification option: Supplied in 50 m rolls as standard. Self-adhesive on one side. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
Literature
Dry Lining Profiles
