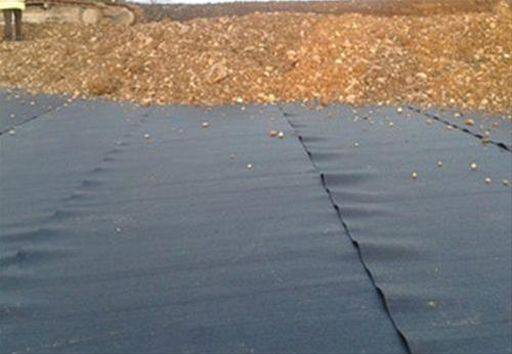

Protecto-Mat Rubber Crumb Protection Membrane

Verified by manufacturer 2 months ago

Wallbarn Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

Protecto-mat rubber crumb protection membrane.

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

Ideal for horizontal and vertical surface protection for applications such as podium decks, green roofs, regularly trafficked roofs, inverted roofs, parking areas, walkways, on maintenance areas; in underground waterproofing such as foundation walls, basements, drains, tunnels, and ditches.

Description

A flexible and easy-to-install protection membrane for use in a large variety of applications. It is durable, tough and has a density of 950 kg/m³.

It protects the waterproofing membrane both during the construction process from damage caused by abrasion, point loading, blunt materials, backfilling and concrete casting; and after completion as a permanent protection, thus ensuring and extending the lifespan of the membrane.

Can be used on membranes where bituminous protection boards are not compatible, such as polyurethane or polyvinyl chloride (PVC) single ply membranes.

It is manufactured in a non-rigid roll format from rubber crumb, sourced from recycled tyres. The rubber crumb particles are bound together with a mixture of polyurethane resins to form a strong membrane which will not delaminate when exposed to the elements. It is lightweight and non-toxic to handle, and strong enough to tolerate concrete pour and the application of hot materials straight onto its surface.


Features and benefits:

  • Excellent mechanical protection of the waterproofing membrane.
  • Easy to install and reusable.
  • Immediately trafficable after installation.
  • High dimensional stability for permanent loads (driveway roofs and floors, green roofs, foundations).
  • Strong resistance to abrasion and tearing.
  • Rot-proof, resistant against mould and moisture.

General information

Color

Black

Finish

Matt

Material

Rubber

Shape

Rectangle

Length

15000 mm

8000 mm

Manufacturer guidance

3mm Rubber Crumb comes in 15 metre roll (1 metre width)

6mm Rubber Crumb comes in 8 metre roll (1 metre width)

Width

1000 mm

Height

3 mm

6 mm

Warranty description

15 year

Uniclass

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

J40/297 Waterproofing/ damp-proofing/ gas-retardant membrane

Product range

Bituminous & Rubber Crumb Membrane Protection and Drainage Channel

Specification data - Polymeric membranes

Material

Rubber.

Performance characteristics

-

External fire performance

B2.

Guidance for specification option:

To DIN 4102.

Tensile properties

0.9 N/mm².

Manufacturer guidance

To EN SO 1798.

Width (minimum)

1000 mm.

Thickness (minimum)

2 mm.

Guidance for specification option:

Roll length: 18 m.

3 mm.

Guidance for specification option:

Roll length: 15 m.

4 mm.

Guidance for specification option:

Roll length: 12 m.

5 mm.

Guidance for specification option:

Roll length: 10 m.

6 mm.

Guidance for specification option:

Roll length: 8 m.

Elongation at break

35%.

Guidance for specification option:

To EN ISO 1798.

Temperature resistance

-30 to +80°C (maximum).

ThermalConductivity

0.1226 W/m·K.

Guidance for specification option:

To EN 12667.

Chemical resistance

Resistant to fungi, insects and microbe attack, plus highly resistant to acids and alkaline detergents.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Material

Rubber

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

4

IFC

IFC2X3

2

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

Literature

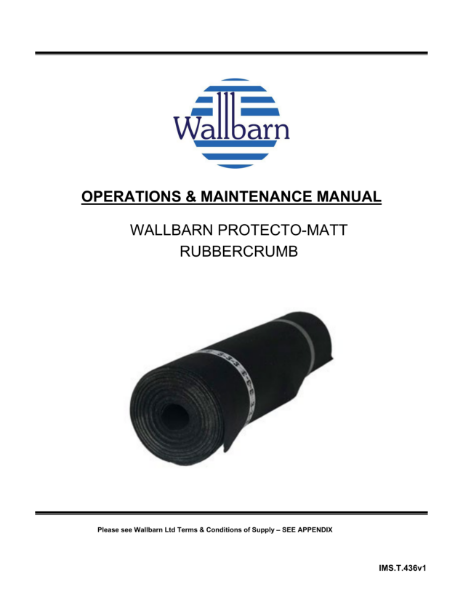

O&M Manual - Rubber Crumb

O&M Manual - Rubber Crumb

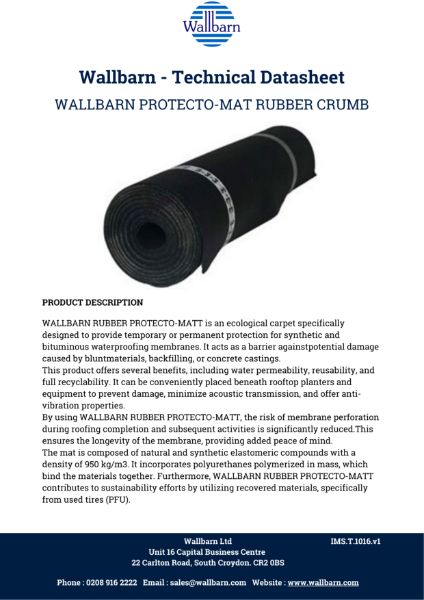

Datasheet - Protecto-Mat Rubber Crumb Protection
