Protecto-Board Bituminous Board - Membrane Protection
Verified by manufacturer 2 months ago
Protecto-Board Bituminous Membranes - 6 mm
Protecto-Board Bituminous Membranes - 6 mm
ISO 9001 Quality Management
Certificate type
Robust, preformed asphaltic board, designed to protect GCP self-adhesive membranes, is rot-proof, non-compressive, lightweight, flexible, and bitumen-impregnated, offering superior water resistance.
Application

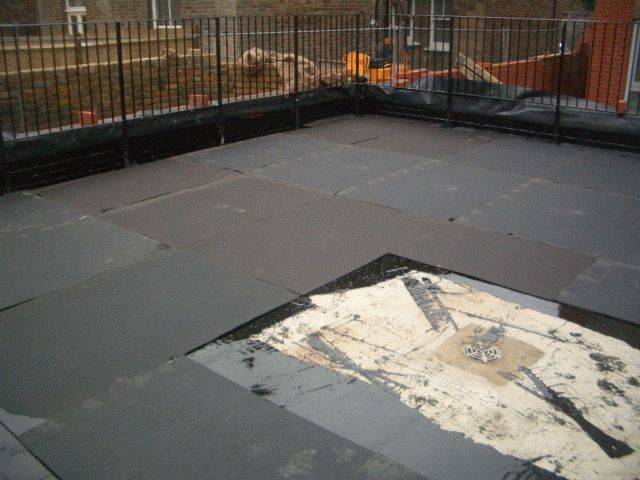

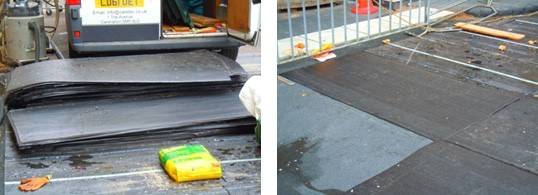

- Permanent protection to horizontal and vertical waterproofing membranes against damage caused by site traffic, mechanical damage and ground settlement.
- Temporary protection to areas which need to be protected against following trades; the boards can be taken up at a later stage if required.
Description
Bituminous, semi-flexible protection board for use in horizontal and vertical applications to prevent damage to waterproofing membranes.
Features and benefits:
- Made from a mixture of fibres saturated with at least 75% bitumen, covered one side with a polyethylene film.
- Polyethylene film avoids the bitumen bleeding onto other surfaces.
- Tough and durable and can withstand concrete pour.
- Completely rot-proof and will not delaminate even when immersed in water.
- Can be butted together and fixed by either spot bonding or fixing the edges with heavy duty bitumen tape.
- Can be heat bonded on the open side, providing very good adhesion to vertical surfaces.
- Easily cut and shaped around corners and details.
- Available in two thicknesses.
General information
Color | Black |
Finish | Laminated Guidance for specification option: Both faces |
Material | Bitumen |
Shape | Rectangle |
Length | 2000 mm |
Width | 1000 mm |
Height | 3 mm 6 mm Manufacturer guidance3mm, 6mm |
Warranty description | 15 year Guidance for specification option: Limited warranty |
Uniclass | |
CAWS | J30/330 Protection boards J30/80 Protection boards J40/380 Protection boards for damp-proofing/ tanking J40/70 Protection boards for damp-proofing/ tanking |
Product range |
Specification data - Bitumen-impregnated softboards
Material | Rigid bitumen-impregnated softboard. |
Surface | Polyethylene film to both faces. |
Thickness | 6 mm. |
Size: | 2 x 1 m. Guidance for specification option: Protecto-Board Bituminous Membranes. |
Weight | 15.3 kg. |
Water absorption | To ASTM D5147, <0.75%. |
Puncture resistance | To ASTM D514, 1200 N/ 25 mm. |
Mass per unit area | 7.65 kg/m². |
Impact resistance | To EN 12691, >700 mm. |
Reaction to fire | To EN 13501-1, Class F. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Saudi Arabia |
Country of product manufacture | Saudi Arabia |
Material | Bitumen |
Recyclability | 50% |
