Protect HVM Bollard
Verified by manufacturer 2 days ago
Hostile vehicle mitigation (HVM) tested bollard.
Application
Outdoor bollard for HVM applications.
Description
The Protect Bollard is tested to withstand impact from vehicles to IWA 14-1 standards.

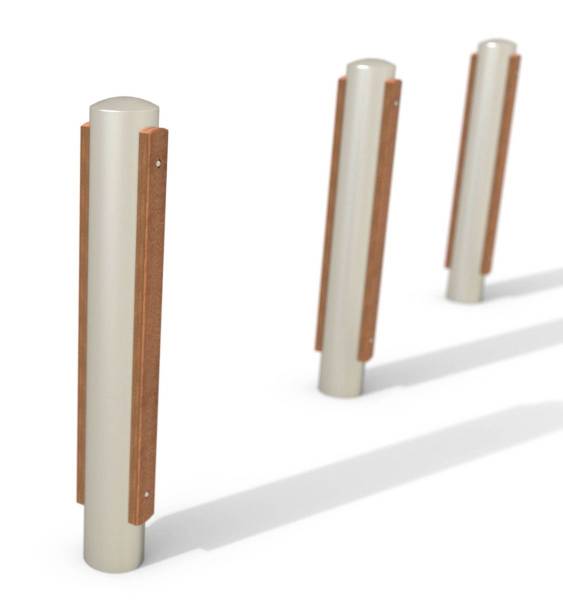

As standard, the bollard is manufactured in a grade 304 grit brushed finished stainless-steel sleeve, with the option of either a flat top or a fully welded dome top and two sapele timber bumpers. Also available in galvanized and powder-coated steel.
This sleeve sits atop a ‘Protect Impact Core’ that is hot-dip galvanized to BS EN 1461:2009 as standard and cast in concrete at a total depth of 250 mm.
General information
Color | Other |
Finish | Brushed Stainless steel Powder-coated Galvanized |
Material | Stainless steel Steel |
Shape | Circle Other |
Length | 139 mm Manufacturer guidanceDiameter. |
Width | 139 mm Manufacturer guidanceDiameter. |
Height | 900 mm |
Warranty description | Five year |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
SKU Code | 303.0306 |
Specification data - Stainless steel bollards
Classification data | |
Standard | In accordance with IWA 14-1:2013. |
Dimensions | |
Size and profile | 139 mm diameter. |
Height | 900 mm. |
Length below ground | 250 mm. |
Top profile | Flat. Dome. |
Base | Protect Impact Core. Guidance for specification option: Hot-dip galvanized to BS EN 1461:2009 as standard and cast in concrete at a total depth of 250 mm. |
Finishes | |
Worked finishes | Brushed stainless steel. Guidance for specification option: Premium. Galvanized steel. Guidance for specification option: Standard. Powder-coated steel. Guidance for specification option: Premium. |
Accessories | Sapele timber bumpers. Siberian larch timber bumpers. |
Performance | Single core: V/1500[M1]/48/90:2.2; Dual core: V/2500[N1G]/48/90:0.0. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Steel |
Recyclability | Yes |
Expected Life | Ten year |
