Protect and Drain - Wallbarn HDPE Protecto-drain 8

Verified by manufacturer 2 months ago

Wallbarn Ltd Third party certifications:

  • ISO 9001 Quality Management

    Certificate type

HDPE cupsated sheet membrane, fixing studs, bitumen adhesive tape.

Jump to:
BOS
 +44 (0)20 8916 2222 Website

Application

Waterproofing, tanking, lining planters, civil engineering and temporary protection (internal and external). For basements and subterranean structures.

Description

Protection and drainage layer.


Features and benefits:

  • High density polyethylene (HPDE).
  • 0.6 mm-thick membrane with 8 mm-deep cups.

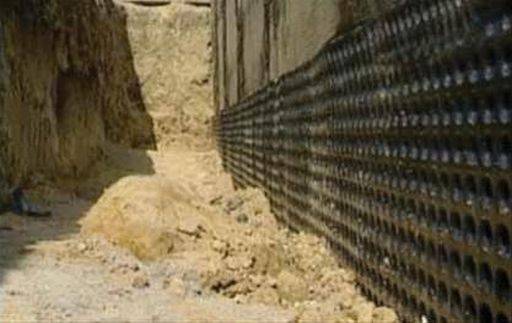

  • Waterproof membrane manufactured with an egg-box shaped profile to prevent abrasion and puncturing of tanking membranes and allow water to drain vertically down the side of the structure.
  • Resistant to chemicals, roots, mould and bacteria, but requires protection from UV.
  • Harmless to drinking water.
  • Can flex and be shaped around awkward areas and details without compromising the seal.
  • Folded around the catchment system laid beneath which will pump or drain the water away.
  • Also available as a lightweight membrane (specified separately).

General information

Color

Black

Finish

Anti-microbial

Material

High density polyethylene (HDPE)

Guidance for specification option:

High density polyethylene (HDPE).

Shape

Rectangle

Length

20000 mm

Width

2000 mm

1000 mm

Manufacturer guidance

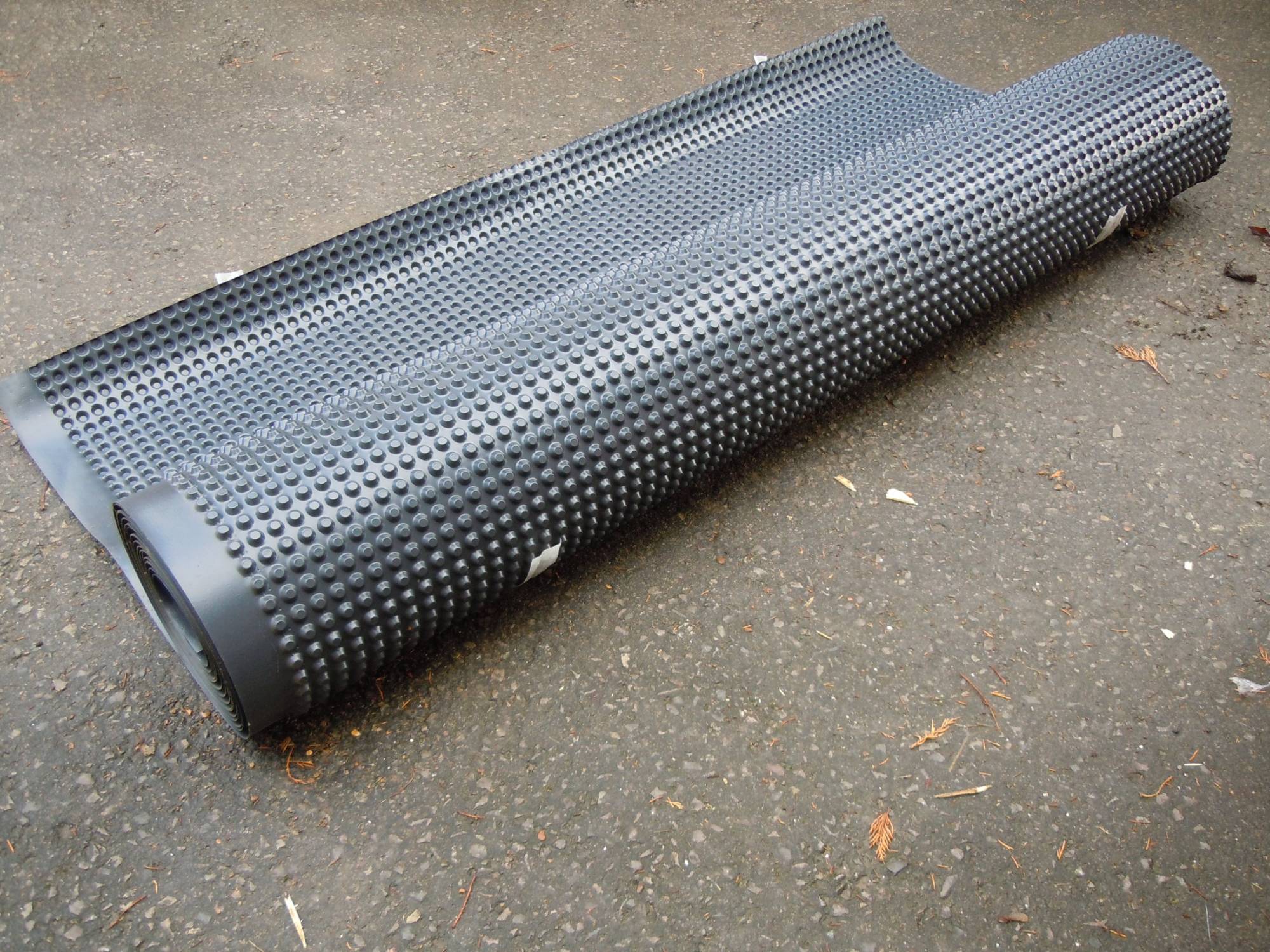

Protecto Drain 8 is available in 20 metre rolls in either 1 metre or 2 metre widths.

Height

8 mm

Warranty description

15 year

Guidance for specification option:

Limited warranty.

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

R16/380 Geocomposite drainage sheet for fin drains

Product range

Bituminous & Rubber Crumb Membrane Protection and Drainage Channel

Specification data - Plastics sheets

Material

High-density polyethylene (HDPE).

Performance characteristics

-

Fire performance

B2 DIN 4102.

Physical properties

-

Colour

Black.

Weight (minimum)

550 g/m².

Dimensions

-

Thickness (minimum)

0.6 mm.

Width (minimum)

2000 mm.

1000 mm.

Roll length (minimum)

20 000 mm.

CompressiveStrength

530 kN/m².

Studs

Height: 8 mm.

Guidance for specification option:

Air volume between studs: 5 L/m².

Drainage

4.6 L/s/m.

Guidance for specification option:

Performance.

Temperature resistance

-40°C to +80°C.

Fixing

Wall fixing.

Guidance for specification option:

  • Individual sheets can be fixed together either using double sided tape or with fixing studs and nails.
  • The studs are specially designed to fit into the cups. They have a hole in the middle to drive the nails or screws through and will seal the membrane around the nail fixing so no water will go into the pierced area.
  • A cover profile can be fitted to the top edge of the drain, ensuring ventilation of the air gap and prevents particles or water clogging the cavity.
  • Heavy duty 900 g/m² or lightweight 450 g/m² versions available.


Accessories

None.

Protecto-drain tape.

Guidance for specification option:

Bituminous double sided tape for bonding sheets together and to the structure.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

High density polyethylene (HDPE)

Guidance for specification option:

High density polyethylene (HDPE).

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

6

Revit
 -

6

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

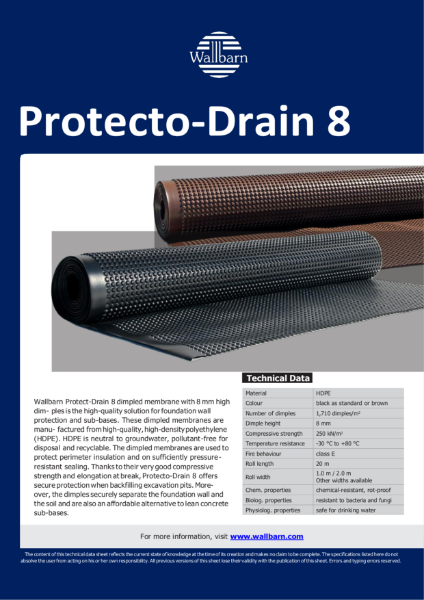

Datasheet - Protecto-drain 8
