Protec Lockers
Verified by manufacturer 5 months ago
Model 1
Model 1
A range of flexible secure lockers with strong SGL doors and carcass; available with five lock options.
Application
Suitable for locker and changing rooms.
Description

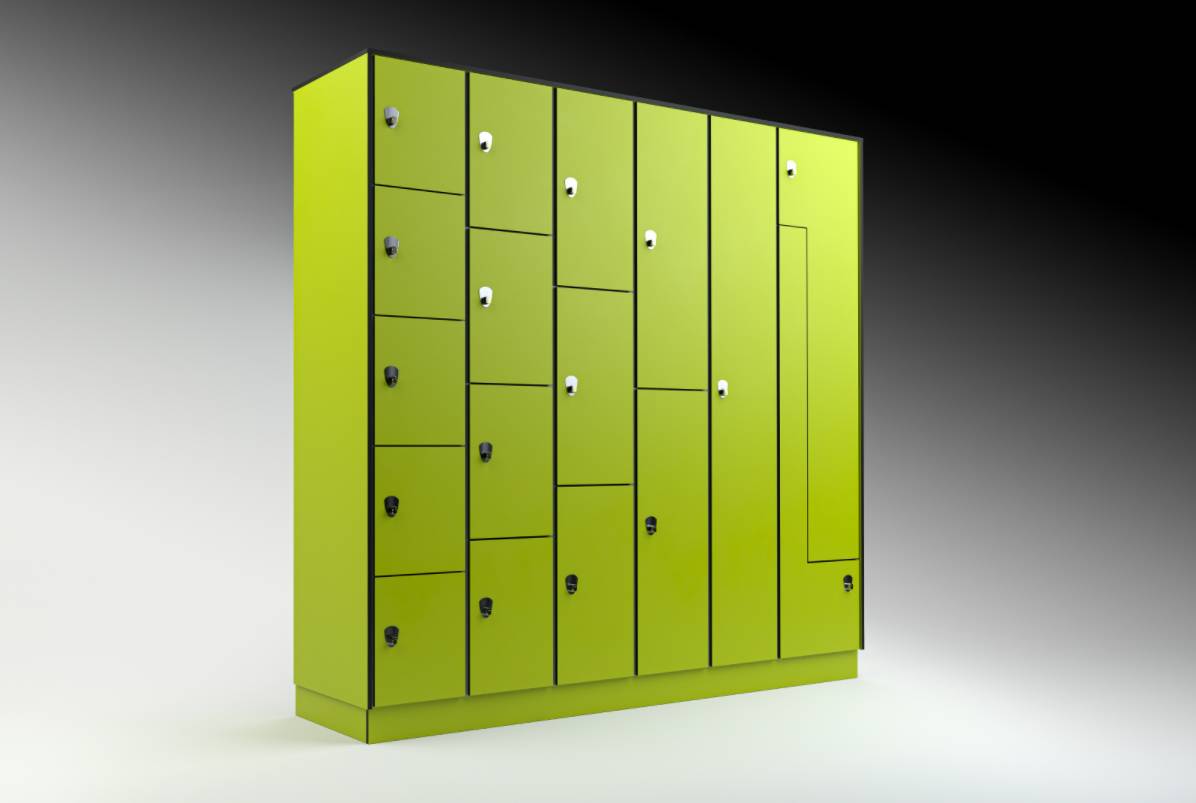

Protect lockers are a flexible and secure locker system with strong SGL doors and carcass, making the whole system totally water resistant. Any combination of the six locker models are offered, with a choice of five locking mechanisms to suit installation requirements. For wet areas, it is advisable that an additional base is provided.
Features and benefits:
- Panels: Solid grade laminate for total water resistance and durability.
- Solid grade laminate provides robust structure.
- Doors: SGL with integrated hinge design.
- Light Grey SGL that is easy to wipe clean.
- Coat hook: Integral to maximize internal space supplied as standard with model 1, 2 and Z.
- Lockers are delivered pre-assembled and ready to install.
General information
Color | Yellow Grey Manufacturer guidance34 laminate colours options available; select from manufacturer literature. |
Finish | Satin Anodized |
Material | Laminate Guidance for specification option: Doors and carcass: 13 mm high density solid grade laminate, 1400 kg/m³. |
Shape | Rectangle |
Width | 304 mm 404 mm Guidance for specification option: Z locker only available in 404mm |
Height | 1800 mm |
Uniclass | |
CAWS | N10/220 Lockers |
Product range |
Specification data - Lockers
Classification data | |
Locker type | One door. |
Dimensions | 1800 x 500 mm (overall). Guidance for specification option: H x D. |
Material | Doors and carcass: 13 mm SGL, Shelves: Injection moulded. Guidance for specification option: SGL: Solid grade laminate (high density). |
Finish | Solid grade laminate. |
Colour | Manufacturer guidance34 laminate colours options available; select from manufacturer literature. Shelves light grey. |
Fittings | Cam lock with numbered escutcheon. Coin-retain lock. Coin-return lock. Electronic lock. Padlock and hasp locking system. Digi-lock and RFID Lock. |
Width (see manufacturer's guidance) | 300 mm. 400 mm. Manufacturer guidanceExternal width: All lockers available at 308 mm or 408 mm external width, excluding the Z locker which is only available in 408 mm. |
Other requirements | Not required. Blue wrist band. Red wrist band. |
Integral accessories | Coat hook. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 DWG | - | 1 |
Literature
Bushboard Washrooms Brochure
