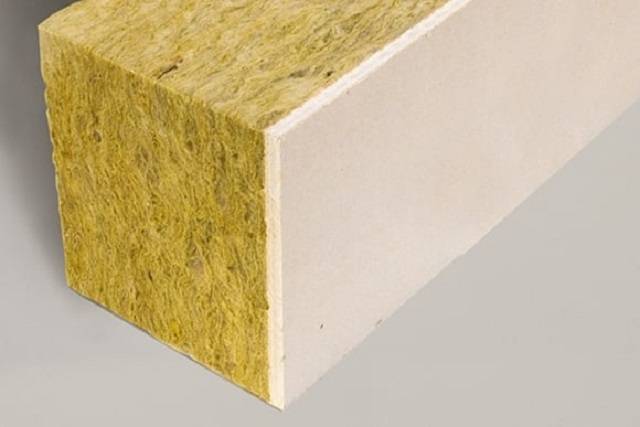

Promat TLFR Board
Verified by manufacturer 2 months ago
Thermal upgrades for concrete floors.
Application
Designed to be fixed to the underside of concrete floors, in underground car parks and similar applications.
Description
Thermal upgrades for concrete floors that offers a solution to the increasing requirement for thermal insulation of semi-exposed concrete floors both in the conversion and refurbishment of existing and new building constructions.
Features and benefits:
- Excellent thermal performance.
- Ease of installation, maintenance and decoration.
- Stone wool insulation.
- Enhanced BREEAM rating.
General information
Color | White Guidance for specification option: Natural off-white. |
Material | Calcium silicate Guidance for specification option: Calcium silicate faced board bonded to stone wool insulation. |
Length | 1200 mm |
Width | 600 mm |
Height | 136 mm 166 mm |
Uniclass | |
CAWS | K11/60 Board K11/885 Fire protection board K11/890 Board |
Specification data - Fibre-reinforced calcium silicate fire protection boards
Standard | Boards comply with GWP threshold of <5.Guidance for specification option: Specified in documents such as the Code for Sustainable Homes. |
Density | Facing board density: 1300 kg/m³. Stone wool density: 85 kg/m³ |
Thickness | 136 mm.166 mm. |
Edges | Bevelled. |
Colour | Natural off-white. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom Guidance for specification option: And China. |
Recyclability | Manufacturer guidanceNot recyclable. |
Literature
Promat TLFR Brochure
