PROMASEAL® Fire Pillows

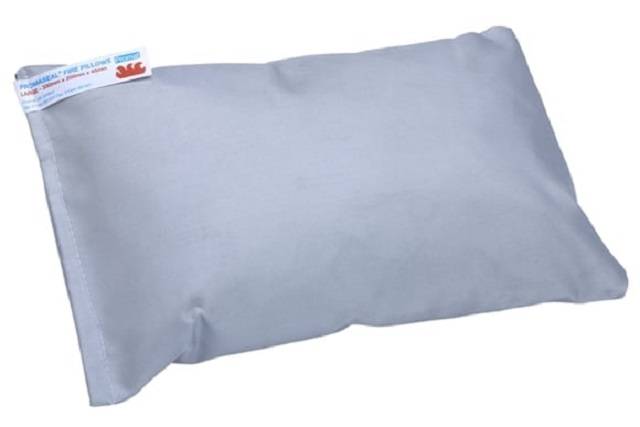

PROMASEAL® Fire Pillow - Large 330 x 200 x 45 mm
PROMASEAL® Fire Pillow - Large 330 x 200 x 45 mm
Fire pillows used to limit the spread of fire through openings in fire resisting walls and floors used for the penetration of cables or services.
Application
Designed to maintain fire resistance of walls and floors at services openings, generally for cables and non-combustible pipes where frequent access is required for alterations.
Description
Fire pillows are used to limit the spread of fire through openings in fire resisting walls and floors used for the penetration of cables or services. They are particularly useful where alterable fire seals are required.
PROMASEAL® Fire Pillows consist of strong, flexible, water resistant coated woven bags filled with intumescent materials. They are installed by laying the pillows in courses with a minimum 50 mm overlap between pillows as they are built up within the opening around services and can be removed and re-built to accommodate changes of cables and services as required.
Features and benefits:
- Easy to alter and adjust to suit opening.
- Strong, flexible and water resistant.
- Available in a variety of sizes.
- Up to 120 minutes' fire resistance (BS 476 Part 20).
- Provide permanent fire protection.
- Useful when only temporary fire protection is required, have been fire tested for up to 120 minutes.
General information
Finish | Woven Coated woven bags. |
Material | Fibreglass Glass fibre fabric bags with vermiculite-based granular fill. |
Uniclass | |
CAWS | P12/345 Intumescent pillows |
Specification data - Intumescent pillows Enhanced data
Composition | Strong, flexible, water resistant coated woven bags filled with intumescent materials |
Size | 330 x 200 x 45 mm.Length x width x thickness. |
Linking cable | Electrical cables and cable tray. |
Fire performance | Fire tested for up to 120 minutes. |
Material/ Finish | Glass fibre fabric bags with vermiculite-based granular fill; coated woven bags. |
