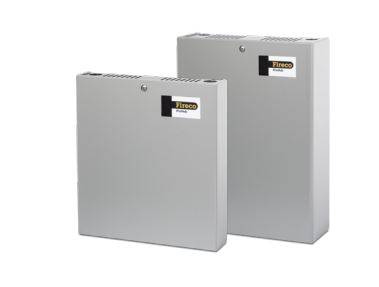

ProHub
Application

Suitable for use where there is a standard internet connection using WiFi or ethernet connection available.

Description

ProHub consists of a Pro Controller, InSite software, and Digital Messaging Service (DMS), connecting directly into your fire alarm panel.



The Pro Controller activates all of your Dorgard Pro and Freedor Pro devices via radio signal, making them suitable for critical fire doors such as stairwells and escape routes.


InSite enables you to remotely monitor all of your Fireco Pro door products and forms part of the golden thread of the building by allowing users to log important information on fire doors & ironmongery such as the installation and inspection dates.


DMS alerts subscribers of alarm activation via text, Whatsapp, voice message and email. The messages are bespoke to each building and can be used to notify fire wardens or to give building users appropriate evacuation instructions.


Features and Benefits:



  • Simple to install using a standard internet connection using WiFi or ethernet connection.
  • Available in POE, 24 V and 240 V mains with battery back up.
  • Optional activation to the notification system, Digital Messaging Service (DMS).
  • 3 x InSite device licenses included - Subscription to InSite / DMS required.
  • CE marked.

General information

Color

Grey/ Black

Grey cover with black base.

Shape

Rectangular

Size

55 x 260 x 240 mm

ProHub Midi

90 x 325 x 245 mm

ProHub Maxi

WarrantyDescription

Five years

Uniclass 2015

Pr_75_80_30_70 Radio-linked interface modulesPrimary
Specification data - Radio-linked interface modules Enhanced data

Enclosure

-

Colour

Grey/ Black.

Grey cover with black base.

Power source

Power-over-ethernet.

ProHub Midi.

Mains powered.

ProHub Maxi.

Depth

55 mm.

ProHub Midi.

90 mm.

ProHub Maxi.

Usage

Pro radio network controller with monitoring through the InSite cloud-based software.

Radio system

433–434 MHz.

Radio frequency.

NominalFrequencyRange

40–50 m.

Typically, depends on site.

Evidence of compliance

EMC Directive and Radio Equipment Directive.

Other features

Digital Messaging Service (DMS) capability can be activated.

Connections

50 ProExtenders and 500 Dorgard Pro / Freedor Pro units.

Maximum number of connected units.

Product Reference

ProHub Midi

ProHub Maxi

Digital objects
Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
