ProFlow S Rainwater Outlets
Verified by manufacturer 5 months ago
LG PVC - Light Grey EshaPlan PVC Single ply membranes
LG PVC - Light Grey EshaPlan PVC Single ply membranes

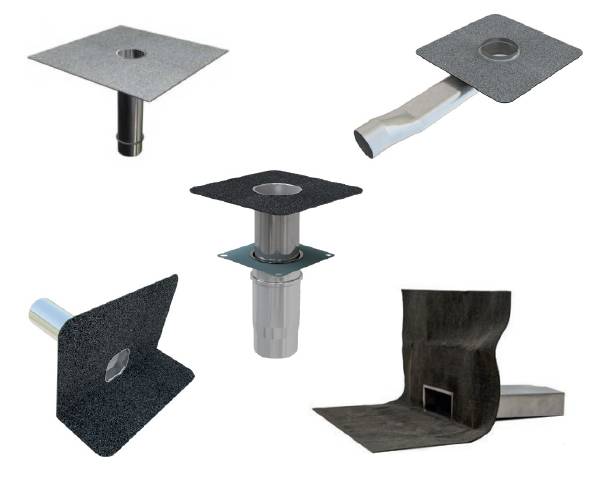

A range of rainwater outlets for PVC single ply membrane and reinforced bitumen membrane roofs.
Application
For use on RBM (reinforced bitumen membrane) or PVC single ply flat roofs using a pre-welded flange of either material to create a water-tight seal homogeneous with the surrounding waterproofing system.
Description
ProFlow S Rainwater Outlets are simple one-piece units that make installation quick and easy. Manufactured from high grade stainless steel the robust construction and unique factory bonded interface between the spigot and flange provides an impenetrable seal against water ingress: ensuring against water ingress and creating rainwater outlets that are very durable and long lasting. To further reduce the risk of water ingress into the building ProFlow S rainwater outlets are supplied with the versatile ‘O’ ring spigot seal.
Features and benefits:
- One piece unit – quick installation.
- Heavy duty 400/600 mm long stainless steel spigot – durable, corrosion resistant.
- Distinctive factory bond between spigot and membrane flange – no water ingress.
- Can be made to fit into tight spaces – versatile, can be used in most areas.
- New build or refurbishment applications – one type suits all.
- Fixing locations on stainless steel flange – ease of installation.
- Flush finish – minimal risk of ‘ponding’.
- Versatile ‘O’ ring seal – prevents water backflow.
- Many leaf guard options – designed for all applications.
- Easy installation – no special tooling required.
- Comprehensive range of sizes – solutions for most applications.
General information
Color | Grey |
Material | Stainless steel |
Shape | Other |
Length | 350 mm 500 mm |
Width | 350 mm 500 mm |
Height | 400 mm 600 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | PVC single ply. |
Roof insulation thickness | Manufacturer guidanceInsert thickness or omit if not required. |
Material | Stainless steel. |
Grating | ProGuard-UG-210.Guidance for specification option: Stainless steel. Securely clamps to the inside of the outlet stem. Tamper proof. ProGuard-UG-325.Guidance for specification option: Stainless steel. Securely clamps to the inside of the outlet stem. Tamper proof. ProGuard-CASCADE.Guidance for specification option: Stainless steel. Increases the flow rate by over 50% compared to standard leaf guards.Tamper proof. ProGuard-MONSOON.Guidance for specification option: Designed to maximise flow rates through standard size drainage systems. ProGuard-CLICK.Guidance for specification option: Simple answer for applications where maintenance is required on a regular basis. Tool free ratchet system allows quick removal of leaf guard. ProGuard-WB.Guidance for specification option: Plastic coated wire ball leaf guard is effective and economical. Prevents debris from entering the roof outlets. Pipe size: 50–110 mm. ProGuard-LWB.Guidance for specification option: Plastic coated wire ball leaf guard is effective and economical. Prevents debris from entering the roof outlets. Pipe size: 110–160 mm. ProGuard-CG-50.Guidance for specification option: Stainless steel cylindrical leaf guard, ideal for use in restricted areas and for ballasted roofs. For use with DuoDrain. Pipe size: 50 mm. ProGuard-CG-62.Guidance for specification option: Stainless steel cylindrical leaf guard, ideal for use in restricted areas and for ballasted roofs. For use with DuoDrain. Pipe size: 62 mm. ProGuard-CG-70.Guidance for specification option: Stainless steel cylindrical leaf guard, ideal for use in restricted areas and for ballasted roofs. For use with DuoDrain. Pipe size: 70 mm. ProGuard-CG-75.Guidance for specification option: Stainless steel cylindrical leaf guard, ideal for use in restricted areas and for ballasted roofs. For use with DuoDrain. Pipe size: 75 mm. ProGuard-CG-80.Guidance for specification option: Stainless steel cylindrical leaf guard, ideal for use in restricted areas and for ballasted roofs. For use with DuoDrain. Pipe size: 80 mm. ProGuard-CG-95.Guidance for specification option: Stainless steel cylindrical leaf guard, ideal for use in restricted areas and for ballasted roofs. For use with DuoDrain. Pipe size: 95 mm. ProGuard-CG-110.Guidance for specification option: Stainless steel cylindrical leaf guard, ideal for use in restricted areas and for ballasted roofs. For use with DuoDrain. Pipe size: 110 mm. ProGuard-CG-125.Guidance for specification option: Stainless steel cylindrical leaf guard, ideal for use in restricted areas and for ballasted roofs. For use with DuoDrain. Pipe size: 125 mm. ProGuard-CG-145.Guidance for specification option: Stainless steel cylindrical leaf guard, ideal for use in restricted areas and for ballasted roofs. For use with DuoDrain. Pipe size: 145 mm. ProGuard-CG-160.Guidance for specification option: Stainless steel cylindrical leaf guard, ideal for use in restricted areas and for ballasted roofs. For use with DuoDrain. Pipe size: 160 mm. ProGuard-BG.Guidance for specification option: Very low profile, making it suitable for balconies and other areas which are exposed to light foot traffic. Pipe size: 50–110 mm. ProGuard-PG-225.Guidance for specification option: Stainless steel parapet leaf guard prevents blocking of outlet by debris Suitable with all ParaDrain sizes. Pipe size: 50–110 mm. ProGuard-PG-325.Guidance for specification option: Stainless steel parapet leaf guard prevents blocking of outlet by debris Suitable with all ParaDrain sizes. Pipe size: 110–160 mm. ProGuard-PG-CLICK.Guidance for specification option: Provides solution for applications where maintenance is required on a regular basis. Simple ratchet system allows quick and tool free removal of guard. Suitable for all ParaDrain sizes. Pipe size: 50–110 mm. ProGuard-BSG-62.Guidance for specification option: Stainless steel cylindrical leaf guard ideal for use on ballasted roofs. For use with ProFlow and DuoDrain. Pipe size: 62 mm. ProGuard-BSG-70.Guidance for specification option: Stainless steel cylindrical leaf guard ideal for use on ballasted roofs. For use with ProFlow and DuoDrain. Pipe size: 70 mm. ProGuard-BSG-75.Guidance for specification option: Stainless steel cylindrical leaf guard ideal for use on ballasted roofs. For use with ProFlow and DuoDrain. Pipe size: 75 mm. ProGuard-BSG-80.Guidance for specification option: Stainless steel cylindrical leaf guard ideal for use on ballasted roofs. For use with ProFlow and DuoDrain. Pipe size: 80 mm. ProGuard-BSG-95.Guidance for specification option: Stainless steel cylindrical leaf guard ideal for use on ballasted roofs. For use with ProFlow and DuoDrain. Pipe size: 95 mm. ProGuard-BSG-110.Guidance for specification option: Stainless steel cylindrical leaf guard ideal for use on ballasted roofs. For use with ProFlow and DuoDrain. Pipe size: 110 mm. |
Spigots | Ø 40 mm. |
Colour/ Finish | Light grey. |
Flange | 350 x 350 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Literature

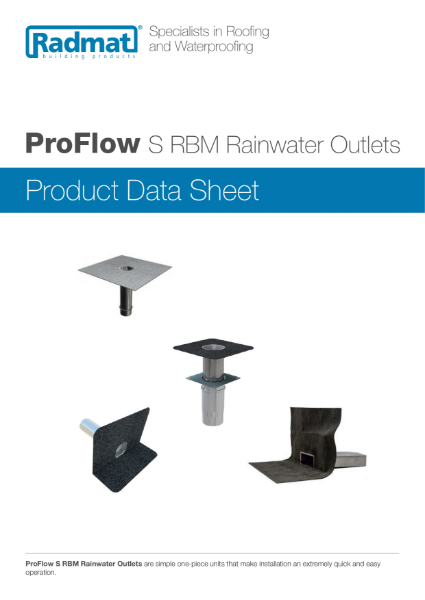

ProFlow S RBM RWO Product Data Sheet

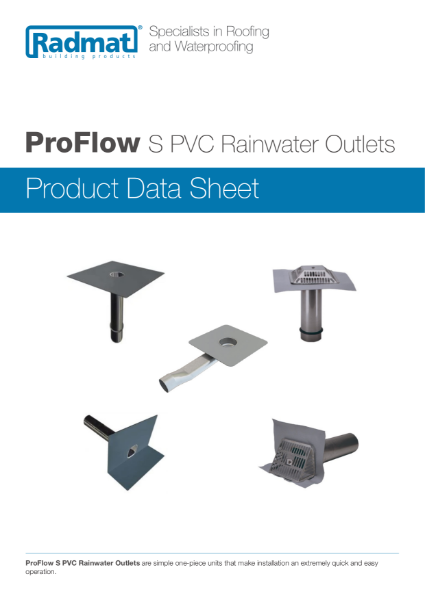

ProFlow S PVC RWO Product Data Sheet
