Profiles XL FireSmart Warm Roof System
Verified by manufacturer 3 months ago
Torch applied SBS modified bitumen membranes installed as part of a warm flat roof system incorporating Thermazone Torch On (PIR) insulation.
Application
Suitable for use in both new build and re-roofing projects.
Preparation:
- Consult manufacturer for details of the preparation and priming of the intended roof structure and substrate and for details of the requirements for preparation layers, venting layers, nailing layers and taping strips.
Description
Torch applied SBS modified bitumen membranes installed as part of a warm flat roof system incorporating Thermazone Torch On (PIR) insulation.
Features and benefits:
- BBA Certificated (07/4409 PS1 and PS5).
- The manufacturer offers a design and specification service (recommended that they are consulted early in the design process).
- Installed by IMA Contractor network.
- Supported by a System Guarantee up to 25 years.
General information
Color | Grey |
Material | Bitumen Guidance for specification option: Styrene butadiene styrene (SBS) modified. |
Shape | Other |
Warranty description | 25 year |
Uniclass | |
CAWS | J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering |
Specification data - Reinforced bitumen membrane warm roof covering systems
Classification data | |
System performance | BBA Certificated (07/4409 PS1 and PS5). |
Air and vapour control layer | |
Type | Profiles Vapour-Vent XL. Guidance for specification option: Thermically-activated, self-adhesive membrane. |
Attachment | Torch applied. |
Insulation | |
Type | Thermazone Torch On Insulation. |
Fixing | Adhered to heat activated surface of the VCL. |
Waterproof covering | |
Intermediate layer | |
Type | Profiles XL Sand. Profiles Vent XL. |
Attachment | Torch applied. |
Top layer | |
Type | Profiles XL FireSmart. |
Attachment | Torch applied. |
Primer | Siplast Primer. Icopal SA Primer. |
Colour | Grey. |
Underlay | Profiles XL Sand. Guidance for specification option: Torch applied membrane. TorchSafe TA Detailing Underlay. Guidance for specification option: Thermically-activated, self-adhesive membrane for combustible details. |
Capsheet | TorchSafe TA Mineral Capsheet. Guidance for specification option: Thermically-activated capsheet for combustible details. Profiles XL Mineral. Guidance for specification option: Torch applied capsheet. |
Sustainability data
Material | Bitumen Guidance for specification option: Styrene butadiene styrene (SBS) modified. |
Literature

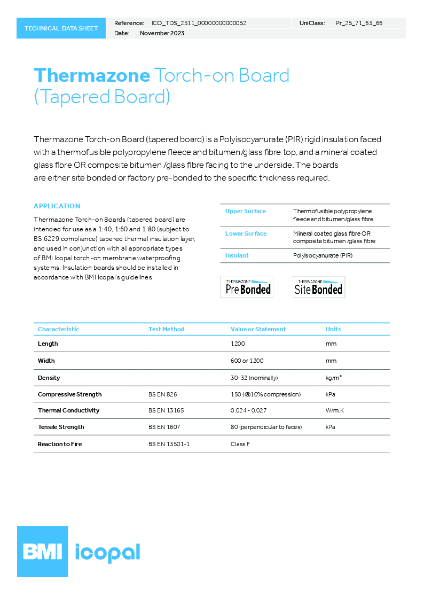

Thermazone Torch On Insulation (Tapered)
