Profiles XL FireSmart Plus System - Cold Roof / Heated / Partial Bond - System Number 15

Verified by manufacturer 3 months ago

BMI Group UK Ltd

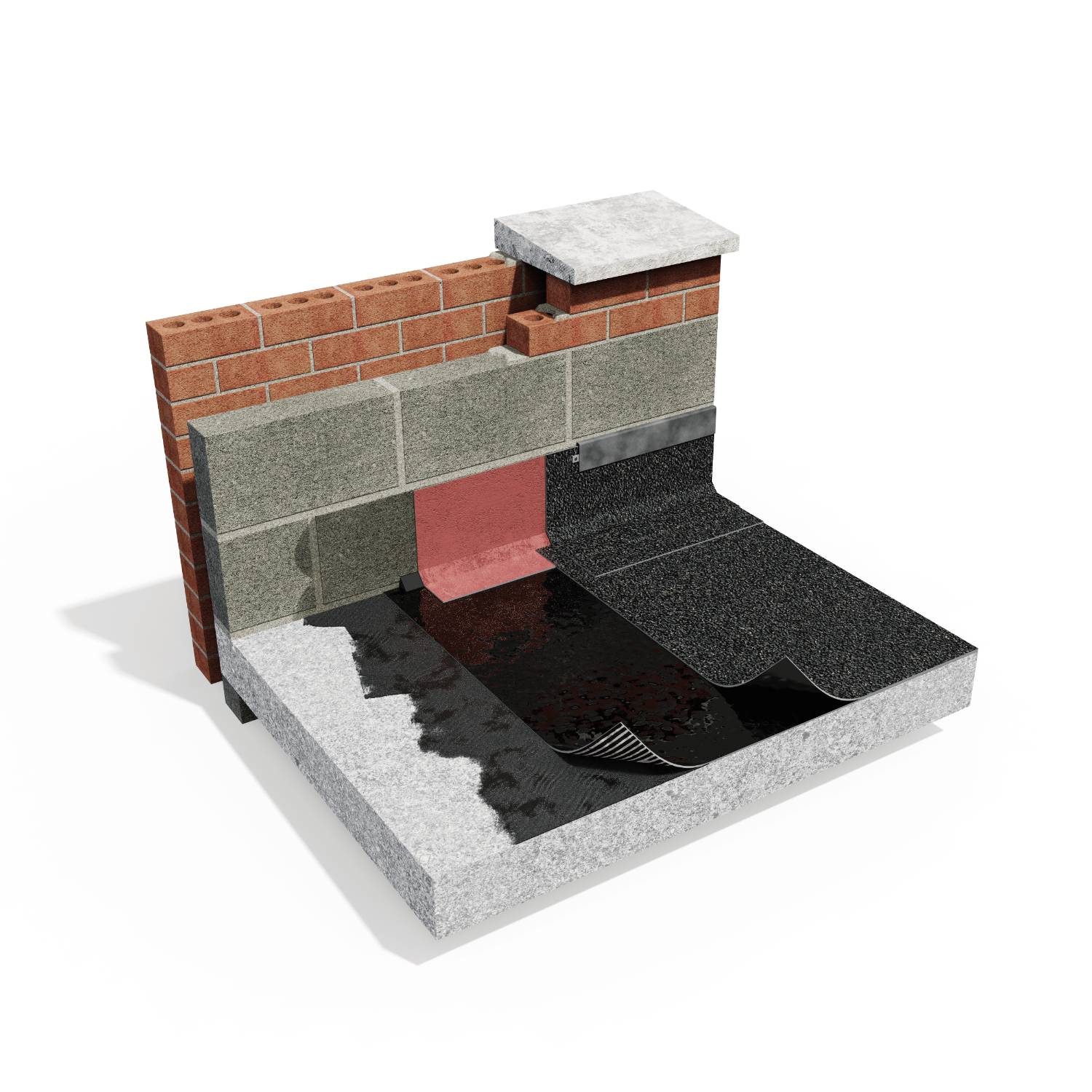

Reinforced bitumen membrane cold roof system based around the Profiles XL FireSmart Plus mineral capsheet.

Jump to:
+44 (0)1908 015760 Website

Application

Reinforced bitumen membrane cold roof system for use above non-combustible substrates in refurbishment and new build projects.

Description

Reinforced bitumen membrane cold roof system based around the Profiles XL FireSmart Plus mineral capsheet.


Features and benefits:

  • For use above non-combustible substrates in refurbishment or new build projects.
  • Wide range of accessories available.
  • Manufacturer offers a design and specification service (recommended that they are consulted early in the design process).
  • Part of a range of FireSmart based systems (others specified separately).

General information

Color

Grey

Guidance for specification option:

Charcoal or blue/grey.

Blue

Guidance for specification option:

Blue/ grey.

Green

Brown

Manufacturer guidance

To match field sheet, consult manufacturer for details.

Finish

Mineral

Material

Bitumen

Guidance for specification option:

Polyester reinforced styrene butadiene styrene (SBS) modified.

Manufacturer guidance

See specification for other materials.

Shape

Other

Length

Bespoke

Width

Bespoke

Warranty description

30 year

Uniclass

Ss_30_40_30_70 Reinforced bitumen membrane cold roof covering systemsPrimary

CAWS

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

J41/12 Reinforced bitumen membrane cold deck roof covering

Specification data - Reinforced bitumen membrane cold roof covering systems

Preparation

-

Horizontal work

Siplast Primer.

Guidance for specification option:

Low viscosity priming solution consisting of elastomeric bitumen and hydrocarbon solvent.

  • Colour: Black.
  • Coverage rate: 3–11 m² per litre.
  • To be applied by brush or roller.
  • Application rate: 0.1–0.3 L/m².
  • Application limits: 5–30°C.
  • Drying time: 1–3 hours.
  • Available in container sizes of 25 L.

Skirtings and vertical work

As Horizontal work.

Waterproof covering

-

First layer

-

Type

Profiles Vent XL.

Manufacturer guidance

Glass-reinforced, SBS-modified bitumen membrane with special

vapour control stripes.

  • Upper surface: Thermofusible film.
  • Lower surface: Silica sand with SBS-modified bitumen stripes with thermofusible PE film.
  • Material: SBS-modified bitumen.
  • Type of reinforcement: Glass fibre, 120 g/m².
  • Independently site and laboratory tested by the British Board of Agrément and awarded BBA certificate number 07/4409, Product Sheet 2.


Characteristics:

  • Length, to EN 1848-1: 7 m.
  • Width (including selvedge), to EN 1848-1: 1 m.
  • Straightness, to BS EN 1848-1: <20 mm/10m.
  • Mass per unit area, to BS EN 1849-1: 4.96 kg/m².
  • Effective thickness, to BS EN 1849-1: 3.6 mm.
  • Water tightness, to BS EN 1928 (B): Pass.
  • Tensile strength, to BS EN 12311-1: 950 N/50mm (MD); 850 N/50mm (TD).
  • Elongation, to BS EN 12311-1: 6% (MD); 6% (TD).
  • Dimensional stability, to BS EN 1107-1: ≤0.5%.
  • Flexibility at low temperature, to BS EN 1109: ≤-15°C.
  • Flow resistance at elevated temperature, to BS EN 1110: ≥90°C.


Consult manufacturer's literature for tolerances.

Attachment

Torch-applied.

Top layer

-

Type

Profiles XL FireSmart Plus Mineral Capsheet, charcoal.

Guidance for specification option:

Standard.

Profiles XL FireSmart Plus Mineral Capsheet, green.

Guidance for specification option:

Made to order, minimum order quantities may apply - consult manufacturer for details.

Profiles XL FireSmart Plus Mineral Capsheet, blue/ grey.

Guidance for specification option:

Made to order, minimum order quantities may apply - consult manufacturer for details.

Profiles XL FireSmart Plus Mineral Capsheet, brown.

Guidance for specification option:

Made to order, minimum order quantities may apply - consult manufacturer for details.

Manufacturer guidance

Polyester reinforced SBS-modified bitumen membrane with FireSmart fire retardant. For use as a torch-applied top sheet.

  • Upper surface: Mineral granules with thermofusible film to overlap selvedge.
  • Lower surface: Thermofusible PE film.
  • Material: SBS-modified bitumen.
  • Type of reinforcement: Polyester, 250 g/m².


Characteristics:

  • Length, to EN 1848-1: 5 m.
  • Width (including selvedge), to EN 1848-1: 1 m.
  • Mass per unit area, to BS EN 1849-1: 7.2 kg/m².
  • Effective thickness, to BS EN 1849-1: 5.5 mm.
  • Water tightness, to BS EN 1928 (B): Pass.
  • External fire performance, to EN 13501-5: BROOF(t4).
  • Tensile strength, to BS EN 12311-1: 900 N/50mm (MD/ TD).
  • Elongation, to BS EN 12311-1: 35% (MD/ TD).
  • Dimensional stability, to BS EN 1107-1: ≤0.5%.
  • Flexibility at low temperature, to BS EN 1109: ≤-20°C.
  • Flow resistance at elevated temperature, to BS EN 1110: >75°C.


Consult manufacturer's literature for tolerances.

Attachment

Torch-applied.

Detail work

-

Flashings

As Waterproof covering.

FormFlash lead-free roof flashing.

Guidance for specification option:

Insert requirements.

  • Roll length: 10 m; available in widths between 120 and 950 mm.
  • Lightweight, lead-free alternative for roof flashing. 50% lighter than Code 4 lead making it easier to handle and speedier to install.
  • FormFlash fixing clips included.
  • Smooth grey finish.

Not required.

Skirtings and upstands

Profiles XL Sand Underlay and Profiles XL FireSmart Plus Mineral Capsheet.

Not required.

Welted drips

As Waterproof covering.

Not required.

Cover strips

As Waterproof covering.

Not required.

System accessories

None.

Roofgard GRP Edge Trims.

Guidance for specification option:

A range of perimeter trims is available in sizes B50, B100 or B150, with match internal and external corners available throughout.

Consult manufacturer and insert requirements.

Roofgard Universal Outlets.

Guidance for specification option:

Insert requirements.

Standard sizes: 50, 62, 80, 90 or 145 mm.

Leaf grate also available.

Roofgard Parapet Outlet.

Guidance for specification option:

Roofing outlet that complements built up roof systems allowing drainage of the roof through the parapet to an external hopper.


Insert requirements: 100 mm outlet opening as standard. Leaf grate, 45° chute and extension also available.

Roofgard Cable & Pipe Duct.

Guidance for specification option:

Provides a weatherproof sleeve for cables or tubes that penetrate through a flat roof

Roofgard Universal Cowled Telescopic Vents.

Literature

Siplast Primer Technical Data Sheet

Siplast Primer Technical Data Sheet

Profiles Vent XL Technical Data Sheet

Profiles Vent XL Technical Data Sheet

Profiles XL FireSmart Plus Systems - NBS

Profiles XL FireSmart Plus Systems - NBS

Profiles XL FireSmart Plus Torch-on Mineral Capsheet Technical Data Sheet

Profiles XL FireSmart Plus Torch-on Mineral Capsheet Technical Data Sheet
