Fibre cement corrugated roof sheet with polypropylene reinforcement strips.
Suitable for livestock buildings, equestrian centres and agricultural storage.
A fibre cement corrugated roof sheet with polypropylene reinforcement strips inserted along precisely engineered locations that run along the length of the sheet.
Features and benefits:
ColorAvailable in 7 colours. | Brown Green Black Blue Grey |
Finish | Unfinished Natural grey. Painted Acrylic paint finish externally. |
Material | Fibre cement Fibre cement, P6 profiled sheeting. |
Shapecorrugated sheet | Rectangle |
Length | 1220 mm 1375 mm 1525 mm 1675 mm 1825 mm |
Width | 1086 mm |
Height | 47.6 mm Wave height |
WarrantyDescription | Profiled sheeting has a design life of at least 50 years when installed to our fixing instruction in typical climate, but the durability of the fixing accessories should be considered. |
Uniclass | |
CAWS | H30/10 Fibre cement H30/120 Fibre cement H30/110 Fibre cement |
Material | - |
Standard | To BS EN 494. |
Type | Fibre Cement. |
Breaking load class | To BS EN 494, 4250 N/m width.Clause 7.3.2.1. |
Bending moment class | To BS EN 494, 55 Nm/m.Clause 7.3.2.2. |
Profile | Corrugated wave. |
Pitch | 5° (minimum).Insert requirements. |
Fragility/ impact resistance | - |
Standard | To ACR[M]001:2014 Test For non-fragility of large element roofing assemblies. |
Requirement | Class C. |
LengthMaximum weight 17 kg/m². | 1220 mm.1375 mm.1525 mm.1675 mm.1825 mm.1975 mm.2125 mm.2275 mm.2440 mm.2600 mm.2750 mm.2900 mm.3050 mm. |
Cover width | 1016 mm.Sheet width (mm) with 146.5 mm wave width. |
Factory finish | Acrylic paint finish.For protection against environmental damage, contact the Eternit Technical department for advice. |
Colour | Black.Natural grey.Sherwood.Slate blue.Van dyke brown. |
Side edge treatment | 150 mm end laps (mitred) and 70 mm side laps (mitred where four sheets lap at corner position). |
Height(wave height): | 47.6 mm. 10% but not exceeding 0.6 mm to BS EN 494. |
Country of product manufacture | United Kingdom |
RecyclabilityFibre cement materials at the end of life can be recycled as cement clinker/hardcore. The reinforcing polypropylene strips would need to be stripped out prior to recycling. | - |
Eternit Profile 6 Choosing and Using guide
Eternit - Agrisheet GRP Rooflight Data Sheet
Eternit - Cleaning Profiled Sheeting
Eternit - Damp Patches Data Sheet
Eternit - Efflorescence Data Sheet
Eternit - Farmlite GRP Rooflight Data Sheet
Eternit - Material Data Sheet - Advantages of Fibre Cement (Asbestos)
Eternit – Material Information Data Sheet
Eternit - Product Authority Data Sheet
Eternit - Solar Panels
Eternit - Variances of Profiled Sheeting
BS EN ISO 14001:2015
BS EN ISO 9001:2015
Etex - Meldreth OHSMS 45001:2018 Certificate Sept21

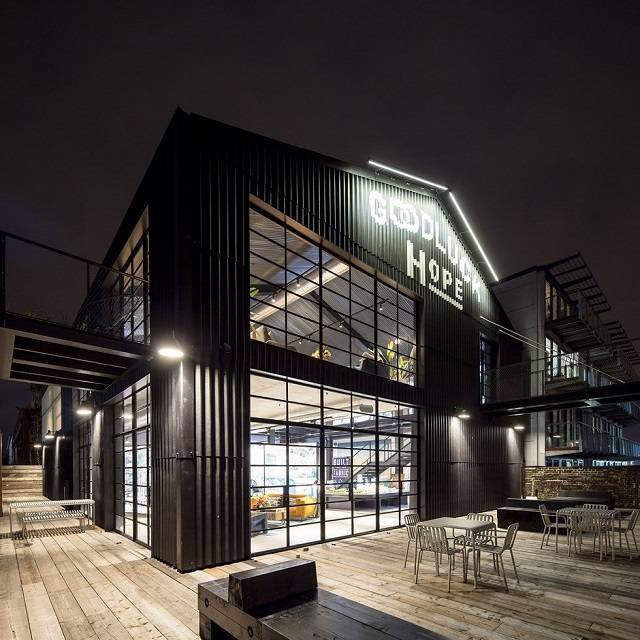

Goodluck Hope Gallery
