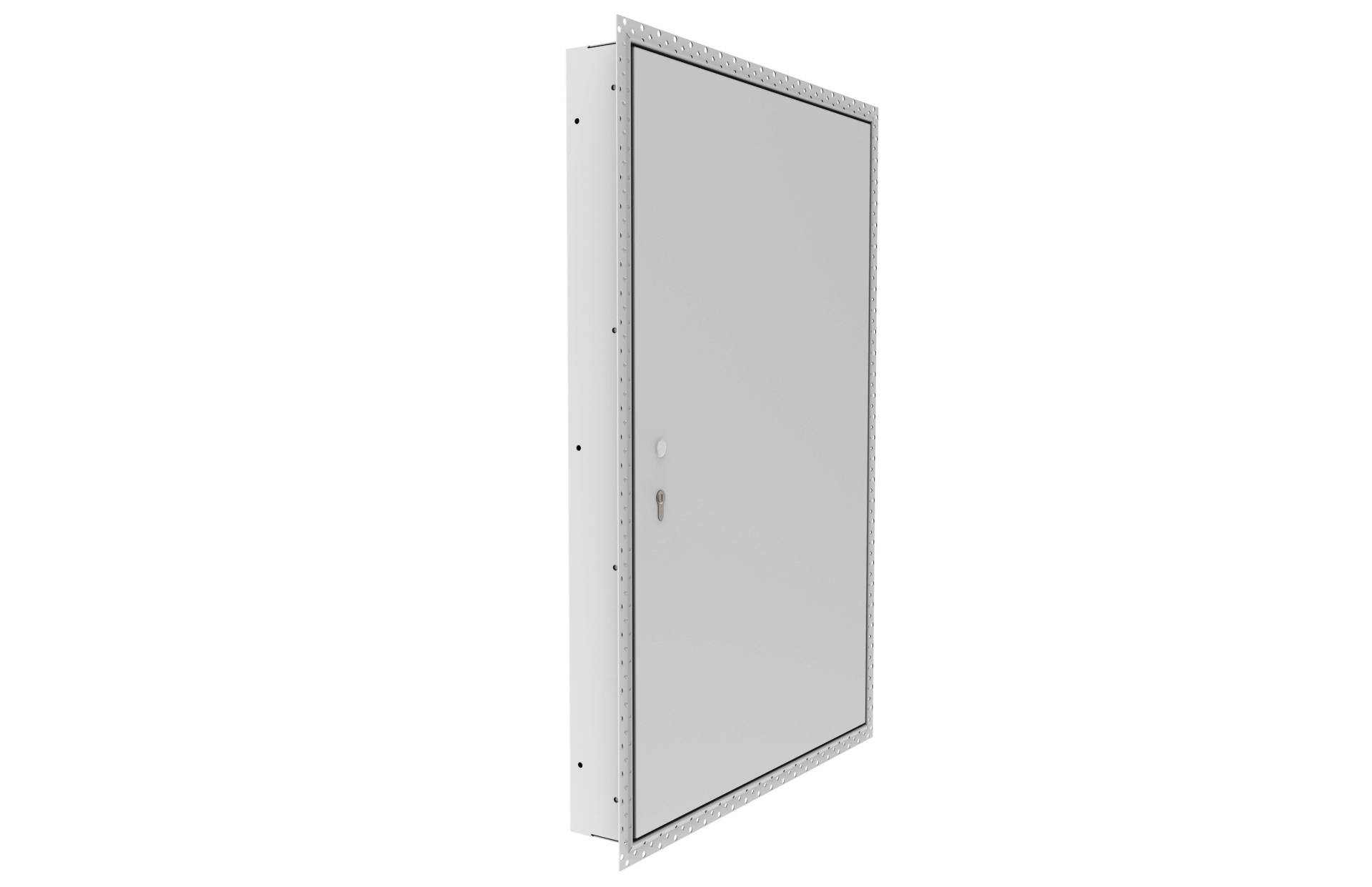

INTEGRA 4000 Single Door - Access Panel

INTEGRA 4000 Single Door - Access Panel

Profab Access Ltd Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Steel lockable access panel that provides one hour fire resistance for jointless plaster/ plasterboard and masonry walls and partitions.

Jump to:
+44 (0)1827 718222 www.profabaccess.com

Application

Suitable for riser, duct, and pod access applications for jointless plasterboard or plaster and masonry walls where maximum performance is required.

Description

Steel lockable access panel that provides one hour fire resistance for jointless plaster/plasterboard and masonry walls and partitions.


Features and benefits:

  • The 4000 series range of fire rated riser doors is suitable for riser, duct, and pod access applications for jointless plasterboard/ plaster and masonry walls where maximum performance is required.
  • Doors are supplied with a powder coated RAL 9010 primer finish, which can be over painted with any standard emulsion. This means that they blend in perfectly with the surrounding wall to give a flush, clean finish.
  • Designed for ease of installation, and with excellent fire and acoustic performance as standard, the 4000 series is a perfect alternative to conventional timber door/ architrave access.
  • The doors are manufactured to order, and come in single (SD), double (DD), and multiple door (CA) configurations.
  • Dust gasket to all sides, Slim sandwich panel door.
  • Fire tested to BS EN 1634-1:2000.
  • Third party fire certification through the CERTIFIRE scheme.
  • UL rated.
  • Up to four hours fire protection.
  • Rw35dB acoustic performance as standard (acoustic upgrades available).
  • Smoke sealed to BS 476: part 31:1.
  • 1.2 mm Zintec steel door leaf.
  • 1.5 mm Zintec steel heavy duty box section frame.
  • 3 point locking mechanism with optional high security europrofile cylinder.
  • Full length concealed piano hinge.
  • Powder coated RAL 9010 matt.
  • Optional safety rails, tested to BS6180:2011.

General information

Color

White

Finish

Matt

Material

Carbon steel

Shape

Rectangular

Size

Insert requirements (structural opening width x height).

Uniclass 2015

Pr_30_59_36_01 Access panelsPrimary

CAWS

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/145 Wall lining system (metal studs)

K10/15 Lining on timber

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/215 Suspended ceiling system

K10/220 Proprietary suspended ceiling system

K10/25 lining on timber . . . . . .

K10/30 Metal stud

K10/430 Access panels

K10/50 Suspended ceiling system on metal framing

L20/630 Hatches

Specification data - Access panels Enhanced data

Fire resistance

Non fire rated (NFR).

1 hour fire rated (1FR).

2 hour fire rated (2FR).

4 hour fire rated (4FR).

CERTIFIRE.

The CERTIFIRE third party accreditation scheme ensures correct manufacturing processes are adhered to, and gives assurance of performance, quality, reliability and traceability.

UL certified (UFR).

UL certification available.

Reaction to fire classification

To BS EN 1634-1:2000.

Position

Wall mounted.

Size

1250 x 3100 mm.

Maximum size. 2 hour rated.

990 x 2390 mm.

Maximum size. 4 hour rated.

Frame

Beaded frame (BF).

For installation into unfinished walls . Tape and jointed or plaster skimmed over to give a frameless finish.

Picture frame (PF).

With visible 25 mm architrave for installation into finished walls.

Dutch fold frame (DFF).

Straight edge detail for positioning directly onto a floor and/or into a corner.

Deep plaster frame (DPF).

13 mm deep frame profile for two coat plaster or render finishes.

Panel

-

Material

Zintec steel.

1.2 mm Zintec steel door leaf.

Integral finish

Powder-coated matt.

Powder coated RAL 9010 matt. Can be overpainted on site to match surrounding area..

Latch or lock type

3 point budget lock (3PL).

High security lock (3HS).

Operation

Full length concealed piano hinge.

Integral accessories

Smoke seals and dust gasket to frame.

Product Reference

4000 Series Riser Door

Configuration

Single door (SD).

Double door (DD).

Triple door (3D).

Quad door (4D).

Multiple doors (CA).

AcousticRating

To BS EN ISO 140-3.

None.

35 dB.

As standard.

42 dB.

44 dB.

FrameDepth

90 mm.

90 mm deep rebated frame with smoke seals.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

3

2.0
IFC
-

3

2.0
Download now from NBS National BIM Library

Third party certifications

  • TBC
  • Underwriters Laboratories Inc. (UL): : certificate no. R25149
