Certifire Certificate
Certificate type
Quick release, light weight riser doors ideal for student accommodation, care homes and hotels.
Suitable for use within student accommodation halls, care homes and hotels.
Quick release, lightweight single riser door suitable for student accommodation, care homes and hotels.
Features and benefits:
Applications:
Suitable for use within student accommodation halls, care homes and hotels.
Size | As drawing Insert reference. As schedule Insert reference. |
Color | Powder coated matt RAL9010 |
Features | Left or right handed, frame options to suit finishing requirements, intumescent smoke seals, quick release pivot hinge with retractable flush bolt |
Finish | Powder coated matt RAL9010 |
Material | Electro-galvanised mild steel |
Shape | Rectangular |
WarrantyDescription | 5 years |
Uniclass 2015 | |
CAWS | K10/115 Metal stud partition system K10/125 Metal stud partition system K10/145 Wall lining system (metal studs) K10/15 Lining on timber K10/155 Wall lining system (metal studs) K10/165 Wall lining system (metal framing) K10/215 Suspended ceiling system K10/220 Proprietary suspended ceiling system K10/25 Lining on timber framed ceilings K10/30 Metal stud K10/430 Access panels K10/50 Suspended ceiling on metal framing L20/630 Hatches |

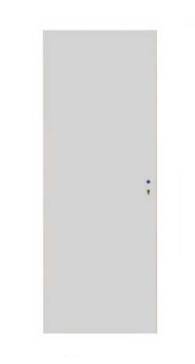

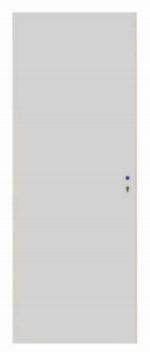

Product Reference | 1500 Series Riser Door - Single |
Size | As drawingInsert reference. As scheduleInsert reference. |
Colour | RAL 9010Standard, matt. Special orderInsert RAL colour requirement. |
FrameType | Beaded frame (BF)Suitable for tape and jointing/ skimming. Picture frame (PF)Suitable for retrofitting/ finished areas. Dutch fold frame (DFF)Suitable for masonry/ blockwork. |
Lock | - |
Lock type | Three-point lock (3PL)Three-point high security lock (3HS) |
Collar | Stainless steelWhite plasticStandard. |
Standard product features | Configuration: Single door. Core material: Rockwool. Finish: Powder coated. Weight (including frame): 17.5 kg/m². Fire rating: Up to 120 minutes. Acoustic rating: 31 dB. |
Product Options | Lock type: - Three-point lock (3PL):
- Three-point high security lock (3HS):
|
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | - | 1 | 2.1 |
![]() | - | 1 | 2.1 |
