Profab 1000 PD - Plasterboard access panel

Name: Profab 1000 PD - Plasterboard access panel
Brand: piDNJWgchx2oJcLAgM7L2G
SKU: gbqPKZ7k3Sv9hY8byQbjAS

Profab Access Ltd

Plasterboard access panels for ceiling and walls.

Jump to:

+44 (0)1827 718222 www.profabaccess.com

Description

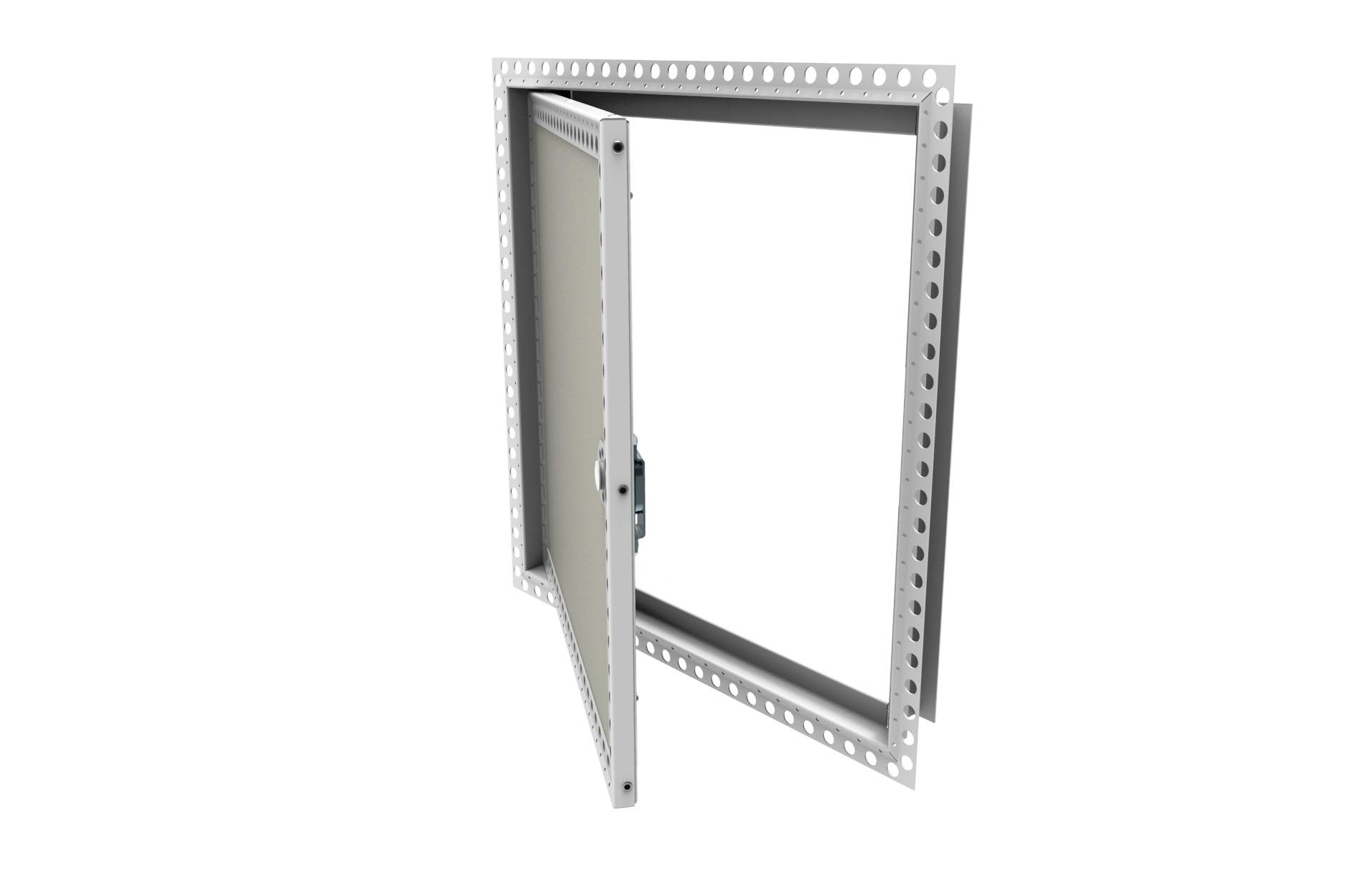

The 1000PD series range of steel lockable access panels provides access into jointless plaster/ plasterboard ceilings, where access to mechanical and electrical services is required.

The metal frame holds a plasterboard faced door through a pivot hinge system. The door is held closed with a concealed budget lock (BL) which opens towards the user. The pivot hinge system allows the door to be removed during installation or if damage occurs. Panels are skim plastered and decorated on site to match the colour/texture of the adjacent finish. A constant 2 mm gap is maintained between the door and frame by the dome location system.

Doors are removable if damage occurs or during installation. Panels with simulated dry wall beaded frames (BF) are then decorated on site to match the colour/texture of the adjacent finish.

Suitable for use internally and only in areas of normal humidity. 1000/BF/PD/BL can be used horizontally where the panel is being installed prior to any tape and jointing or skim-coat plastering.

Customization of the access panel may be possible including alterative sizes, lock and paint colours, consult manufacturer for details.

General information

Size	450 x 450 mm 600 x 600 mm 600 x 1200 mm
Color	White
Features	Foam dust gasket to all sides of door
Uniclass 2015	Pr_30_59_36_01 Access panelsPrimary
CAWS	K10/115 Metal stud partition system K10/125 Metal stud partition system K10/145 Wall lining system (metal studs) K10/15 Lining on timber K10/155 Wall lining system (metal studs) K10/165 Wall lining system (metal framing) K10/215 Suspended ceiling system K10/220 Proprietary suspended ceiling system K10/25 Lining on timber framed ceilings K10/30 Metal stud K10/430 Access panels K10/50 Suspended ceiling on metal framing L20/630 Hatches

Specification data - Access panels

Product Reference

1000/BF/PD/BL

1000/PF/PD/BL

AC1000/BF/PD/BL

AC1000/PF/PD/BL

Size

450 x 450 mm

600 x 600 mm

600 x 1200 mm

Standard product features

Frame depth:

Overall frame depth is 34 mm (an additional 7 mm at localised budget lock location).

Product Options

Product reference:

- 1000/BF/PD/BL:

Frame: 1.2 mm thick, electro-galvanized carbon steel, incorporating a simulated edge bead profile. Factory welded to specified size and finished white powder coated primer.

Door: 1.2 mm thick, electro-galvanized carbon steel frame finished etch white primer and enclosing 9.5 mm standard plasterboard infill, operated from front face with an 8 mm square key (included). Includes foam strip to prevent any rattle. A white round removable cap on the door face conceals the keyhole.

- 1000/PF/PD/BL:

As above except for picture frame (replacing beaded frame).

AC1000/BF/PD/BL and AC1000/PF/PD/BL:

Acoustic versions of the above access panel, which include acoustic gasket update and mineral wool door infill. Sound insulation: 30 Rw dB.

The acoustic panels have been tested in accordance with BS EN ISO 140-3 at a UKAS accredited facility.

A range of access panels to suit sound absorbent ceilings, such as Rigitone or Gyptone are available, along with a bespoke design service. Consult manufacturer for details.

Size:

1000 series panels are available in sizes 200 x 200 up to a maximum of 600 x 1200 mm. Consult manufacturer for details. Dimensions given are outside rear frame.
