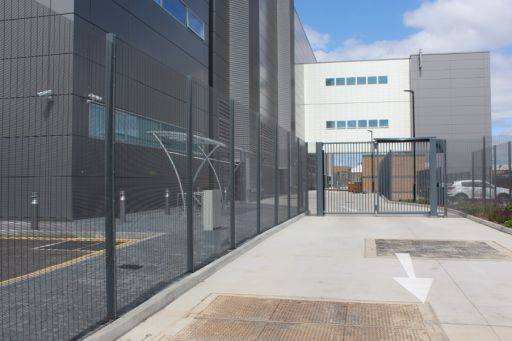

Pro-sure 358 Fencing
Description

Pro-sure is for high security applications, though is often used for lower security
applications for peace of mind.

The mesh is a 75 x 12.5 x 4 mm fabric (commonly termed 358 mesh) and these very small apertures mean it’s not possible to get a finger or toe hold for climbing, or get access with a cutting tool. A range of heights is available of up to 6 metres, posts are hollow steel sections with the mesh overlapped and secured with full length clamp bars and security fixings. 358 fencing mesh panels are galvanised and can be polyester coated in a wide range of standard RAL colours, with non-standard colours being available upon request.

General information
Color

PPC to customers requirements

Features

Anti-tamper fixings

Finish

Hot dip Galvanised to BS EN ISO 1461:2009 and polyester coated to a range of RAL colours

Material

Mild Steel

Size

2000x2500mm

Uniclass 2015
Ss_25_14_67_51 Metal mesh panel fencing systemsPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 1 1.3
Revit
Revit 2016 3 2.0
Download now from NBS National BIM Library
