Pro R1 Membrane
Verified by manufacturer 4 months ago
Machine direction (MD)
Machine direction (MD)
Radon barrier
Application
For use on sites with radon gas.
Description

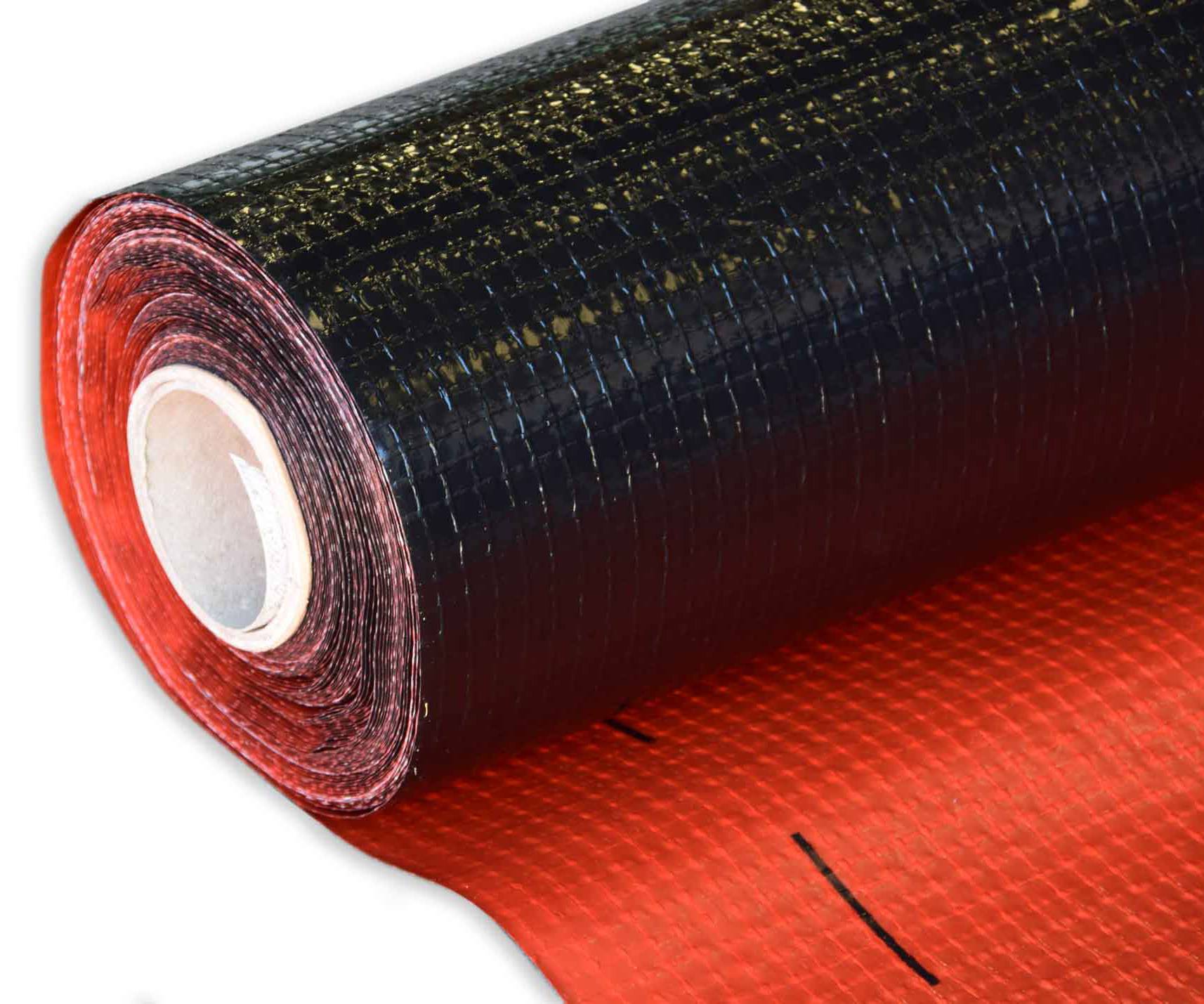

A flexible, loose-laid gas barrier for use on sites with radon gas.
The barrier incorporates a three-layer low density polyethylene membrane with a polypropylene reinforcement grid. The membrane is extremely flexible for ease of installation and robust to cope with site conditions.
Features and benefits:
- Resistant to radon gas.
- Protects against water and water vapour, acting as a damp-proof membrane (DPM).
- High resistance to tearing.
- Can be laid on sand blinding, Delta Protech Geotextile Protection fleece or a smooth concrete finish.
- Can be patch repaired.
- Laps can be joined together either by using a 50 mm Delta Gas Barrier butyl tape or welding by on-site contractors.
- CE-marked and BBA-certified.
General information
Color | Red Grey Manufacturer guidanceRed topside with grey underside. Other colours are available. Consult manufacturer for details. |
Material | Polyethylene |
Length | 50000 mm |
Width | 3000 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | D21/350 Gas-retardant membrane F30/360 Gas-resistant damp-proof courses/ cavity trays F30/54 Gas-resistant dpcs/ cavity trays J40/120 Loose-laid plastics or rubber sheet damp-proofing J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes J40/145 Loose-laid weldable polyethylene gas-retardant membranes J40/35 Loose-laid plastics or rubber gas-retardant membranes |
Specification data - Plastics sheets
Material | Polypropylene. |
Purpose | Damp-proof membrane. |
Third-party certification | CE-marked and BBA-certified. |
Performance characteristics | |
Tensile strength (minimum) | 500 N/50 mm.Guidance for specification option: Maximum tensile strength. |
Tear resistance | 400.Guidance for specification option: Nail Tear Resistance. |
Elongation to break | 15. |
Physical properties | |
Colour | Red topside with grey underside.Manufacturer guidanceOther colours are available. Consult manufacturer for details. |
Dimensions | |
Thickness (minimum) | 0.5 mm. |
Width (minimum) | 2 m.3 m. |
Roll length (minimum) | 50 m. |
Permeability | Manufacturer guidance
|
Sustainability data
Contains Red List materials | No |
Material | Polyethylene |
Recyclability | No |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

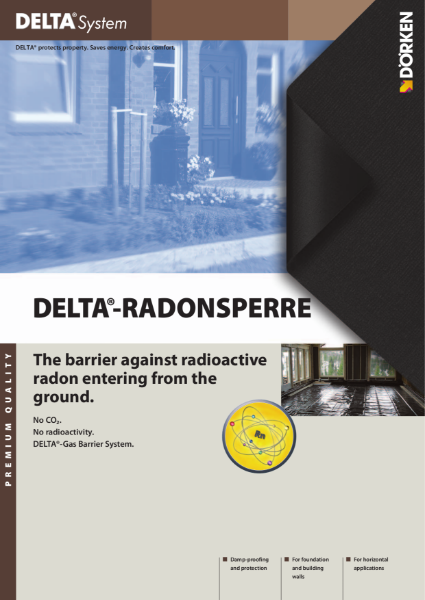

Delta-Gas Barrier System

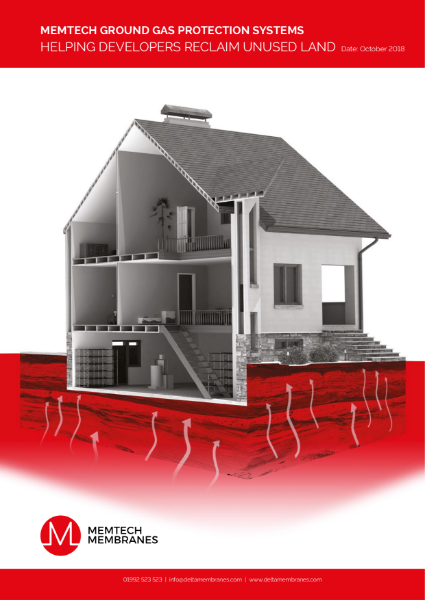

MemTech Ground Gas Protection

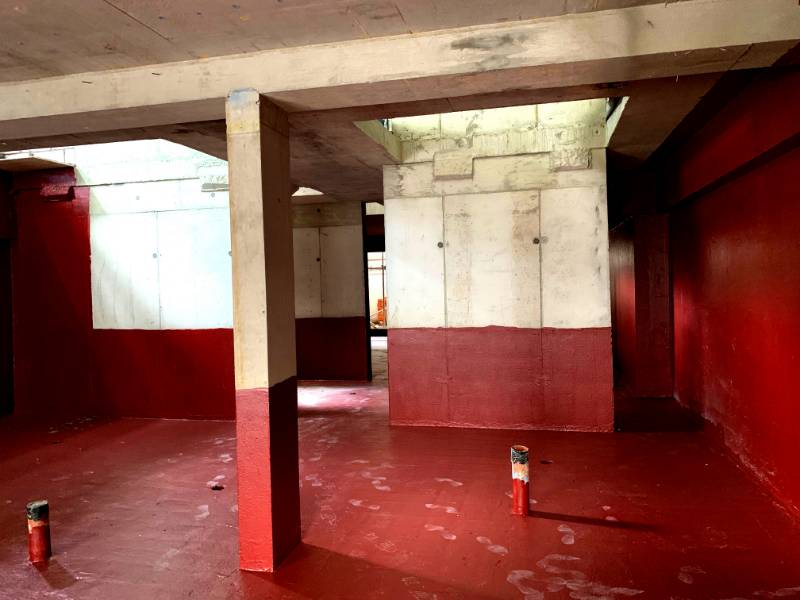

Case studies
Structural Waterproofing & Ground Gas Protection
Structural Waterproofing and gas proofing using membranes (twin solutions)
