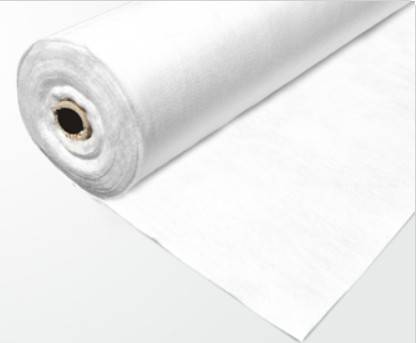

Pro-Living® Bio-Solar Filter Fleece - Bio-Solar Green Roof Component
Verified by manufacturer 3 days ago
Strong, flexible geotextile filtration membrane for green roofs, providing particle filtration and separation between substrate and pebble strips.
Application
Suitable for use on extensive and bio-diverse roofs with the following waterproofing membranes: Cold Melt®, Proteus Hot Melt®, Pro-BW® Plus, Pro-BW® LO, Proteus Pro-Felt® Ultima Plus Anit-Root Capsheet.
For installation above the Pro-Living® Bio-Solar Drainage Board.
Description
Pro-Living® Bio-Solar Filter Fleece is a strong, flexible, and permeable geotextile filtration membrane used on green roofs between the drainage and substrate layers for areas with increased loads. It provides filtration of particles from the substrate and acts as a separation between pebble strips and the substrate.
Features and benefits:
- Robustness class GRC3.
- Suitable for use with a wide range of waterproofing membranes.
Should be installed in accordance with the requirements of BS 6229, BS 8217, BS 8000-0 and BS 8000-4.
Consult manufacturer/ literature for installation guidelines.
General information
Color | White |
Material | Polypropylene |
Shape | Rectangle |
Length | 9000 mm |
Width | 2000 mm |
Height | 1.20 mm |
Warranty description | Other Guidance for specification option: Defects arising from lack of maintenance or abnormal use may fall outside of the cover of the Proteus Waterproofing guarantee. |
Uniclass | |
CAWS | Q37/360 Filter membrane |
Specification data - Plastics sheets
Classification data | |
Product reference | Pro-Living® Bio-Solar Filter Fleece. |
Material | Polypropylene. |
Purpose | Fleece. |
Performance characteristics | |
Tensile strength (minimum) | To EN ISO 10319, longitudinal: 10.5 kN/m; lateral: 10 kN/m. |
Elongation to break | To EN ISO 10319, longitudinal: 75%; lateral: 65%. |
Physical properties | |
Colour | White. |
Weight (minimum) | 150 g/m². |
Dimensions | |
Thickness (minimum) | 1.2 mm. |
Width (minimum) | 2 m. |
Roll length (minimum) | 90 m. |
Puncture resistance | To EN ISO 12236, 1700 N. |
Water vapour permeability | To EN ISO 11058, 90 L/(s·m²). Manufacturer guidanceVertical water vapour permeability. |
Filtration | To EN ISO 12956, 0.06 ≤ gew. O₉₀ ≤0.2 mm. Manufacturer guidanceMechanical filter efficiency. |
Sustainability data
Material | Polypropylene |
Literature

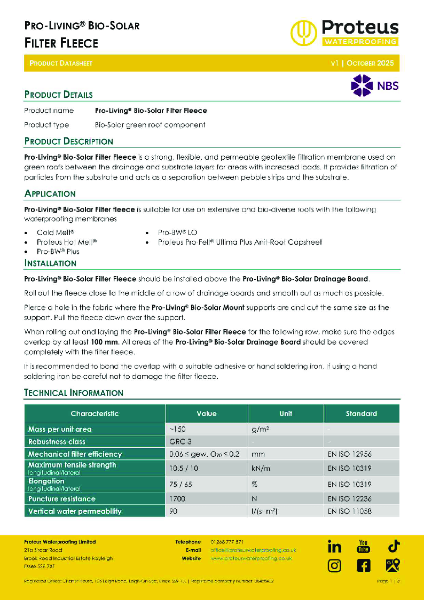

Product Data Sheet - Pro-Living® Bio-Solar Filter Fleece
