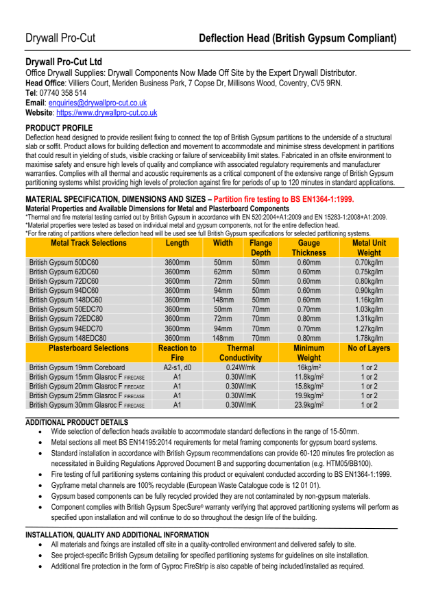

British Gypsum 50DC60
Deflection head designed to provide resilient fixing to connect the top of British Gypsum partitions to the underside of a structural slab or soffit.
Deflection head designed to provide resilient fixing to connect the top of British Gypsum partitions to the underside of a structural slab or soffit. Product allows for building deflection and movement to accommodate and minimize stress development in partitions that could result in yielding of studs, visible cracking or failure of serviceability limit states.
Fabricated in an offsite environment to maximize safety and ensure high levels of quality and compliance with associated regulatory requirements and manufacturer warranties. Complies with all thermal and acoustic requirements as a critical component of the extensive range of British Gypsum partitioning systems whilst providing high levels of protection against fire for periods of up to 120 minutes in standard applications.
Features and benefits:
Color | Silver White |
Material | Metal Gypsum Plasterboard |
Shape | Rectangle |
Length | 3600 mm |
Width | 50 mm 62 mm 72 mm 94 mm 148 mm |
Height | 60 mm 70 mm 80 mm |
Warranty description | Other Guidance for specification option: Component complies with British Gypsum SpecSure® warranty verifying that approved partitioning systems will perform as specified upon installation and will continue to do so throughout the design life of the building. |
Uniclass | |
CAWS | K10/30 Metal stud K10/125 Metal stud partition system |
Framing | British Gypsum 50DC60.Manufacturer guidanceMetal Track Selections. |
Resilient layer | Not required.Resilient bar one side.Resilient bar two sides. |
Fire separation | |
Cavity fire barriers | Not required.Gyproc Firestrip.Guidance for specification option:
|
Linings | British Gypsum 19 mm Coreboard one layer.Guidance for specification option:
British Gypsum 15 mm Glasroc F FIRECASE one layer.Guidance for specification option:
British Gypsum 20 mm Glasroc F FIRECASE one layer.Guidance for specification option:
British Gypsum 25 mm Glasroc F FIRECASE one layer.Guidance for specification option:
British Gypsum 30 mm Glasroc F FIRECASE one layer.Guidance for specification option:
British Gypsum 19 mm Coreboard two layers.Guidance for specification option:
British Gypsum 15 mm Glasroc F FIRECASE two layers.Guidance for specification option:
British Gypsum 20 mm Glasroc F FIRECASE two layers.Guidance for specification option:
British Gypsum 25 mm Glasroc F FIRECASE two layers.Guidance for specification option:
British Gypsum 30 mm Glasroc F FIRECASE two layers.Guidance for specification option:
|
Fasteners | British Gypsum compliant fixings.Guidance for specification option: To required penetration. |
Joint treatment | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Finish | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
System accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Length | 3600 mm. |
Width | 50 mm. |
FlangeDepth | 50 mm. |
Gauge | 0.60 mm. Manufacturer guidanceGauge thickness. |
Unit weight | 0.70 kg/Lm. Manufacturer guidanceMetal unit weight. |
Recyclability | Guidance for specification option:
|
