Pro-Bed HS Bulk: Bedding Mortar
Verified by manufacturer 1 month ago
EPD
Certificate type
Bedding mortar.
Application
- The product provides a perfect bound base for natural stone paving and cobbles, concrete paving, flags and block paving, which once laid with UltraScape Pro-Bed HS ECO are able to accept foot traffic after just 12 hours and vehicular traffic after 24 hours.
- The material is also not subject to environmental erosion, which can lead to increased point loads on slabs and consequent breakage.
Description

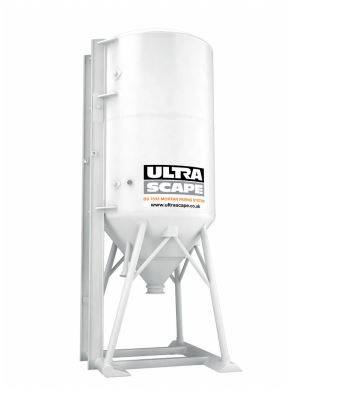

UltraScape Pro-Bed HS is formulated from selected cements and graded fillers. The pre-blended fine bedding concrete is supplied in 25 kg bags or alternatively, for those large projects, in 30 tonne bulk silos. The product can be laid from 10–75 mm in one pass with greater depths achievable using successive layers. The material mixes easily on-site with the addition of water and provides a compressive strength of 38 N/mm² after 28 days complying fully with BS 7533. This material should not be used in temperatures below 5°C.
Features and benefits:
- Can be laid from 10–75 mm in one pass.
- Shrinkage compensated.
- BS 7533 compliant.
- Small contractor friendly units.
- Bulk silos for larger projects.
- Pre-blended - just add water.
- Open to pedestrian traffic in 12 hours.
- Open to vehicular traffic in 24 hours.
- Long-term durability.
General information
Color | Grey Guidance for specification option: As with all raw materials, colour variation may occur. Please note that this does not affect the consistency or characteristics of the enclosed product. |
Material | Cement Guidance for specification option: UltraScape Pro-Bed HS is formulated from selected cements and graded fillers. |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | R12/446 Sealing for concrete manholes – mortar Q24/385 Mortar bedded Q10/545 Proprietary bedding Q10/200 Special Q10/180 Drainage channel systems with gratings Q10/170 Linear slot drainage channel systems Q10/150 Concrete block Q10/130 Clay brick Q10/125 Reclaimed stone Q10/120 Stone Q10/112 Precast concrete M40/115 Natural stone covering to F31/40 Laying E10/185 Pre-blended concrete Q25/445 Ready-mixed fine concrete |
Specification data - Fine bedding concretes
Standard/ performance requirements | To BS 7533. |
Consistency | Moist mix. |
Delivery condition | Bagged. Guidance for specification option: At 25 kg bag. Silo. Guidance for specification option: 30 tonne bulk silo. |
Coverage | 17.8 m². Guidance for specification option: Per tonne at 30 mm depth. |
Density | 2088 kg/m³. |
Compressive strength – 1 day | 20 N/mm². |
Compressive strength – 7 days | 36 N/mm². |
Compressive strength – 28 days | 38 N/mm². |
Flexural strength | 6.5–7.5 N/mm². Guidance for specification option: 7 days — 28 days. |
Adhesion | 1.25 N/mm². Guidance for specification option: Without primer at 28 days. 1 day - 0.72 N/mm². 7 days - 0.96 N/mm². 2.18 N/mm². Guidance for specification option: With primer at 28 days. 1 days - 1.73 N/mm². 7 days - 2.02 N/mm². |
Shrinkage | 0.09%. Guidance for specification option: At 28 days. 1 day - 0.01%. 7 days 0.04%. |
Modulus of elasticity | < 21 500 N/mm². |
Workability | 50 minutes at 20°C. |
Colour: | Grey. Guidance for specification option: As with all raw materials, colour variation may occur. Please note that this does not affect the consistency or characteristics of the enclosed product. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Cement Guidance for specification option: UltraScape Pro-Bed HS is formulated from selected cements and graded fillers. |
Third party certifications
Third party certifications
EPD
Pro-Bed HS Bulk Environmental Product Declaration
Literature
Pro-Bed HS Bulk Datasheet
