Privacy Indicator Bolts
Description

Allgood PLC offer a range of bathroom turn and release indicators.

Features and benefits:

  • The products are mounted on a rose and are available in a wide variety of designs and finishes.
  • Certain items listed have been Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors - see each product code for details.

General information

Finish

BF

Simulated bronze; 771Q2529/ 771Q2529NI/ 771Q2530/ 771Q2530NI only

MP

Modric polished etched and anodized aluminium; 771Q2531/ 779Q/ 786Q only.

PS

Polished stainless steel; 771Q2529/ 771Q2529NI/ 771Q2530/ 771Q2530NI/ 771Q2531/ 771Q2532/ 779Q/ 786Q/ 97874.

SA

Satin aluminium; 97873/ 97874 only.

SS

771/2570/ 771/2579/ 771Q2538/ 771Q2538NI/ 771Q2539/ 771Q2539NI.771Q2529/ 771Q2529NI/ 771Q2530/ 771Q2530NI/ 771Q2531/ 771Q2532/ 779Q/ 786Q/ 97873/ 97874.

Uniclass 2015

Pr_30_36_08_26 Door privacy indicator boltsPrimary

CAWS

P21/36 Privacy indicator bolts

P21/586 Privacy indicator bolts

Specification data - Door privacy indicator bolts

Product Reference

771Q2529

Modric WC turn and emergency release indicator set.

771Q2529NI

Modric WC turn and emergency release set without indicator.

771Q2530

Modric disabled WC turn and emergency release indicator set.

771Q2530NI

Modric disabled WC turn and emergency release set without indicator.

771Q2531

Sembla WC turn.

771Q2532

Sembla WC turn.

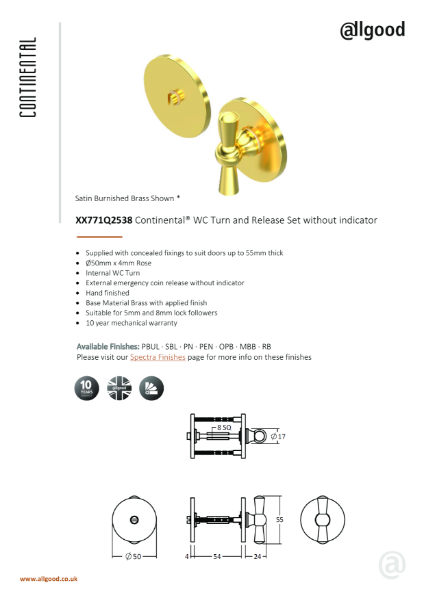

771Q2538

Holt WC turn and emergency release indicator set.

771Q2538NI

Holt WC turn and emergency release set without indicator.

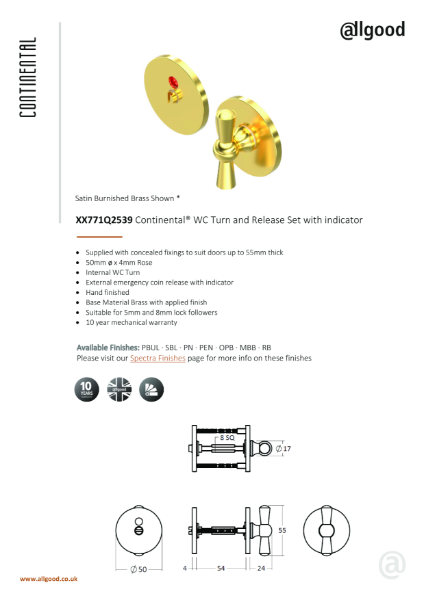

771Q2539

Holt disabled WC turn and emergency release indicator set.

771Q2539NI

Holt disabled WC turn and emergency release set without indicator.

771/2570

771/2570 - Modric disabled WC turn and emergency release indicator set.

771/2579

Modric WC turn and emergency release indicator set.

779Q

Modric emergency release and indicator rose.

786Q

Modric emergency release rose.

97873

Alite WC turn and emergency release indicator set.

97874

Alite disabled WC turn and emergency release indicator set.

Finish

BF

Simulated bronze; 771Q2529/ 771Q2529NI/ 771Q2530/ 771Q2530NI only

MP

Modric polished etched and anodized aluminium; 771Q2531/ 779Q/ 786Q only.

PS

Polished stainless steel; 771Q2529/ 771Q2529NI/ 771Q2530/ 771Q2530NI/ 771Q2531/ 771Q2532/ 779Q/ 786Q/ 97874.

SA

Satin aluminium; 97873/ 97874 only.

SS

771/2570/ 771/2579/ 771Q2538/ 771Q2538NI/ 771Q2539/ 771Q2539NI.771Q2529/ 771Q2529NI/ 771Q2530/ 771Q2530NI/ 771Q2531/ 771Q2532/ 779Q/ 786Q/ 97873/ 97874.

Product Options

Product reference:

- 771Q2529:

  • Modric WC turn and emergency release indicator set.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 316 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Hand finished.
  • Ten-year warranty.

- 771Q2529NI:

  • Modric WC turn and emergency release set without indicator.
  • Emergency release only – no external indicator.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 316 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Hand finished.
  • Ten-year warranty.

- 771Q2530:

  • Modric disabled WC turn and emergency release indicator set.
  • Large thumbturn for disabled use.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 316 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Hand finished.
  • Ten-year warranty.

- 771Q2530NI:

  • Modric Disabled WC Turn and Emergency Release Set without Indicator.
  • Large thumbturn for disabled use.
  • Emergency release only – no external indicator.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 316 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Hand finished.
  • Ten-year warranty.

- 771Q2531:

  • Sembla WC turn.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 316 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Hand finished.
  • Ten-year warranty.

- 771Q2532:

  • Sembla WC turn.
  • Concealed fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 316 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Hand finished.
  • Ten-year warranty.

- 771Q2538:

  • Holt WC turn and emergency release indicator set.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Crafted from European oak.
  • 5% matt interior lacquered finish that is easy to clean and maintain.
  • Warm to the touch.
  • Five-year warranty.

- 771Q2538NI:

  • Holt WC turn and emergency release set without indicator.
  • Emergency release only – no external indicator.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Crafted in European oak.
  • 5% matt interior lacquered finish that is easy to clean and maintain.
  • Warm to the touch.
  • Five-year warranty.

- 771Q2539:

  • Holt disabled WC turn and emergency release indicator set.
  • Large thumbturn for disabled use.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Crafted from European Oak.
  • 5% matt interior lacquered finish that is easy to clean and maintain.
  • Warm to the touch.
  • Five-year warranty.

- 771Q2539NI:

  • Holt disabled WC turn and emergency release set without indicator.
  • Large thumbturn for disabled use.
  • Emergency release only – no external indicator.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Crafted from European Oak.
  • 5% matt interior lacquered finish that is easy to clean and maintain.
  • Warm to the touch.
  • Five -year warranty.

- 771/2570:

  • Modric disabled WC turn and emergency release indicator set.
  • Square roses.
  • Large thumbturn for disabled use.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 316 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Finish: SS - Satin stainless steel.
  • Hand finished.
  • Ten-year warranty.

- 771/2579:

  • Modric WC turn and emergency release indicator set.
  • Square roses.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 316 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Hand finished.
  • Ten-year warranty.

- 779Q:

  • Modric emergency release and indicator rose.
  • 50 mm diameter.
  • Supplied with concealed face fixings.
  • Can be used with concealed bolt through fixings.
  • Suitable for use with various Modric, Holt or Sembla thumbturns.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 316 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Hand finished.
  • Ten-year warranty.

- 786Q:

  • Modric emergency release rose.
  • 50 mm diameter.
  • Emergency release only – no external indicator.
  • Supplied with concealed face fixings.
  • Can be used with concealed bolt through fixings.
  • Suitable for use with various Modric, Holt or Sembla thumbturns.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 316 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Hand finished.
  • Ten-year warranty.

- 97873:

  • Alite WC turn and emergency release indicator set.
  • Supplied with concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8mm lock followers.
  • Grade 304 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Five-year warranty.

- 97874:

  • Alite disabled WC turn and emergency release indicator set.
  • Large thumbturn for disabled use.
  • Concealed bolt through fixings to suit doors 32–55 mm thick.
  • Suitable for 5 and 8 mm lock followers.
  • Grade 304 stainless steel.
  • Incorporated in successful fire test and assessed to BS EN 1634-1 up to 60 minutes on timber doors.
  • Five-year warranty
