Prisma

Application

Suitable for lockers in administrative centers, offices, swimming pools, fitness centers and schools.

Description

Entry level electronic lock, allowing facilities to quickly upgrade and secure their lockers, or other storage units, rather than using basic key cams or hasps.


Features and benefits:

  • Units fit both left and right handed doors.
  • ADA compliant.
  • High level resistance to water and dust.
  • CodeSafe prevents unauthorized codes being stored in unlocked position.
  • Tactile, soft-touch buttons with large, high contrast clear digits.
  • External power override for emergency opening.
  • Four levels of code management: Master, Submaster, User and Service.
  • Battery status indicator.

General information

Color

Black

Features

Units fit both left and right handed doors

ADA compliant

High level resistance to water and dust

CodeSafe prevents unauthorized codes being stored in unlocked position

Tactile, soft-touch buttons with large, high contrast clear digits

Show more

Finish

Matt

Material

Zamac

Shape

Rectangular

With soft edges.

Size

148 x 14 x 21.25 mm

Uniclass 2015

Pr_75_30_30_01 Access control digital keypads – stand-alonePrimary

Specification data - Access control digital keypads – stand-alone Enhanced data

Material and finish

Other finishes available.

Zamac/ Matt.

Colour

Black.

Keypad arrangement

Slim line profile with two columns of five keys and one larger key underneath.

User codes

Four-digit length.

Level 3- Can open and close the lock.

Six-digit length.

Level 4- Can open and close the lock without deleting the user code.

Eight-digit length.

Level 2- Can open and close the lock; Change the submaster code; - Set / change / delete user code

Level 1- Can open and close the lock; Change master code; set / change / delete user and submaster code; Select private or public function; Activate / deactivate service code.

Key characteristics

Tactile soft touch with large, high contrast clear digits.

Mounting position

Recessed.

Product Reference

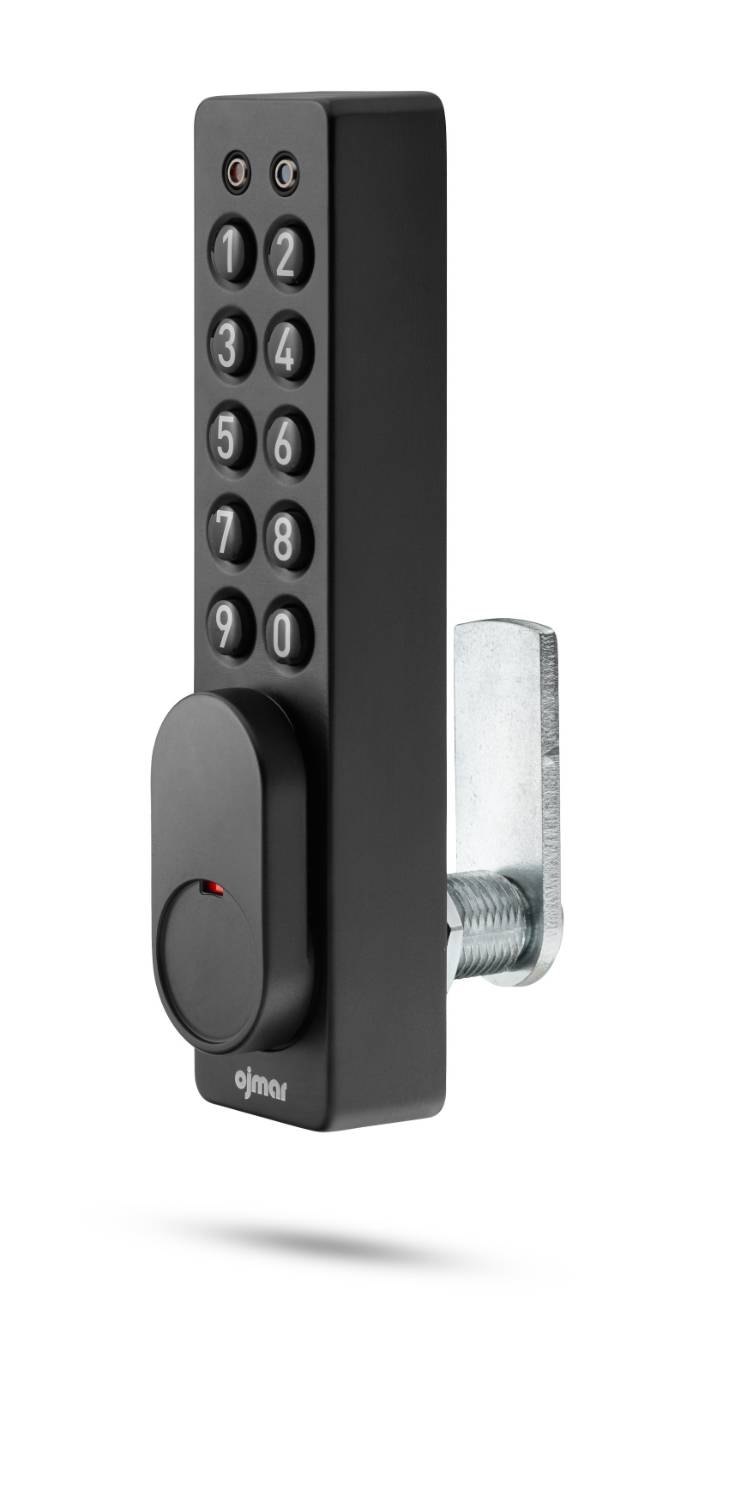

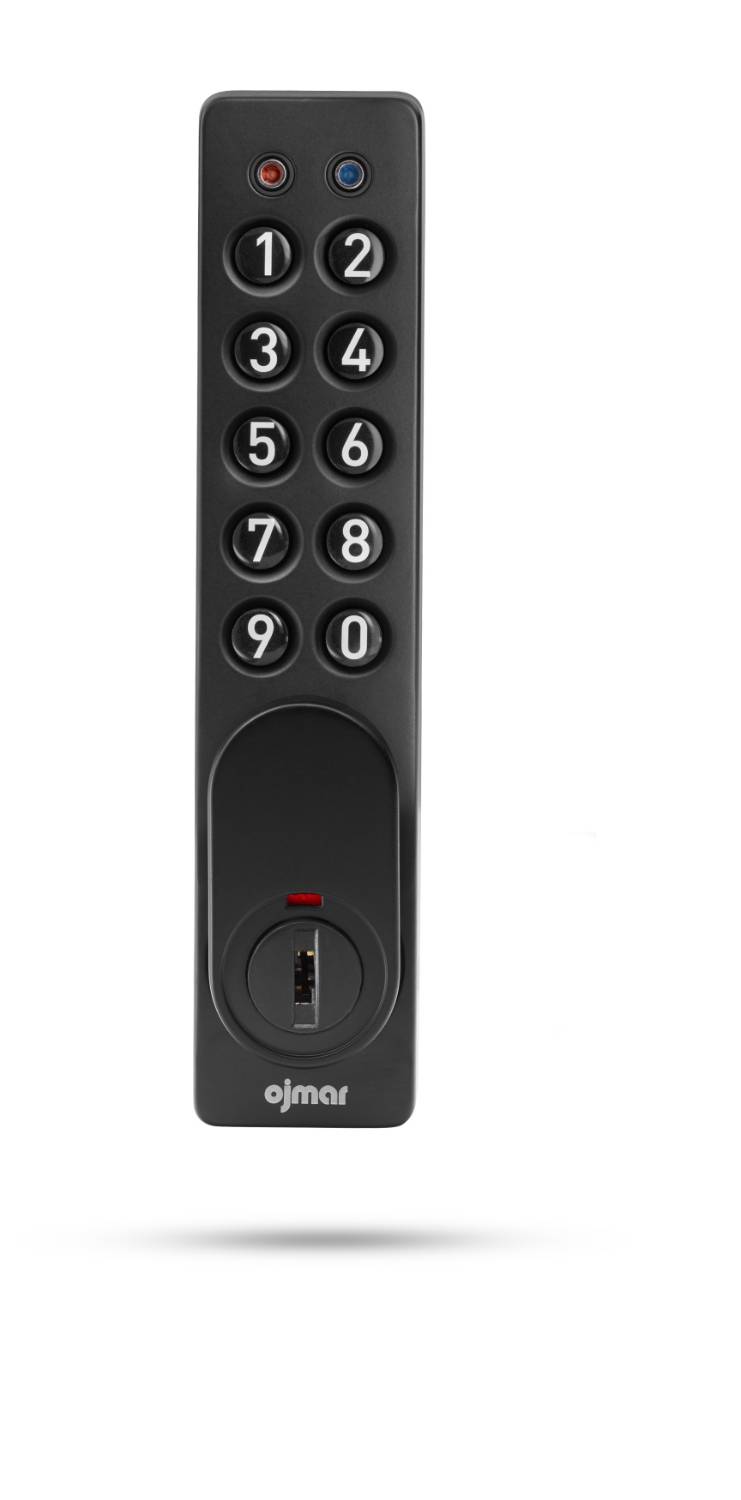

Prisma electronic combination lock

Accessories

None.

Remove key Ojmar with red fob.

Metal master key.

Interchangeable cylinder.

Ingress protection

IP55.
