Prevista Bidet Frames

Application

  • For wall hung bidets.
  • For installation in front of masonry walls and concrete walls.
  • For fixing in metal support profiles.
  • For Viega Prevista Dry Plus pre-​wall constructions
  • Suitable for residential and commercial applications.

Description

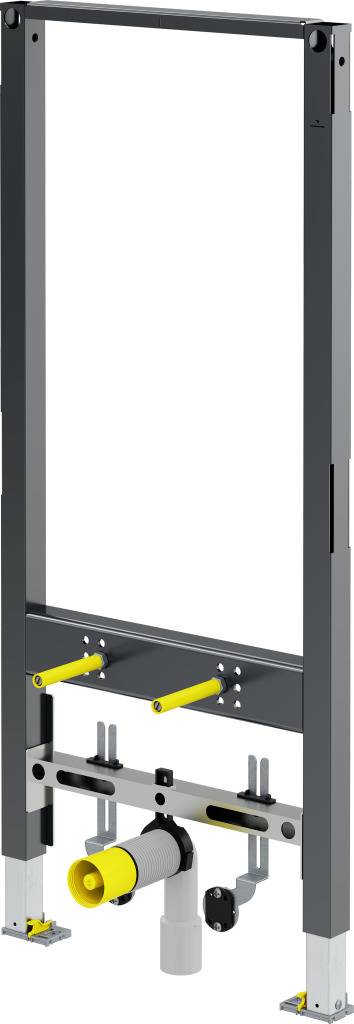

The Prevista Dry Bidet element 1120 mm for wall-​hung bidet is a pre-​wall installation system for dry construction (lightweight construction wall). Ready-​to-​install pre-​wall elements for half height and room height pre-​wall constructions, as well as free-​standing constructions. Fixing in metal support profiles and wooden frame constructions, directly onto the wall with 2 fixing points or with mounting rails. Floor supports suitable for C-​profiles 50 mm and 75 mm. Sound decoupled fixtures to fit all Viega wall plates.


Features and benefits:

  • Can be integrated into Prevista Dry Plus rail system.
  • Maximum load 400 kg; maximum projection 700 mm.

General information

Color

Black

Finish

Powder coated

Material

Steel

Shape

Rectangular

Size

1120 x 500 x 46–118 mm

Uniclass 2015

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

N13/66 Pre-plumbed frame system

N13/500 Preplumbed frame system

Specification data - Pre-plumbed installation frames Enhanced data

Form

Support frames with branch discharge pipe connectors.

Materials

Powder coated steel.

Size

1120 x 500 x 46–118 mm.

Accessories

None.

Prevista Dry Fixing Set Universal Model 8570.36.

For fixing of the Prevista Dry elements, single mounting direct on the structure, corner mounting on solid or metal support profiles. Depth-​adjustable 120–200 mm, fixing possibilities for cladding.

Load capacity

400 kg.
