PRESTO Rebated Glazed Door
Presto Rebated Glazed Door - E30
Presto Rebated Glazed Door - E30
Glazed, smoke-resistant rebated door.
Application
Fire resistant door, for internal use in a range of applications offering fire and smoke protection without compromising on design.
Description

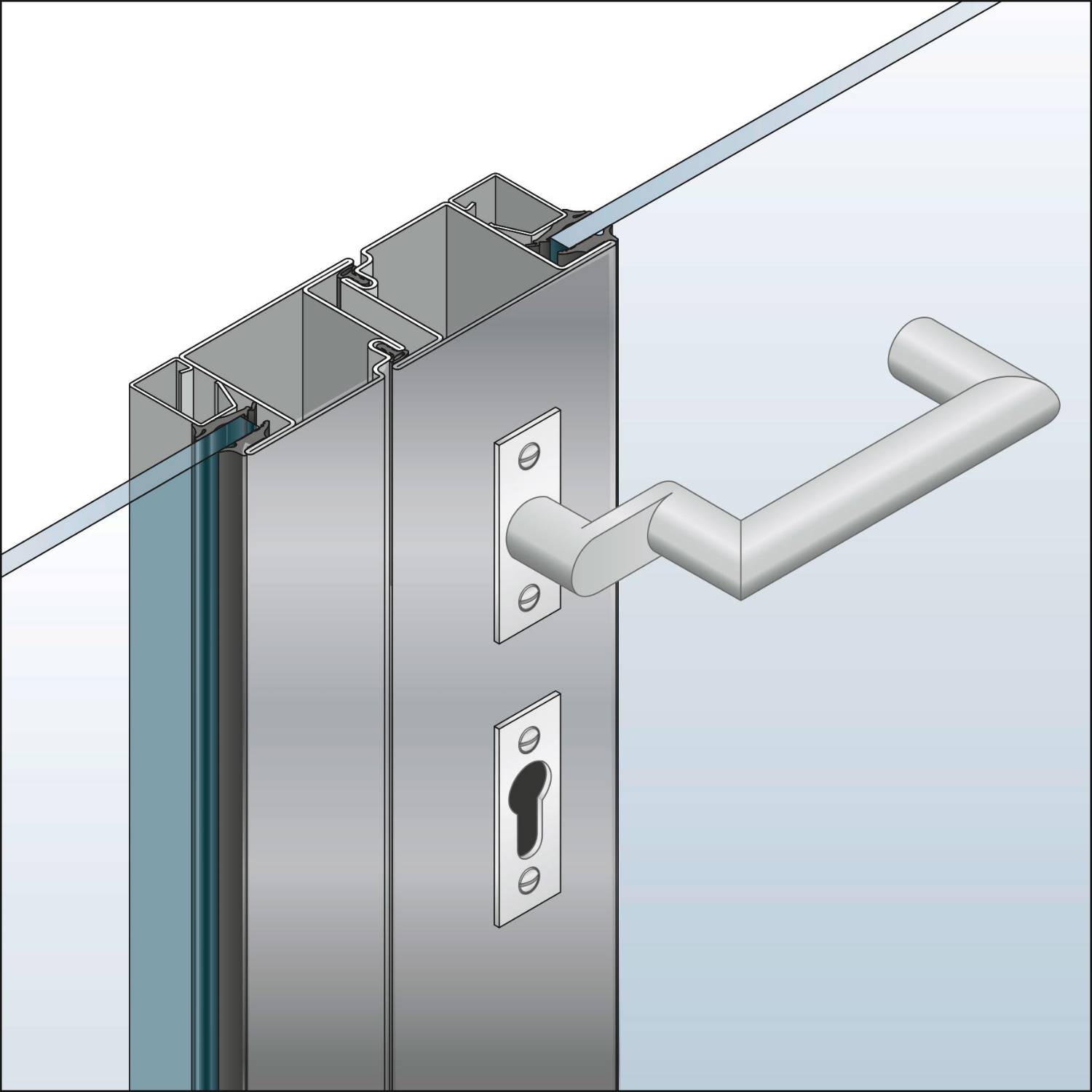

Glazed fire-resistant rebated doors with lever handles offering a range of fire performance options. Fully tested and approved, extensive profile system with fittings and accessories for single and double leaved, glazed fire resistant doors. The appeal of the system resides in the extremely slender visible profile widths, the overall filigree look and transparency.
Features and benefits:
- More light and clarity.
- Safety and modern appearance.
General information
Color | Other |
Finish | Powder-coated |
Material | Steel Stainless steel E30 SS, E60 SS. |
Shape | Rectangle |
SizeBespoke, dependent on project requirements. | - |
LengthConsult manufacturer. | - |
Width | 1100 mm Maximum. Consult manufacturer. 1350 mm Maximum. Consult manufacturer. 1400 mm Maximum. Consult manufacturer. |
Height | 2500 mm 2680 mm 3000 mm |
WarrantyDescriptionConsult manufacturer. | - |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Carbon steel doorsets
Third-party certificationAvailable on request. | - |
Configuration | Single leaf.Double leaf. |
Doorset size | 1400 x 3000 (maximum).W x H: Insert requirements. |
Performance | - |
Fire resistance | - |
Integrity | 30 minutes. |
Smoke leakage | As standard. |
Acoustic performance | 42 dB. |
Intruder resistance | - |
Minimum requirementBurglar-resistant doors RC1-3 according to EN 1627-1630. | - |
Frame | - |
Material | Steel. |
Threshold | Barrier-free. |
Perimeter seals or inserts | As standard. |
Finish | - |
Coating | Powder-coated. |
Colour | Powder-coated. |
Door leaf | - |
Thickness | 50 mm. |
Glazing | - |
TypeConsult manufacturer and insert requirements. | - |
Finish | - |
Coating | Powder-coated. |
External colour | Powder-coated. |
Internal colour | Powder-coated. |
Hardware | Lever handles.Push bar. |
AccessoriesConsult manufacturer and insert requirements. | - |
Environmental information
Recyclability | 100% |
Recycled content | 5 % |
