Description

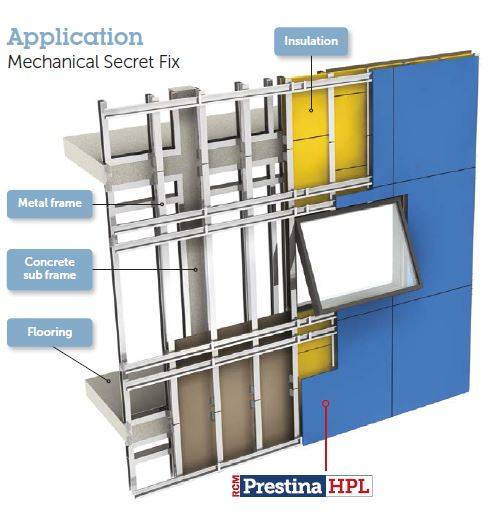

Cladding panel manufactured from high pressure laminate, which can be installed in fully ventilated rainscreen systems.

Manufactured from kraft paper, resins and protective additives which give it UV and weather resistance.

Available in a wide range of colours and finishes.

General information
Size

2150 x 900 mm

2800 x 1300 mm

3050 x 1300 mm

3200 x 1650 mm

4200 x 1620 mm

4200 x 1860 mm

Uniclass 2015
Pr_25_71_63_15 Compact or solid grade high-pressure laminate (HPL) boardsPrimary
Specification data - Compact or solid grade high-pressure laminate (HPL) boards
Product Reference

Prestina FM

Size

2150 x 900 mm

2800 x 1300 mm

3050 x 1300 mm

3200 x 1650 mm

4200 x 1620 mm

4200 x 1860 mm

Thickness

8 mm

10 mm

13 mm

Finish -
Colour

Consult manufacturer for colour range.

Texture

Consult manufacturer for details of available textures.

Standard product features

Weight:

≥1.45 g/cm³.

Dimensional stability at elevated temperature (EN 438-4):

  • 2–5 mm thick: Length, 0.4%; width, 0.8%.
  • >5 mm thick: Length, 0.3%; width, 0.6%.

Durability:

  • Resistance to surface wear (EN 438-4): P.I., > 150; Wear value, > 350.
  • Resistance to scratching (EN 438-2): Matt, rating 2; Textured, rating 3.
  • Resistance to staining (EN 438-4): Groups 1 and 2, rating 5; Group 3, rating 3.

Resistance to impact (EN 438-4):

  • 2–6 mm thick: 1.4 mm.
  • ≥6 mm thick: 1.8 mm.

Dynamic watertightness:

Pass.

Wind resistance:

Pass at 2400 Pa.
