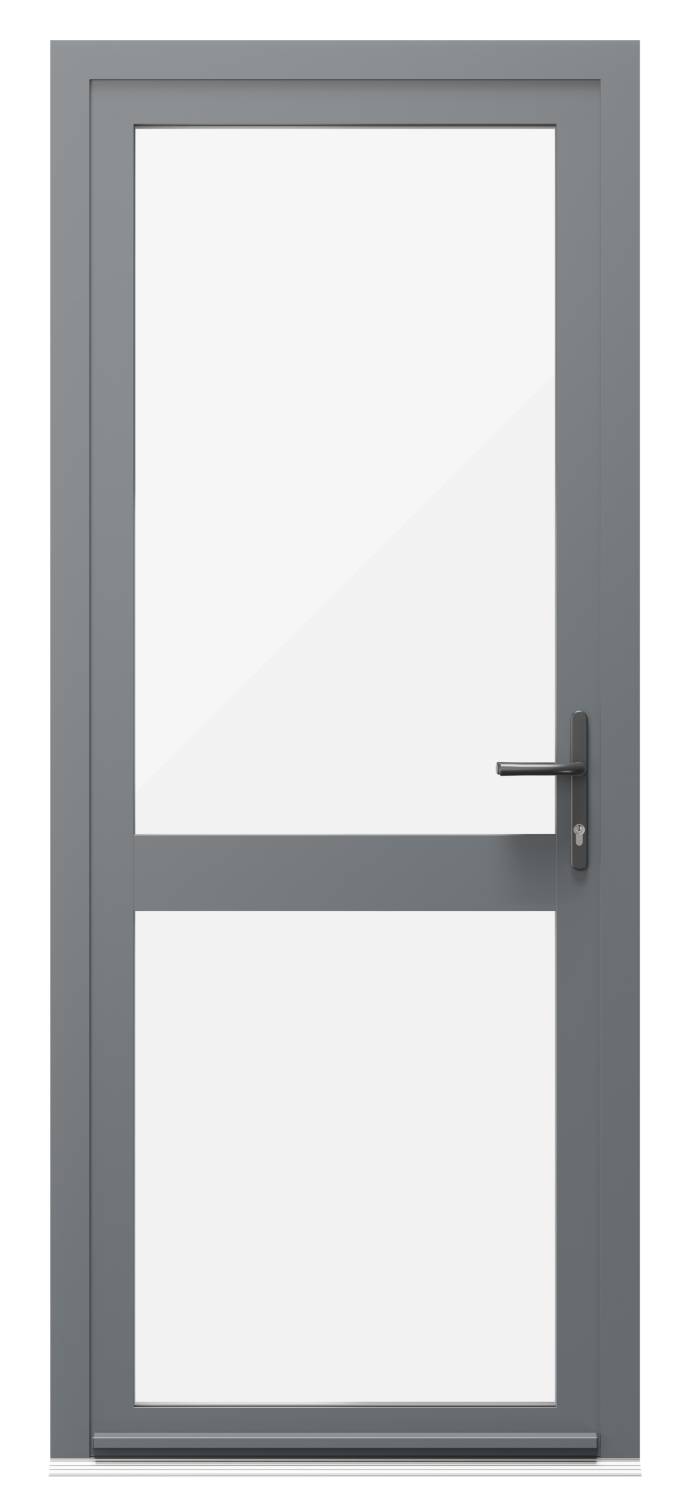

Prestige Single Door - Aluminium Door

Verified by manufacturer 2 days ago

Double Glazed

Sheerline Variant:
Product certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • Qualicoat approval

    Qualicoat approval

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • Secured By Design

    Secured By Design

    Certificate type

Thermally efficient, single aluminium door.

Jump to:
01332 978000 Website

Application

Suitable for residential applications.

Description

Glazed aluminium entrance door.

Features and benefits:

  • Maximise light flooring into a home.
  • Inward opening.
  • Complements Sheerline's high performance Prestige and Classic windows.
  • A door mid-rail can accommodate a letterbox if required.
  • Available in a wide range of colours and finishes, including new laminated foil options, Sheerline Prestige French and single doors are the perfect way to complete a renovation.
  • Three high performance, Part M compliant, low level threshold options featuring fully weather-sealed rebates.
  • Available with side and top lights.
  • Double and triple glazed options.
  • Thermlock® technology offers almost double the insulation when compared to polyamide.
  • Enhanced security – available with Secured by Design accreditation for police-approved security standards.
  • Part L compliant.

General information

Color

Grey

Black

Brown

Cream

White

Show more

Finish

Powder-coated

Matt

Gloss

Metallic

Satin

Show more

Material

Aluminium

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

Powder-coated finish, thermlock performance and profile integrity.

Ten year

Guidance for specification option:

Gasket integrity.

Other

Guidance for specification option:

Bespoke guarantee for marine specific locations and bespoke colours. Consult manufacturer for details.

Manufacturer guidance

Sheerline components are covered by a comprehensive guarantee - consult manufacturer for details.

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Aluminium doorsets

Standard

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Configuration

Single-leaf, single-action.

Doorset size

-

Manufacturer guidance

Insert requirements.

  • Minimum size with small outer frame (width): 672 mm.
  • Maximum size with small outer frame (width x height): 1072 x 2572 mm.
  • Maximum sash size (width x height): 1000 x 2500 mm.

Performance

-

Acoustic performance

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Thermal

1.4 W/m²K.

Intruder resistance

-

Minimum requirement

To PAS 24.
To PAS 24 and Secured by Design certification.

Application

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Conformity

Certification by accredited third-party certification body. Type testing not permitted.

Accessibility

Part M compliant thresholds.

Frame

-

Material

Aluminium.

Guidance for specification option:

  • Contemporary frame design (SP102/SP351).
  • Sightline: intermediate, 127 mm.

Threshold

Low threshold with ramp (SP700).
Low threshold (SP701).
Frame low threshold (SP702).

Manufacturer guidance

Part M compliant thresholds.

Perimeter seals or inserts

Weatherseal.

Finish

-

Coating

Powder coating.

Texture

As colour.

Colour

Anthracite grey, RAL 7016, matt.
Pure white, RAL 9010, gloss.
Hipca gloss white, RAL 9910, gloss.
Jet black, RAL 9005, matt.
Cream, RAL 9001, matt.
Agate grey, RAL 7038, matt.
Squirrel grey, RAL 7000, matt.
Pastel turquoise, RAL 6034, matt.
Chocolate brown, RAL 8017, matt.
Silver metallic effect.
Mid bronze metallic effect.
Black metallic effect.
Black cherry laminated foil.
Golden oak laminated foil.
White laminated foil.
Irish oak laminated foil.
Anthracite grey laminated foil.
Black brown laminated foil.
Chartwell green laminated foil.
Bespoke.

Guidance for specification option:

  • Bespoke powder-coated colours available in matt, satin, gloss or textured finishes.
  • Bespoke laminated foil colours available to meet project requirements.
  • Consult manufacturer for details and insert requirements.

Installation fasteners

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Frame accessories

-

Manufacturer guidance

Insert requirements or omit.

Door leaf

-

Thickness

72 mm.

Core

Thermlock® core.

Panel details

Fully glazed.
Glazed with mid-rail.

Material

Aluminium.

Lippings

Unlipped.

Perimeter seals

Weather.

Glazing

-

Type

Double glazing, 28 mm (4/20/4).

Guidance for specification option:

Clear/ Argon/ Planitherm ONE.

Double glazing, 28 mm (4/18/6.8).

Guidance for specification option:

Clear/ Argon/ Laminated Planitherm ONE.

Manufacturer guidance

Glazing DSER rating: B.

Glazing accessories

-

Manufacturer guidance

Insert requirements or omit.

Finish

-

Coating

Powder coating.

Texture

As colour.

External colour

Anthracite grey, RAL 7016, matt.
Pure white, RAL 9010, gloss.
Hipca gloss white, RAL 9910, gloss.
Jet black, RAL 9005, matt.
Cream, RAL 9001, matt.
Agate grey, RAL 7038, matt.
Squirrel grey, RAL 7000, matt.
Pastel turquoise, RAL 6034, matt.
Chocolate brown, RAL 8017, matt.
Silver metallic effect.
Mid bronze metallic effect.
Black metallic effect.
Black cherry laminated foil.
Golden oak laminated foil.
White laminated foil.
Irish oak laminated foil.
Anthracite grey laminated foil.
Black brown laminated foil.
Chartwell green laminated foil.
Bespoke.

Guidance for specification option:

  • Bespoke powder-coated colours available in matt, satin, gloss or textured finishes.
  • Bespoke laminated foil colours available to meet project requirements.
  • Consult manufacturer for details and insert requirements.

Internal colour

As external.

Film thickness (minimum)

Coating applicator to determine.

Door accessories

-

Manufacturer guidance

Insert requirements or omit.

Hardware

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Watertightness

Class 2A.

Air permeability

Class 2.

Wind resistance

Class C3.

Sustainability data

Country of product manufacture

United Kingdom

Material

Aluminium
Glass

Recyclability

Recyclable aluminium

Product certifications

BSI Kitemark

BSI Kitemark

Prestige Doors BS 4873/PAS24

Qualicoat approval

Qualicoat approval

Qualicoat Seaside Class Powder Coating

BSI Kitemark

BSI Kitemark

Sheerline ISO 9001:2015

Secured By Design

Secured By Design

Secured By Design

Literature

Sheerline Guarantee

Sheerline Guarantee

Sheerline Specification Guide

Sheerline Specification Guide

Prestige Single Door Data Sheet

Prestige Single Door Data Sheet
