Verified by manufacturer 2 days ago
Double Glazed - Contemporary
BSI Kitemark
Certificate type
Qualicoat approval
Certificate type
Secured By Design
Certificate type
BSI Kitemark
Certificate type

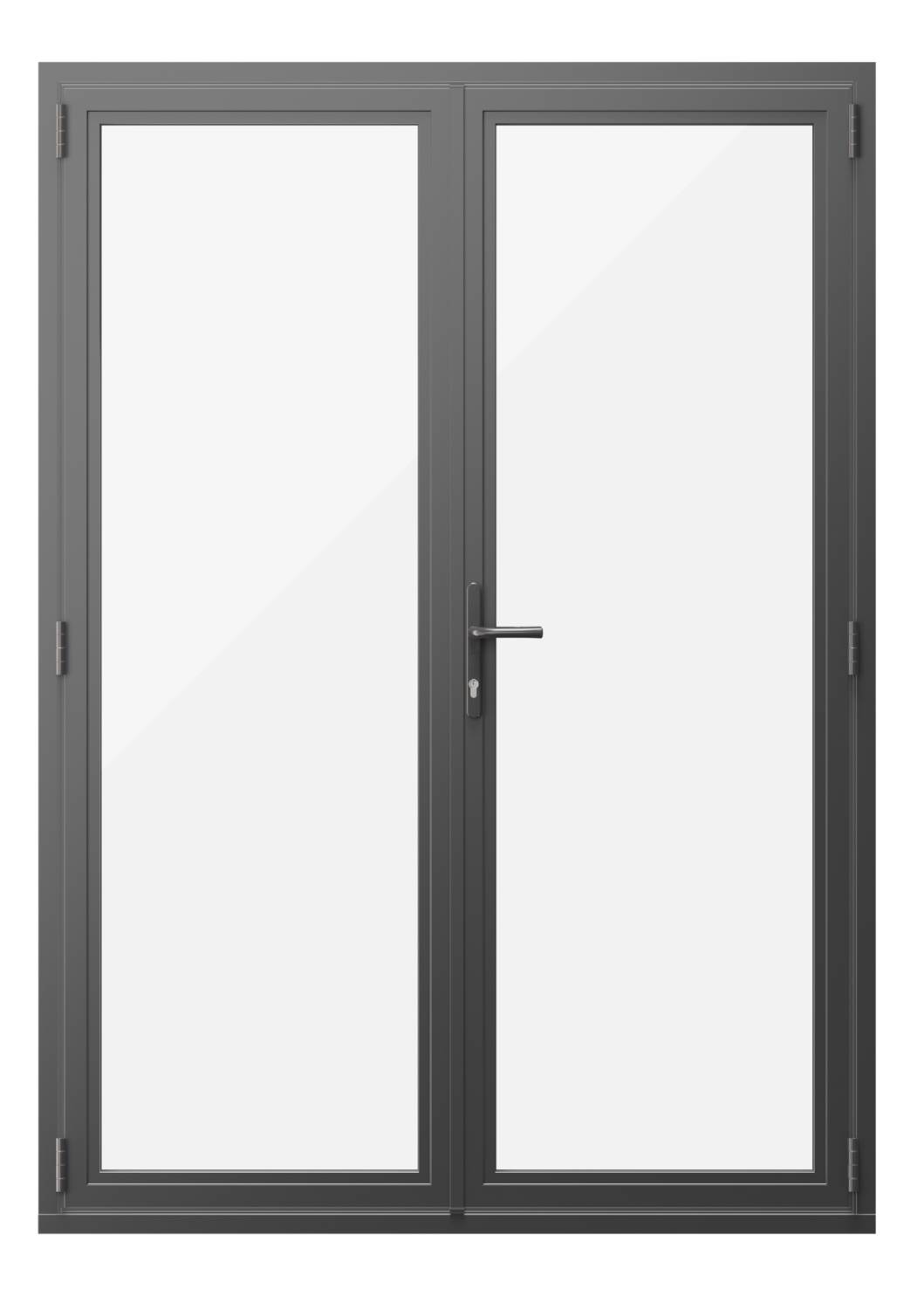

French aluminium door.
Suitable for residential applications.
Prestige French bi-folds provide slim sightlines, built-in security and create an increased sense of space. The entire Prestige Bi-fold range is Part L compliant, able to achieve a double-glazed U-value of 1.4 W/m²K which easily achieves compliance for new homes and non-dwelling commercial projects.
Features and benefits:
Color | Grey Black Brown Cream White |
Finish | Powder-coated Matt Gloss Metallic Satin |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Powder-coated finish, thermlock performance and profile integrity. Ten year Guidance for specification option: Gasket integrity. Other Guidance for specification option: Bespoke guarantee for marine specific locations and bespoke colours. Consult manufacturer for details. Manufacturer guidanceSheerline components are covered by a comprehensive guarantee - consult manufacturer for details. |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Standard | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Configuration | Double-leaf, single-action (2/1/1). |
Doorset size | Manufacturer guidanceInsert requirements.
|
Performance | |
Acoustic performance | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Thermal | 1.4 W/m²K. |
Intruder resistance | |
Minimum requirement | To PAS 24. To PAS 24 and Secured by Design certification. Manufacturer guidance
|
Application | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Conformity | Certification by accredited third-party certification body. Type testing not permitted. |
Accessibility | Part M compliant thresholds. |
Frame | |
Material | Aluminium. Guidance for specification option:
|

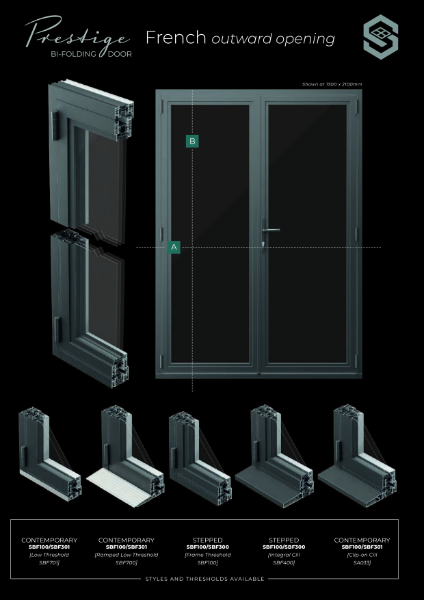

Threshold | Low threshold with ramp (SP700). Low threshold (SP701). Clip-on cill (SA033). Manufacturer guidancePart M compliant thresholds. |
Perimeter seals or inserts | Weatherseal. |
Finish | |
Coating | Powder coating. |
Texture | As colour. |
Colour | Anthracite grey, RAL 7016, matt. Pure white, RAL 9010, gloss. Hipca gloss white, RAL 9910, gloss. Jet black, RAL 9005, matt. Cream, RAL 9001, matt. Agate grey, RAL 7038, matt. Squirrel grey, RAL 7000, matt. Pastel turquoise, RAL 6034, matt. Chocolate brown, RAL 8017, matt. Silver metallic effect. Mid bronze metallic effect. Black metallic effect. Black cherry laminated foil. Golden oak laminated foil. White laminated foil. Irish oak laminated foil. Anthracite grey laminated foil. Black brown laminated foil. Chartwell green laminated foil. Bespoke. Guidance for specification option:
|
Installation fasteners | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Frame accessories | Not required. Transom/ mullion option (SP200). Stepped dummy mullion (SP230). Small flat Georgian bar (SA036). Large flat Georgian bar (SA037). |
Door leaf | |
Thickness | 80 mm. |
Core | Thermlock® core. |
Panel details | Glazed. |
Material | Aluminium. |
Lippings | Unlipped. |
Perimeter seals | Weather. |
Glazing | |
Type | Double glazing, 28 mm (4/20/4). Guidance for specification option: Clear/ Argon/ Planitherm ONE. Double glazing, 28 mm (4/18/6.8). Guidance for specification option: Clear/ Argon/ Laminated Planitherm ONE. Manufacturer guidanceGlazing DSER rating: B. |
Glazing accessories | Manufacturer guidanceInsert requirements or omit. |
Beading | |
Type | External. |
Material | Aluminium. |
Fixing | Pre-gasketed clip-in beads. |
Finish | |
Coating | Powder coating. |
Texture | As colour. |
External colour | Anthracite grey, RAL 7016, matt. Pure white, RAL 9010, gloss. Hipca gloss white, RAL 9910, gloss. Jet black, RAL 9005, matt. Cream, RAL 9001, matt. Agate grey, RAL 7038, matt. Squirrel grey, RAL 7000, matt. Pastel turquoise, RAL 6034, matt. Chocolate brown, RAL 8017, matt. Silver metallic effect. Mid bronze metallic effect. Black metallic effect. Black cherry laminated foil. Golden oak laminated foil. White laminated foil. Irish oak laminated foil. Anthracite grey laminated foil. Black brown laminated foil. Chartwell green laminated foil. Bespoke. Guidance for specification option:
|
Internal colour | As external. |
Film thickness (minimum) | Coating applicator to determine. |
Door accessories | Manufacturer guidanceInsert requirements or omit. |
Hardware | Concealed passive door lock. |
Accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Watertightness | Class 7A. |
Air permeability | Class 4. |
Wind resistance | Class A3 (1200 Pa). |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recyclability | Recyclable aluminium |
