Classic Heritage Single Door - Aluminium Door

Verified by manufacturer 2 days ago

Sheerline Product certifications:
  • Secured By Design

    Secured By Design

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • Qualicoat approval

    Qualicoat approval

    Certificate type

Slim, heritage style single door.

Jump to:
01332 978000 Website

Application

Suitable for new homes and non-dwelling commercial projects.

Description

The Classic Heritage Door is the ultimate blend of vintage charm and cutting-edge technology. Designed with an ultra-slim aluminium profile and a period-inspired lockbox, this door captures the essence of early 20th-century steel doors while delivering superior thermal efficiency and security.

The Classic door range is Part L compliant, able to achieve a double-glazed U-value of 1.4 W/m²K, which easily achieves compliance for new homes and non-dwelling commercial projects.

Features and benefits:

  • Ultra-slim heritage aesthetics, featuring Sheerline's signature 'stepped' design.
  • Period inspired lockbox design, with a consistent aesthetic on internal and external sides.
  • Optional top light.
  • Available as externally or internally opening.
  • Zero threshold option available.
  • Double glazed.
  • Small sightlines.
  • Available in 12 stocked colour combinations.
  • Complements the Classic window range, it adds a sophisticated Art Deco touch to any home.
  • Patented corner construction – reduces waste and ensures seamless frame alignment for lasting quality.
  • Thermlock® technology offers almost double the insulation when compared to polyamide.
  • Enhanced security – available with Secured by Design accreditation for police-approved security standards.
  • Part L compliant.

General information

Color

Grey

Black

Brown

Cream

White

Show more

Finish

Powder-coated

Matt

Gloss

Metallic

Satin

Show more

Material

Aluminium

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

Powder-coated finish, thermlock performance and profile integrity.

Ten year

Guidance for specification option:

Gasket integrity.

Other

Guidance for specification option:

Bespoke guarantee for marine specific locations and bespoke colours. Consult manufacturer for details.

Manufacturer guidance

Sheerline components are covered by a comprehensive guarantee - consult manufacturer for details.

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Aluminium doorsets

Standard

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Configuration

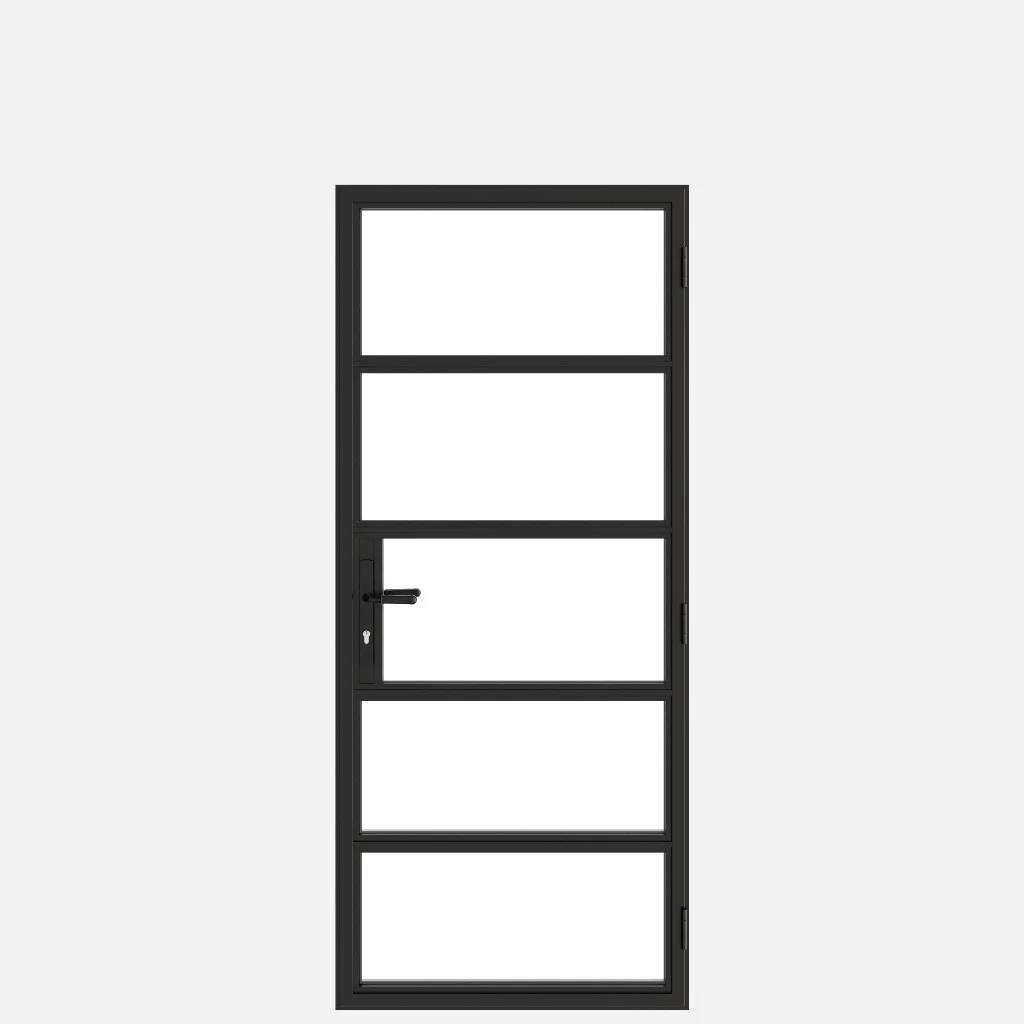

Single-leaf, single-action.
Single-leaf, double-action.

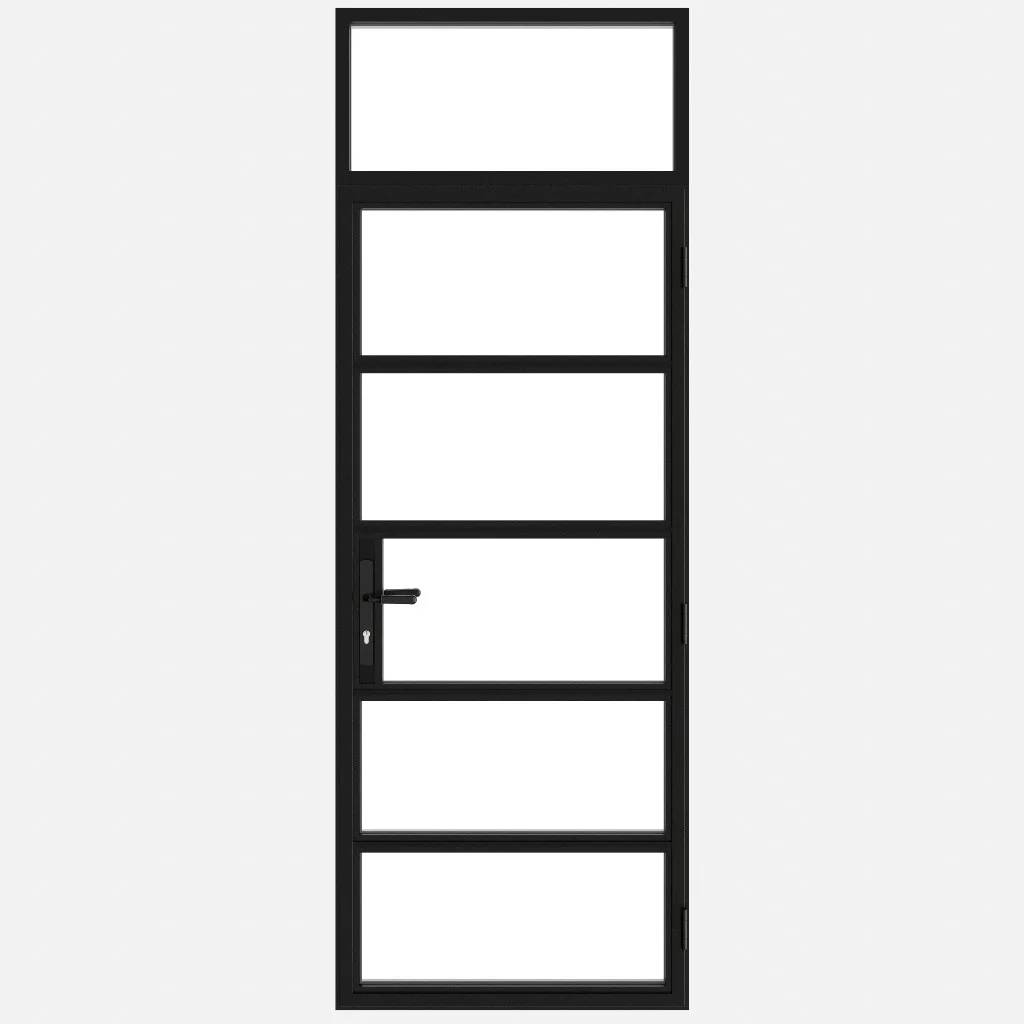

Single-leaf, single-action with toplight.
Single-leaf, double-action with toplight.

Doorset size

-

Manufacturer guidance

Insert requirements.

  • Minimum size with small outer frame (width x height): 626 x 2126 mm.
  • Maximum size with small outer frame (width x height): 1051 x 4357 mm.
  • Maximum sash size (width x height): 1000 x 2200 mm.

Performance

-

Acoustic performance

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Thermal

1.4 W/m²K.

Intruder resistance

-

Minimum requirement

To PAS 24.
To PAS 24 and Secured by Design certification.

Application

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Conformity

Certification by accredited third-party certification body. Type testing not permitted.

Frame

-

Material

Aluminium.

Guidance for specification option:

  • Stepped frame design.
  • Sightline: 60.5 mm.

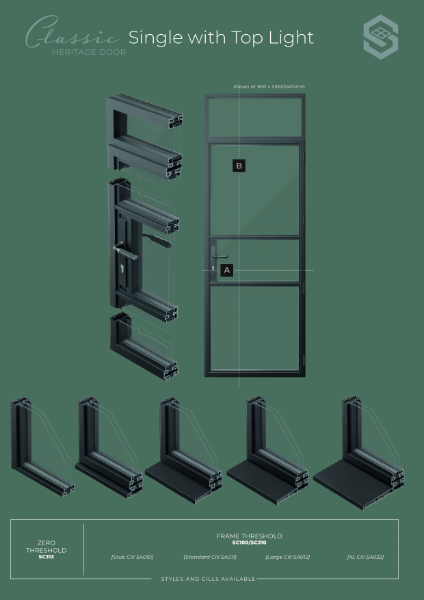

Threshold

No threshold (SC313).
Frame threshold - SC100/SC310 (stub cill SA010).

Guidance for specification option:

  • SC100 small outer frame, SC310 stepped beaded sash.
  • Cill: stub cill SA032, 85 mm cill width.

Frame threshold - SC100/SC310 (standard cill SA011).

Guidance for specification option:

  • SC100 small outer frame, SC310 stepped beaded sash.
  • Cill: standard cill SA011, 150 cill width.

Frame threshold - SC100/SC310 (large cill SA012).

Guidance for specification option:

  • SC100 small outer frame, SC310 stepped beaded sash.
  • Cill: large cill SA012, 175 cill width.

Frame threshold - SC100/SC310 (XL cill SA032).

Guidance for specification option:

  • SC100 small outer frame, SC310 stepped beaded sash.
  • Cill: extra large cill SA032, 225 cill width.

Perimeter seals or inserts

Weatherseal.

Finish

-

Coating

Powder coating.

Texture

As colour.

Colour

Anthracite grey, RAL 7016, matt.
Pure white, RAL 9010, gloss.
Hipca gloss white, RAL 9910, gloss.
Jet black, RAL 9005, matt.
Cream, RAL 9001, matt.
Agate grey, RAL 7038, matt.
Squirrel grey, RAL 7000, matt.
Pastel turquoise, RAL 6034, matt.
Chocolate brown, RAL 8017, matt.
Silver metallic effect.
Mid bronze metallic effect.
Black metallic effect.
Black cherry laminated foil.
Golden oak laminated foil.
White laminated foil.
Irish oak laminated foil.
Anthracite grey laminated foil.
Black brown laminated foil.
Chartwell green laminated foil.
Bespoke.

Guidance for specification option:

  • Bespoke powder-coated colours available in matt, satin, gloss or textured finishes.
  • Bespoke laminated foil colours available to meet project requirements.
  • Consult manufacturer for details and insert requirements.

Installation fasteners

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Frame accessories

Lockbox (SC280).

Door leaf

-

Thickness

64 mm.

Core

Thermlock® core.

Panel details

No bars.
Two bar.
Four bar.

Material

Aluminium.

Lippings

Unlipped.

Perimeter seals

Weather.

Glazing

-

Type

Double glazing, 28 mm (4/20/4).

Guidance for specification option:

Clear/ Argon/ Planitherm* Total+.

Double glazing, 28 mm (4/18/6.8).

Guidance for specification option:

Clear/ Argon/ Laminated Planitherm Total+.

Manufacturer guidance

Glazing DSER rating: A+.

Glazing accessories

-

Manufacturer guidance

Insert requirements or omit.

Beading

-

Type

External.

Material

Aluminium.

Fixing

Clip-in.

Finish

-

Coating

Powder coating.

Texture

As colour.

External colour

Anthracite grey, RAL 7016, matt.
Pure white, RAL 9010, gloss.
Hipca gloss white, RAL 9910, gloss.
Jet black, RAL 9005, matt.
Cream, RAL 9001, matt.
Agate grey, RAL 7038, matt.
Squirrel grey, RAL 7000, matt.
Pastel turquoise, RAL 6034, matt.
Chocolate brown, RAL 8017, matt.
Silver metallic effect.
Mid bronze metallic effect.
Black metallic effect.
Black cherry laminated foil.
Golden oak laminated foil.
White laminated foil.
Irish oak laminated foil.
Anthracite grey laminated foil.
Black brown laminated foil.
Chartwell green laminated foil.
Bespoke.

Guidance for specification option:

  • Bespoke powder-coated colours available in matt, satin, gloss or textured finishes.
  • Bespoke laminated foil colours available to meet project requirements.
  • Consult manufacturer for details and insert requirements.

Internal colour

As external.

Film thickness (minimum)

Coating applicator to determine.

Door accessories

Dummy transom bars.

Hardware

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Watertightness

Class 3A.

Air permeability

Class 2.

Wind resistance

Class B3.

Sustainability data

Country of product manufacture

United Kingdom

Material

Aluminium
Glass

Recyclability

Recyclable aluminium

Product certifications

Secured By Design

Secured By Design

Secured By Design

BSI Kitemark

BSI Kitemark

Sheerline ISO 9001:2015

Qualicoat approval

Qualicoat approval

Qualicoat Seaside Class Powder Coating

Literature

Sheerline Guarantee

Sheerline Guarantee

Sheerline Specification Guide

Sheerline Specification Guide

Classic Heritage Single Door Data Sheet

Classic Heritage Single Door Data Sheet
