Application

Suitable for offices, conference rooms, training facilities, educational establishments, hotels and banqueting suites.

Description

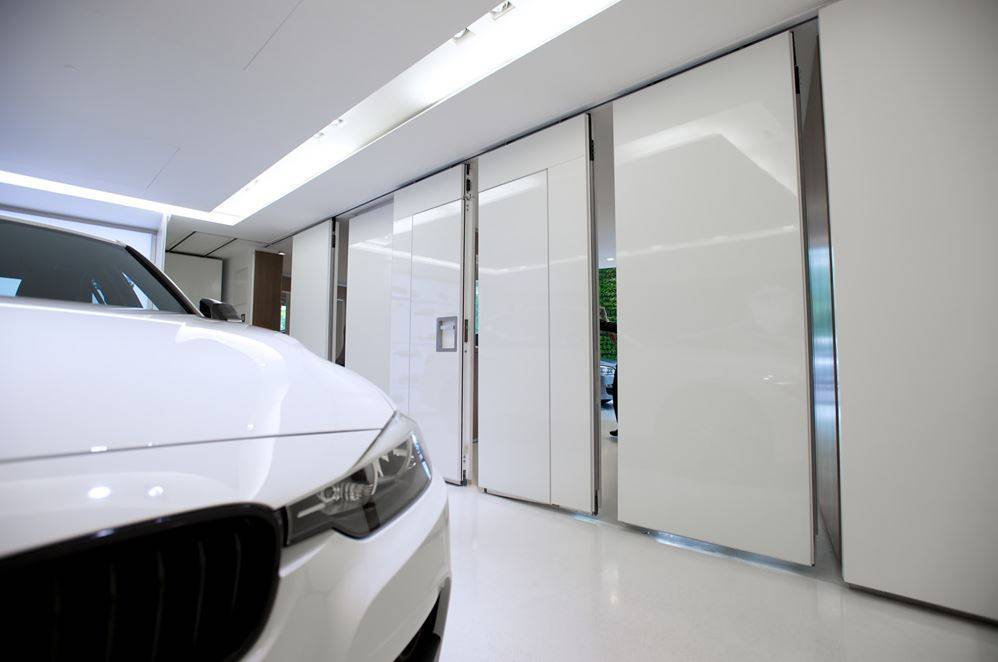

Movable wall offering benefits including dividing a school hall into two different multi-purpose areas for simultaneous physical activities, or splitting a large conference facility into smaller seminar rooms. It offers an effective space solution for many environments, and acoustic insulation of up to 58 dB noise reduction is achieved with a combination of acoustic infills and operable top and bottom seals. It can also be supplied to withstand flames for 60 minutes.

The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in various configurations. Individual panels can be constructed with either manual or semi-automatic retractable top and bottom seals. When the operable seals are retracted, the panels will glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).

Features and benefits:

  • Top hung elements move easily and quietly on single or twin point suspensions running in an aluminium track.
  • No floor track required.
  • Various options available for ‘parking’ elements when the wall is open.
  • Hinged, full height pass doors available - consult manufacturer for details.
  • Panels are available curved, with inset pass doors, or with glazed cut outs.
  • Seals at the head and base are operated by a concealed jacking mechanism using quick release handle.
  • Option for semi-automatic operation of seals using electronic controls.
  • Acoustic insulation of up to 58 dB noise reduction.

Applications:

Suitable for offices, conference rooms, training facilities, educational establishments, hotels and banqueting suites.

General information
Size

As drawing

Insert reference.

As schedule

Insert reference.

Features

No floor track required, available with fire resistant glass, top hung for easier movement, multiple parking options available

Finish

White, grey, cream, birch, maple, ash, beech, oak

Shape

Rectangle

WarrantyDescription

12 months

Uniclass 2015 Sliding stacking panel partitions (Pr_25_71_57_80)
Specification data
Product Reference

Prestige Movable Wall

Size

As drawing

Insert reference.

As schedule

Insert reference.

Finish/ Colour

Beech

Birch

Dark oak

Maple

Oak

Walnut

Woodline cream

Special order

Insert requirement from 'Options' below.

Stacking position

Type 1

Single point suspension with centrally fitted roller.

Type 2

Double point suspension with two multi-directional rollers with one roller always on the centreline of top tracks.

Type 3

Double point suspension with two multi-directional rollers for offset remote stacking.

Type 4

Consult manufacturer's literature for information.

Type 5

Double point suspension with two multi-directional rollers for remote parallel stacking.

Type 6

Consult manufacturer's literature for information.

Type 7

Consult manufacturer's literature for information.

Type 8

Double point suspension with two multi-directional rollers for offset remote stacking.

Operation

Manual

– Seals operated by concealed jacking mechanism with quick release handle.

Semi-automatic

– Top and bottom retractable seals powered by an electric motor unit housed within the panel.

Glazing

Insert requirements.

Pass doors

Insert requirements.

Fire resistance

Not required

60 minutes

Standard product features

Acoustic rating:

≤58 dB.

Product Options

Finish/ Colour:

Partitions can be supplied in various surface finishes including melamine faced chipboard (MFC), laminates and veneers. Dry wipe magnetic finishes, wall coverings from Muraspec and Tektura or bespoke stretch fabrics are also available to compliment different decorative schemes and location types. The option exists for walls to have one finish or colour scheme on one side and a different finish or colour scheme on the other. Consult manufacturer for more information.

Glazing:

Options include single glazed, double glazed, acoustic and fire rated glass partitions. Glass can be etched, sandblasted or decorated with foil. Text, logos or entire designs and patterns can also be incorporated into a panel. Consult manufacturer for more information.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
Revit 2017 1 2.1
Download now from NBS National BIM Library
Literature
