NBS Source
Prestex Compression Fittings

Application

Suitable for use with copper tube to EN 1057 and stainless steel tube to EN10312, GW341.

Description

Brass plate finish or chromium plated compression fittings in sizes 8–54 mm with male and female adapters/ connections; designed, manufactured and tested to meet UK and international standards (EN 1057). BSI Kitemarked.


The range includes:

  • Straight couplings.

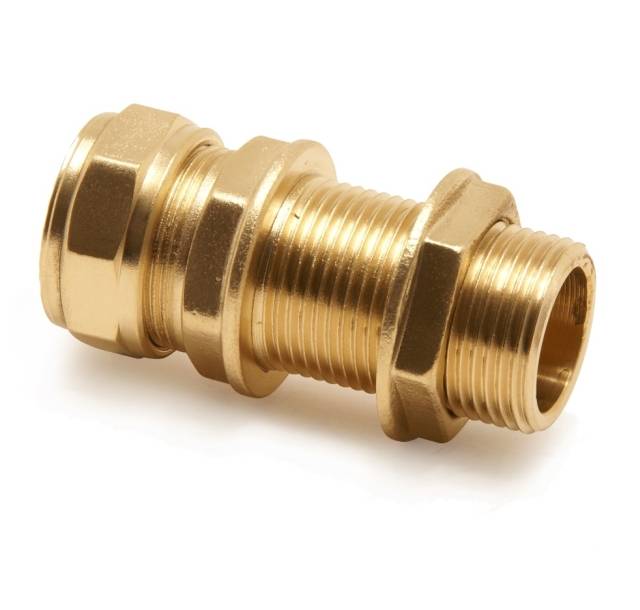

  • Flanged tank connectors.
  • Elbows.
  • Equal tees.
  • Tee, reduced branches.
  • Stop ends.


Service temperature/ pressure:

  • 30°C: 16 bar.
  • 65°C: 10 bar.
  • 110°C: 6 bar.
  • Compressed air non-shock 8–28 mm, 30°C: 7 bar.
  • Saturated steam 120°C: 3 bar.
  • LPG 8–28 mm, 30°C: 1 bar.
  • Natural gas 8–28 mm, 60°C: 5 bar.

General information

Finish

Brass plate

Chromium plate

Uniclass

Pr_65_52_63_18 Copper pipeline fittingsPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/130 Instantaneous hot water supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Copper pipe fittings Enhanced data

Product Reference

Prestex Compression Fittings

Type

Consult literature for details and insert requirements.

Literature

Prestex Compression Plumbing Solutions

Prestex Compression Plumbing Solutions
