Premier Rainwater Cast Iron Rectangular Pipe
Verified by manufacturer today
Square
Square
Traditional cast iron rainwater square and rectangular pipes, fittings and hoppers. Fully compliant with BS 460.
Application
- Residential
- Commercial
- Heritage
- Conservation
- Refurbishment
- Listed buildings
- Churches
Description
Traditional cast iron rainwater square and rectangular pipes, fittings and hoppers. Fully compliant with BS 460. Socket and spigot pipes available eared or plain.
Pipes sizes available:
- 75 x 75 mm
- 100 x 100 mm
- 100 x 75 mm
- 125 x 70 mm
- 125 x 100 mm
- 150 x 100 mm
Pipes lengths available:
- 1829 mm (6 ft)
- 1219 mm (4 ft)
- 914 mm (3 ft)
- 610 mm (2 ft)
Fittings:
- Access pipes
- Bends
- Branches
- Loose sockets
- Diverter kits
- Rectangular to round connectors
- Offsets
- Shoes
- Holderbats
- Ornamental earbands
- Sundries
- Plus bespoke fittings
Hoppers:
- H0
- H1 - Flat Back
- H1A - Corner
- H460 - Rectangular
- Plus bespoke options
Finishes available:
- Grey transit primer
- High gloss black
- RAL/ BS colour
- Colour match
General information
Color | Black Grey Other |
Finish | Gloss |
Material | Cast iron |
Shape | Rectangle Square |
Length | 610 mm 914 mm 1219 mm 1829 mm |
Width | 75 mm 100 mm 125 mm 150 mm |
Warranty description | Other |
Uniclass | |
CAWS | R10/380 Cast iron pipework - spigot and socket |
SKU Code | RT4301E |
Specification data - Cast iron rainwater pipes and fittings
Standard | To BS 460. |
Section | Square. |
Form | With projecting ears. Without ears. |
Size (nominal) | 75 x 75 mm. 100 x 100 mm. |
Finish and colour | |
Finish | Primer with rust inhibitors. Two-pack polyurethane high gloss topcoat. |
Colour | Primer (grey). RAL 9005. Guidance for specification option: As standard. RAL/ BS colour. Guidance for specification option: Insert requirements. Colour match. Guidance for specification option: Insert requirements. |
Integral accessories | Access pipes. Guidance for specification option: Eared/ plain. Bends. Guidance for specification option: 92.5°, 112.5°, 135°. Branches. Guidance for specification option: 92.5°, 112.5°, 135°. Loose sockets. Guidance for specification option: Eared/ plain. Diverter kits. Rectangular to round connectors. Offsets. Guidance for specification option: Projections - 75 mm (3’’), 115 mm (4.5’’), 150 mm (6’’), 230 mm (9’’), 305 mm (12’’), 380 mm (15’’), 457 mm (18’’), 533 mm (21’’), 610 mm (24’’). Shoes. Guidance for specification option: Eared/ plain. Brackets. Holderbats. Ornamental earbands. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements. |
Hoppers | Not required. H0. H1 - Flat back. H1A - Corner. H460 - Rectangular. |
Sustainability data
Contains Red List materials | No |
Material | Cast iron |
Recyclability | 100% |
Expected Life | 100 year |
Literature
Literature type
2023 / 2024 Trade Price List
Premier Rainwater Systems Data Sheet

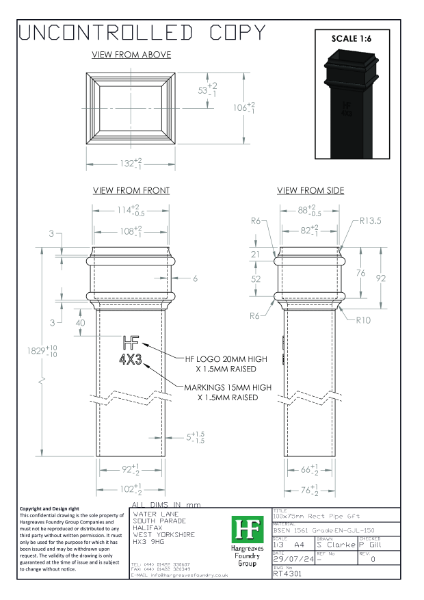

100x75mm Plain Rainwater Pipe Drawing

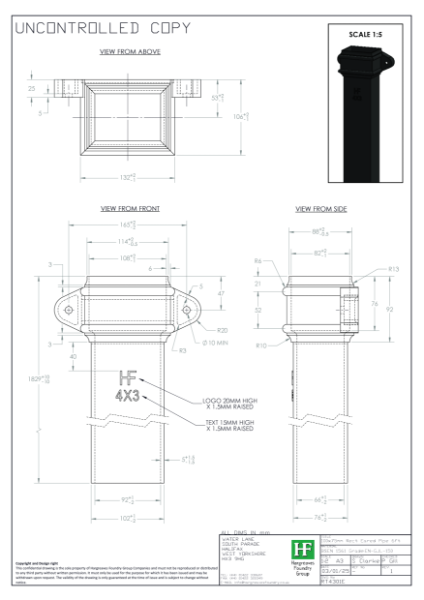

100x75mm Eared Rainwater Pipe Drawing

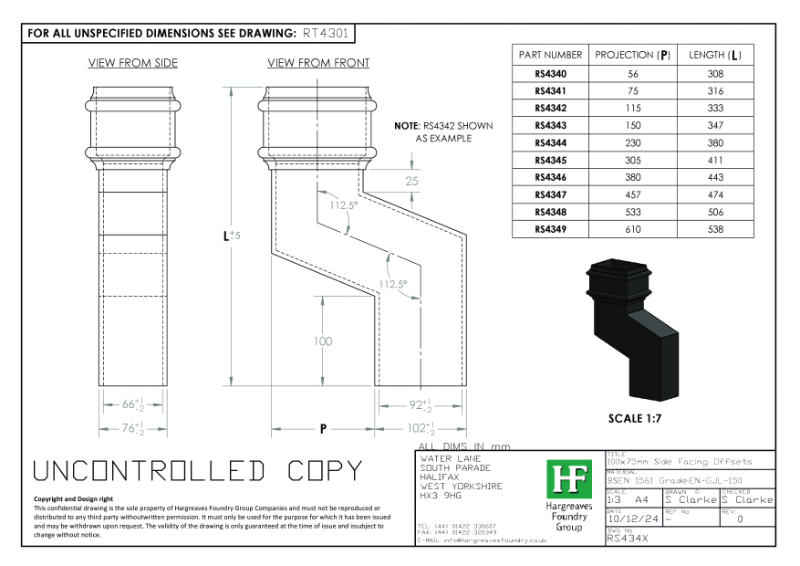

100x75mm Side Facing Rainwater Offsets Drawing

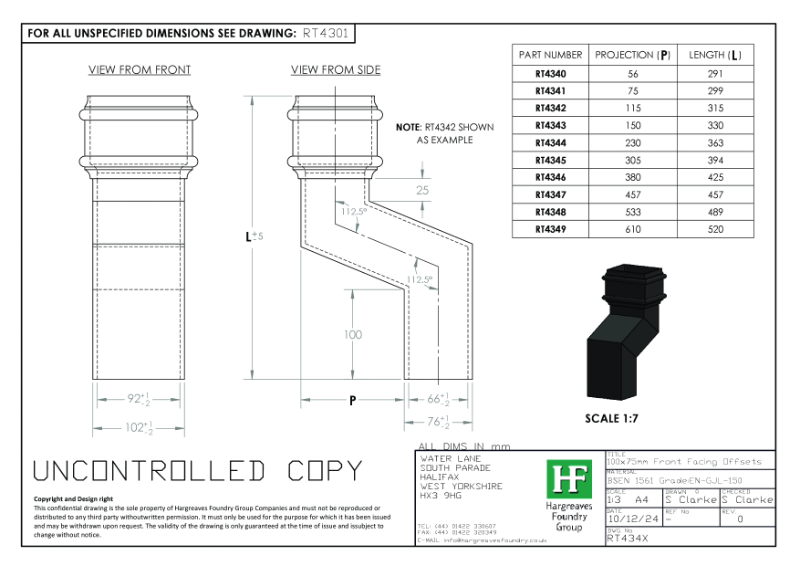

100x75mm Front Facing Rainwater Offsets Drawing
125x70mm Plain Rainwater Pipe Drawing

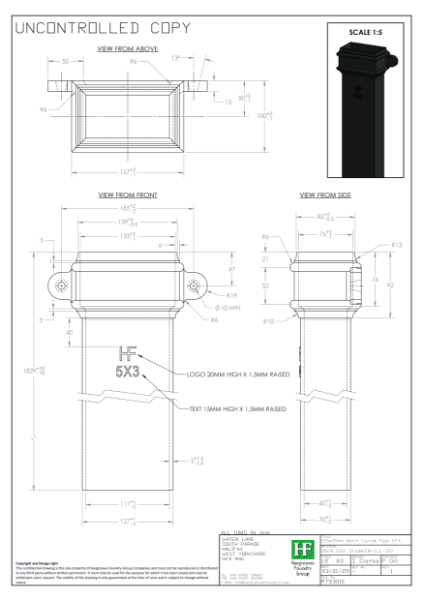

125x70mm Eared Rainwater Pipe Drawing

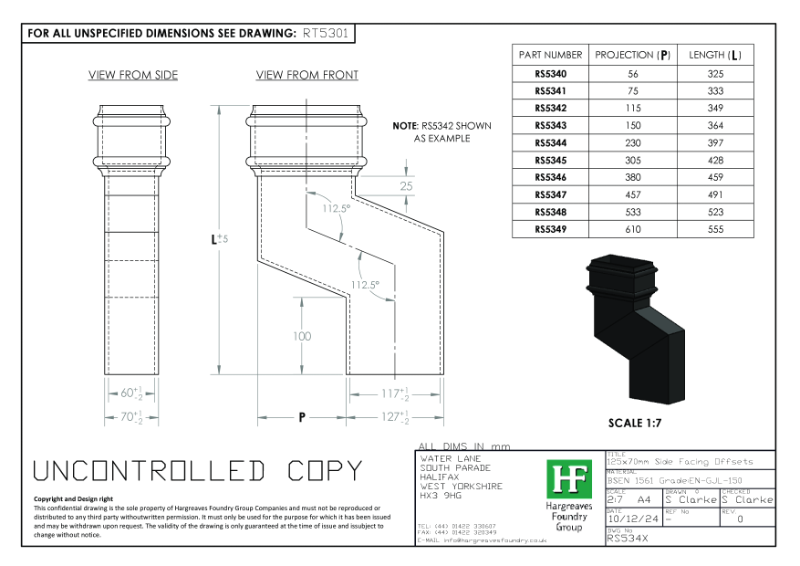

125x70mm Side Facing Rainwater Offsets Drawing
125x70mm Front Facing Rainwater Offsets Drawing

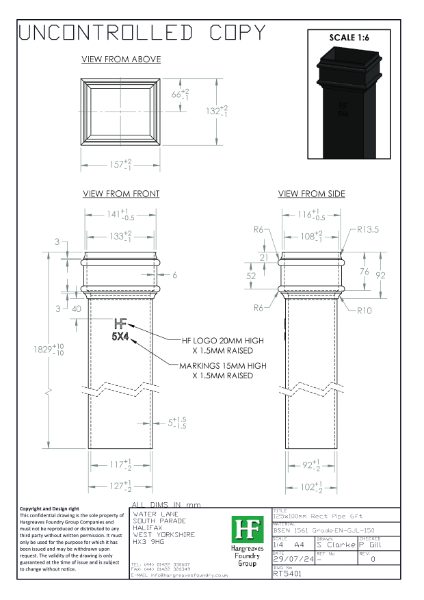

125x100mm Plain Rainwater Pipe Drawing

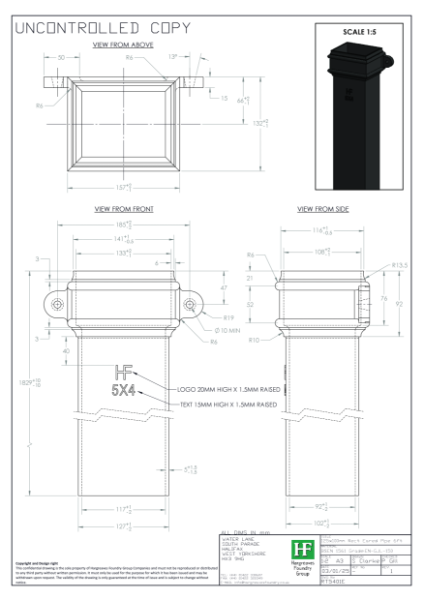

125x100mm Eared Rainwater Pipe Drawing

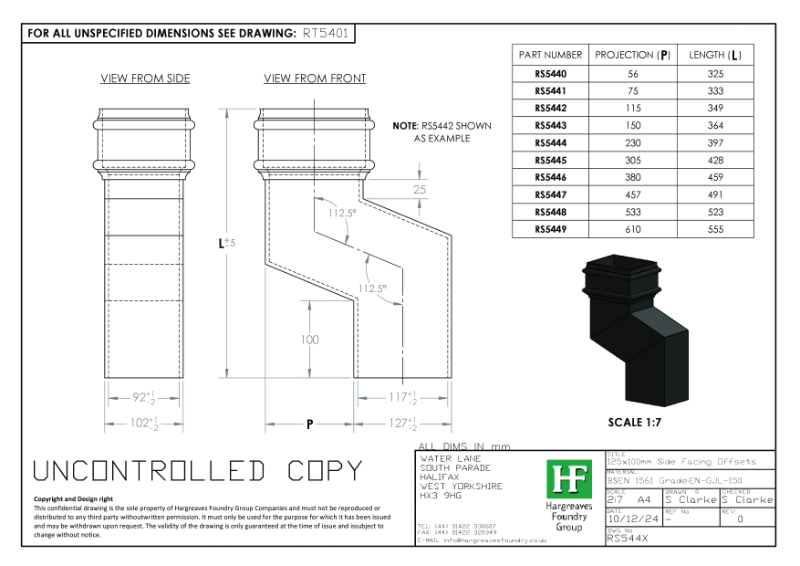

125x100mm Side Facing Rainwater Offsets Drawing

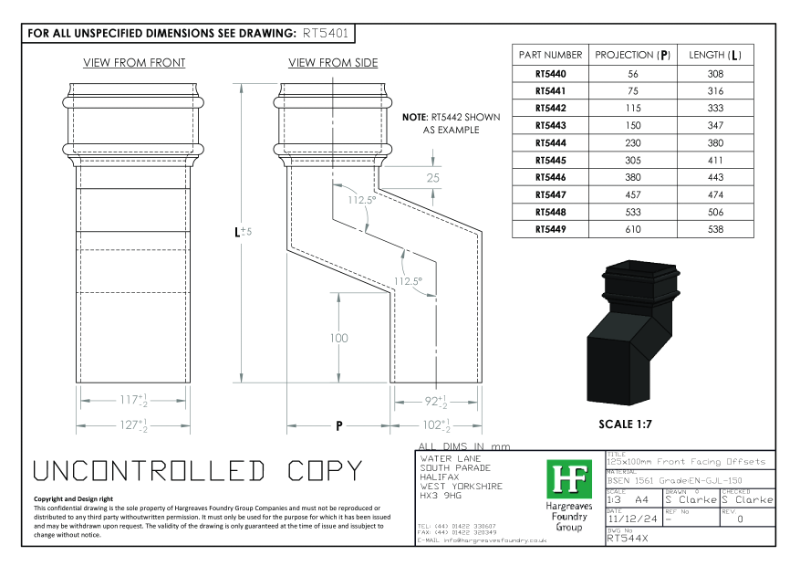

125x100mm Front Facing Rainwater Offsets Drawing

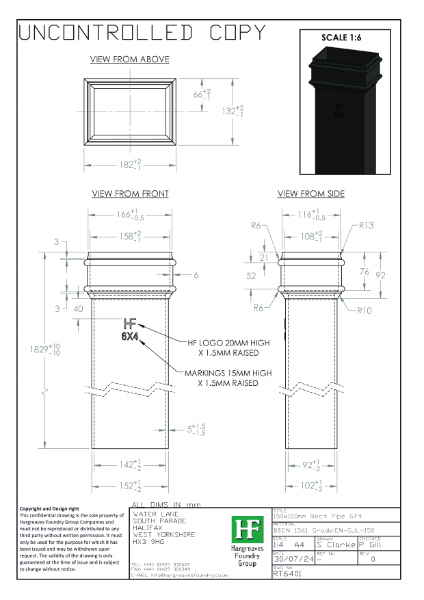

150x100mm Plain Rainwater Pipe Drawing

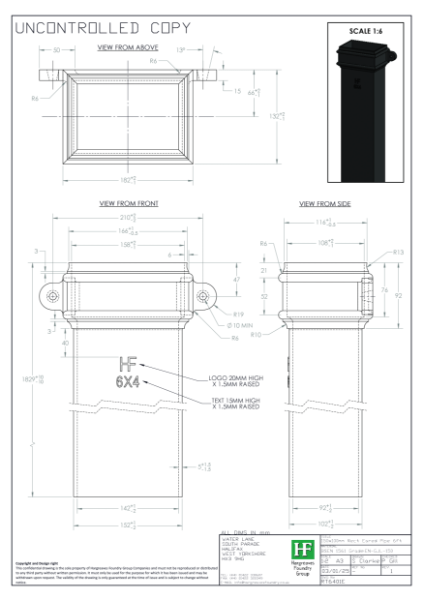

150x100mm Eared Rectangular Rainwater Pipe Drawing

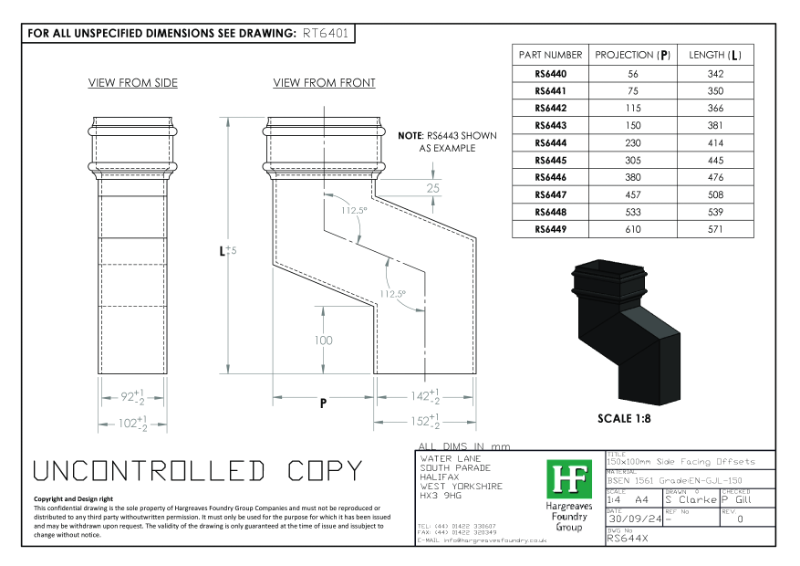

150x100mm Side Facing Rainwater Offsets Drawing

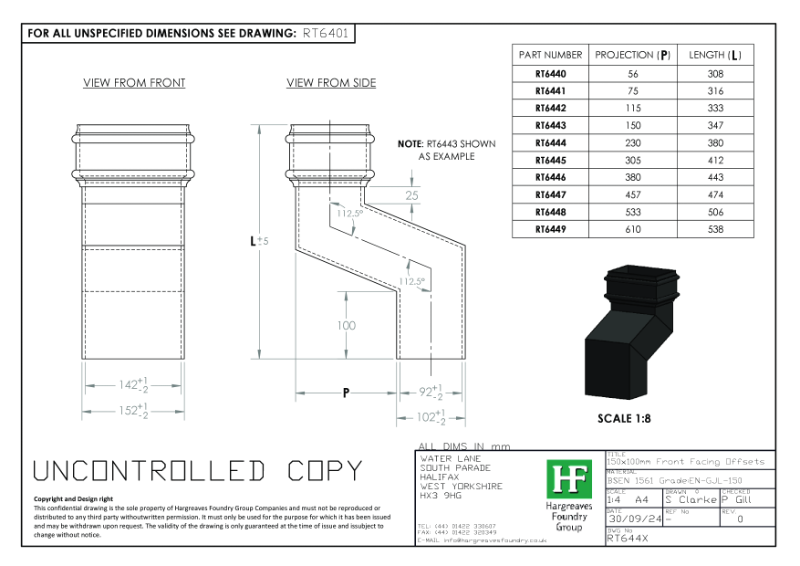

150x100mm Front Facing Rainwater Offsets Drawing

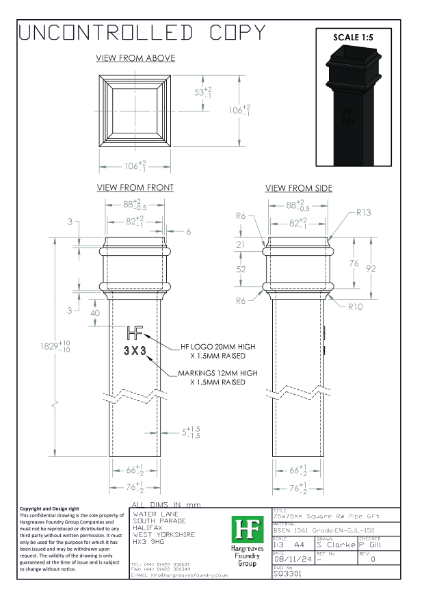

75x75mm Plain Rainwater Pipe Drawing
75x75mm Eared Rainwater Pipe Drawing
100x100mm Plain Rainwater Pipe Drawing
100x100mm Eared Rainwater Pipe Drawing
