PREFA Rhomboid Facade Tile 20 x 20

PREFA Rhomboid Facade Tile 20 x 20

PREFA UK Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

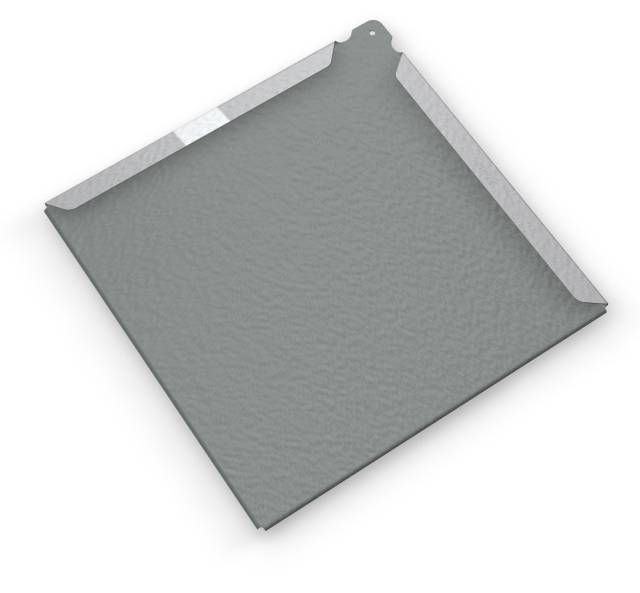

Rhomboid facade tile.

Jump to:
+44 20 7795 8124 www.prefa.com
Description

PREFA rhomboid facade tile, 20 x 20 cm format. Manufactured from lightweight aluminium, and it is suited to renovating dormers, gables and chimney cladding.

General information

Material

0.7 mm-thick aluminium alloy

Size

200 x 200 mm (cover)

Uniclass 2015

Pr_25_93_72_52 Metal tilesPrimary

CAWS

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/3 Metal roof tiling

H67/5 Metal roof tiling with counterbattens

Specification data - Metal tiles

Product Reference

PREFA Rhomboid Facade Tile 20 x 20

Colour/ Finish

01 BROWN P.10

Similar to RAL 7013.

02 ANTHRACITE P.10

Similar to RAL 7016.

03 BLACK P.10

Similar to RAL 9005.

04 BRICK RED P.10

Similar to RAL 8004.

05 OXIDE RED P.10

Similar to RAL 3009.

06 MOSS GREEN P.10

Similar to RAL 6005.

07 LIGHT GREY P.10

Similar to RAL 7005.

08 ZINC GREY P.10

Similar to RAL 7030.

10 PREFA WHITE P.10

Similar to RAL 9002.

11 NUT BROWN P.10

Similar to RAL 8019.

12 METALLIC SILVER

Similar to RAL 9006.

25 IVORY

Similar to RAL 1015.

43 STONE GREY P.10

Similar to RAL 7031.

Accessories

None

Prefa starter strip 1800 x 158 x 1 mm

Standard product features

Material:

0.7 mm-thick aluminium alloy.

Visible side:

Coil-coated aluminium (two layers including a primer and colour finish).

Rear:

Protective paint.

Size:

200 x 200 mm (cover).

Fastening:

Direct, using one ring nail per tile (25 ring nails per m²).

Installation:

On fully boarded substrate (thickness in accordance with national guidelines or regulations; PREFA recommends 24 mm).

Weight:

2.8 kg/m² (25 pieces per m²).

Product Options

Colour/ Finish:

Standard colours are supplied with a stucco surface. Smooth finish is also available on request.

Third party certifications
