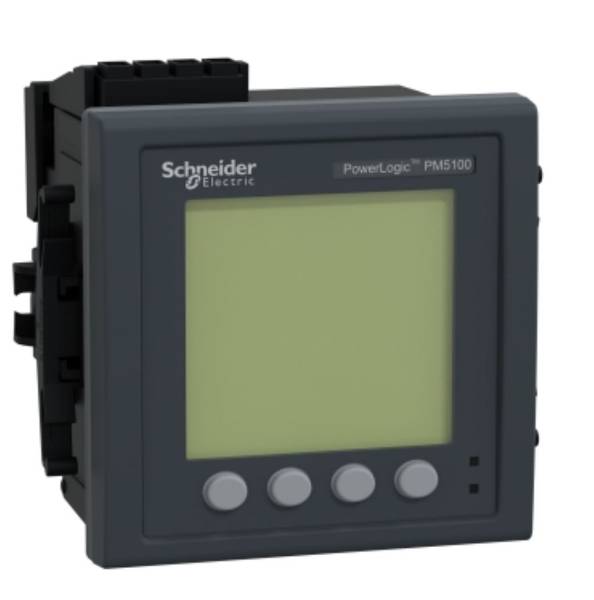

PowerLogic PM5000 - Digital Meter
Verified by manufacturer 10 months ago
Energy cost and basic network management meter.
Application
The PowerLogic PM5000 series meters are capable of essential cost management applications:
- Cost allocation to aggregate energy consumption of all utilities (i.e., WAGES) and allocate costs per area, per usage, per shift, or per time within the same facility
- Sub billing to charge tenants for individually measured utility (i.e., WAGES) usage
- Bill checking to verify that the utility only charged for actual energy usage
The PowerLogic PM5000 series meters are also suitable for sub-metering applications, as the meters track real-time power conditions and monitor control functions, provide basic power quality values, and monitor equipment and network status in an effort to increase network reliability and power availability.
Description
Compact, versatile meters for energy cost and basic network management applications.
Features and benefits:
- Accuracy class 0.2S (PM5500 models) and 0.5S (PM5100, PM5300 models) for active energy metering
- Compliance to regulations EN50470-1/3 (MID), IEC 61557-12, IEC 62053-21/22, IEC 62053-23
- Dual Ethernet ports (PM5500 models) to daisy chain meters together - less wiring, simpler installation
- Ethernet-to-serial gateway functionality
- Onboard web pages (PM5500 models) for viewing real-time and logged information
- Cyber security enhancements to help ensure data integrity
- Data logging (PM5300, PM5500 models) locally in non-volatile memory ensures that information is not lost during a power or communications outage
- Multiple tariffs (PM5300, PM5500 models) gives flexibility in the billing structure
- Individual harmonics in addition to THD and TDD to help locate the source of disturbances
- Graphical display with intuitive menu-driven navigation means information is easy to locate and read (optional remote display for PM5563 meters)
- Compact design, two clips for mounting
- 4 current inputs (PM5500 models)
- Extended voltage range (direct connection up to 690 V L-L)
- Real-time clock with battery back up.
- End users benefit
- Comprehensive, consistent and superior performance with compliance to international metering standard IEC 61557
- Precision metering and sub-billing thanks to energy metering compliance to IEC 62053-22 Class 0.5S to 0.2S
- Help save on energy costs through demand logging with timestamp, alarms and relays
- Billing flexibility with compliance to MID and support for up to 8 different tariffs
- Improve electrical network management with power quality analysis features
- Ease of use with intuitive menu-driven navigation and support for eight different languages
- Complete WAGES monitoring due to four Digital Inputs and two Digital outputs (solid state)
- Seamless integration with StruxureWare Power Monitoring Expert software
- Panel builders benefit
- Ease of installation thanks to numerous design features means less time to install and more savings
- Ease of programming due to an enhanced, intuitive, menu-driven graphical user-interface
- Cost effectiveness for the price sensitive panel builder, as a single product or product family can meet the majority of requirements
- Aesthetically pleasing offer to help boost the panel builders’ image and reputation
- Simplified ordering for a comprehensive set of features in the best combinations - no feature overlap with option modules
- System integrators benefit
- Ease of integration into larger systems and solutions with dual Ethernet and proper protocols, thus saving them time (and money)
- Ease of setup thanks to the intuitive menu navigation on the graphical display, including phasor wiring validation, and onboard web pages
- Cost effectiveness since a single product (or product family) that can meet the majority of system requirements.
CE conforming to IEC 61010-1 and CULus conforming to UL 61010-1.
General information
Color | Black |
Shape | Square |
Length | 96 mm |
Width | 72 mm |
Height | 96 mm |
Warranty description | 18 months |
Uniclass | |
CAWS | V90/430 Electrical accessories |
Specification data - Digital metering equipment
Display | Monochrome graphic LCD, 128 x 128 pixels. |
Rated voltage | 90–450 V a.c. |
Current measuring range | 50–8500 mA. |
Rated frequency | 45–65 Hz. |
Metering functions | Current |
Mounting | Flush-mounted. |
Ingress protection (minimum) | IP54 display: Conforming to IEC 60529. |
Outputs | One digital. |
Type: | Manufacturer guidanceA variety of PowerLogic PM5000 units are available, please consult technical literature for details and insert requirements. |
NominalSupplyVoltage | 24 V a.c (±15 %). |
Flame retardant | UL94-5VB. |
Communications | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V. |
Standard | UL 61010-1. |
Network type | 1P + N |
Connections | Voltage circuit: screw terminal block4. |
Sustainability data
Contains Red List materials | No |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 195 kg CO₂ eq/unit Self declared Guidance for specification option: Life cycle assessment has been performed on the following life cycle phases: Materials and Manufacturing (M), Distribution (D), Installation (I) Use (U), and End of life (E). |
Similar products from Schneider Electric Ltd

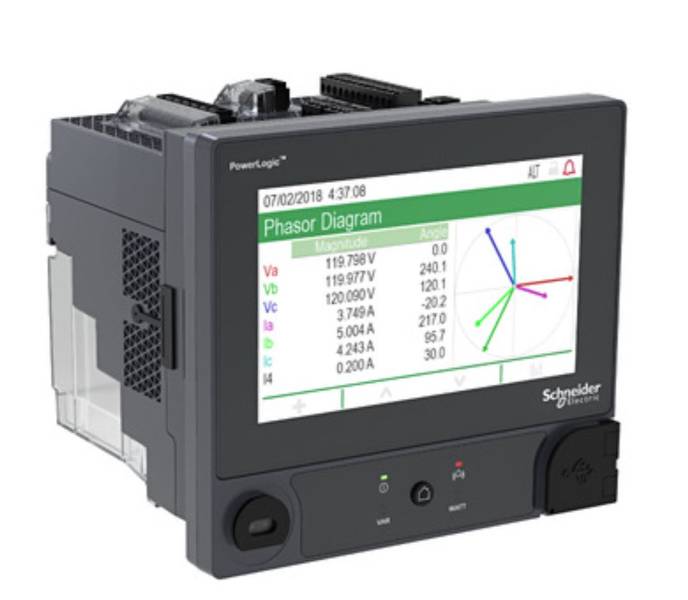

PowerLogic ION9000 - Digital Meter

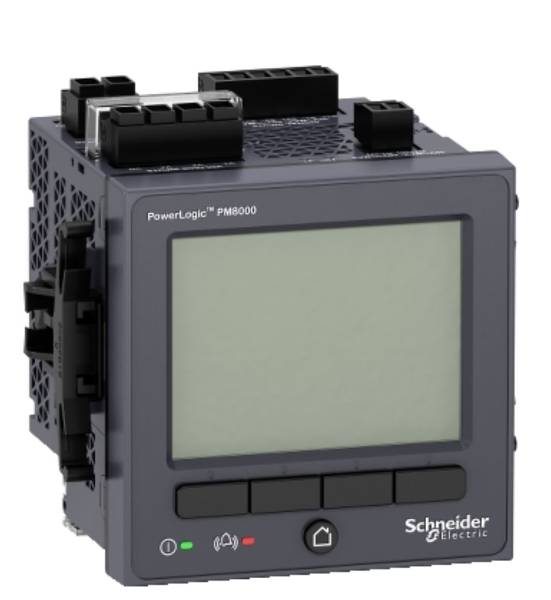

PowerLogic PM8000 Series - Digital Meter
