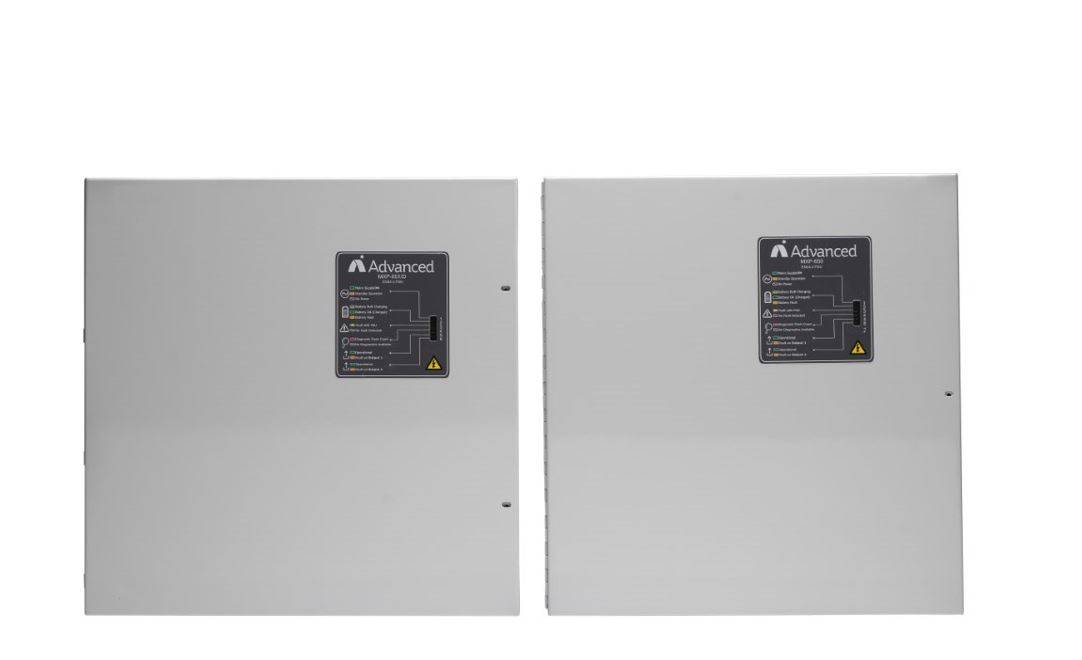

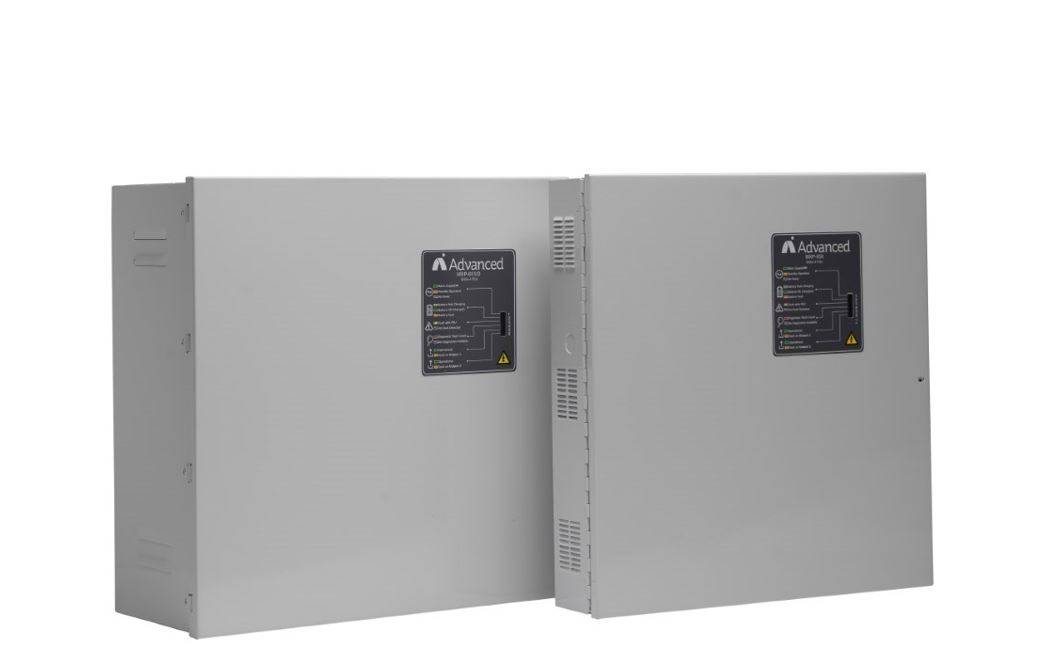

Power Supply Units
Verified by manufacturer 5 days ago
1.5 Amp (MXP-549-12V)
1.5 Amp (MXP-549-12V)
The 1.5 A, 2.5 A and 5.0 A power supply units can be used for any fire alarm system which specifies EN 54-4 power supply equipment.
Application
- For any fire alarm system which specifies EN 54-4 power supplies (e.g. BS 5839 code of practice), EN 12101 and AOV systems.
- These power supply units can be used in any fire alarm installation requiring a 24 V supply for operation.
- Indoor use only (IP30).
Description
Suited for almost any fire alarm application, the power supply unit/ battery charger has been developed using the latest surface mount technology to provide a high efficiency switch mode power supply.
The power supply units are available in fully enclosed construction providing power and fault indication or alternatively in caged versions for mounting into existing enclosures of various sizes to suit different battery capacities.
A universal AC input is provided on the 2.5 A and 5.0 A versions along with alternative enclosure sizes for all three options to support standby backup battery options.
Features and benefits:
- A range of power supply equipment with power output options to suit most applications.
- Universal AC input on the 2.5 A and 5.0 A versions.
- High efficiency switched mode power supplies.
- Compact 1.5 A, 2.5 A and 5.0 A versions.
- A range of power supply equipment with power output options to suit most applications.
- Can be used for communications and paging devices, and for connection to alarm receiving centres.
- Load-sharing on the 2.5 A and 5.0 A versions, supporting either rapid charging or brief high-current peak-loads.
- Self-resetting battery fuse protection on the 2.5 A and 5.0 A versions.
- LED indicators on the 2.5 A and 5.0 A versions provide quick status diagnostics of the power supply.
Approvals:
1.5 A:
- EN 54-4:1997 +A1:2002 +A2:2006.
- EN 55022 Class B emissions limits.
- EN 62368-1:2014 Safety standards.
2.5 A and 5.0 A:
- EN 54-4/A2 - Fire Detection and Alarm Systems.
- EN 12101-10 Smoke and Heat Control Systems.
General information
Color | Grey |
Finish | Powder-coated |
Material | Steel |
Shape | Square |
Length | 80 mm 85 mm 180 mm |
Width | 263 mm 400 mm 420 mm |
Height | 246 mm 420 mm |
Warranty description | Three year |
Uniclass | |
CAWS | S92/420 Alarm devices S92/420 Alarm devices |
Specification data - Fire detection and alarm power supply equipment
Standard | To BS EN 5839, EN 54-4, EN 55022, EN 62368-1:2014. |
Enclosure | |
Ingress protection (minimum) | IP30. |
Material | Steel.Guidance for specification option: 1.2 mm. |
Finish | Powder-coated. |
Colour | Grey. |
Mounting | Wall mounted. |
Type | 1.5 A power supply unit. |
Dimensions | 263 x 246 x 85 mm. Guidance for specification option: W x H x D. |
NominalFrequencyRange | 50–60 Hz. |
RatedCurrent | 1.5 A (1.15 A continuous load, 0.35 A battery charge). |
RatedVoltage | 230–240 V. Guidance for specification option: Charger voltage of 13.7 V nominal at 20°C. |
Voltage | 9–14.25 V. Guidance for specification option: At minimum battery voltage of 10.6 V with mains disconnected) . |
Fuse | T3.0 A 15 mm, 250 V. |
Status | Mains fail. Manufacturer guidanceStatus indication. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel |
Manufacturing plant location | |
Recyclability | Metal enclosures are made of recyclable metal. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 2 |
 IFC | - | 2 |
Literature
Boxed power supply units 1.5A
Boxed power supply units 2.5A and 5.0A Datasheet
