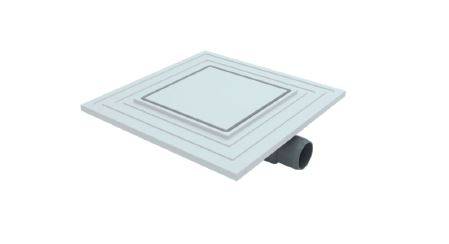

PourFlex Square - Wet Room Drain

Verified by manufacturer 2 months ago

WM | Wetroom Materials

A square wet room drainage system for Resin and Micro-cement Floors

Jump to:
+44 (0)1332 840820 Website

Application

Suitable for low-profile wet rooms showers with poured or plastered floorings such as epoxy resin and micro cement. The Floor finish is applied to the drain to create the finish.

Description

A square wet room drainage system manufactured specifically for poured floors such as resin, micro cement and troweled floors such as tadelakt. The PourFlex Square drain allows for a wet room to be created without any visible metal or grout lines.


Features and benefits:

  • 100% waterproof.
  • Designed for poured floors.
  • Ten year guarantee.
  • Easy to install.
  • Level floor access achievable.
  • Freestanding placement.
  • Pressed stainless steel body.
  • Edges can be sanded to suit floor thickness.
  • Flexible placement.

General information

Color

White

Material

Stainless steel

Plastic

Shape

Square

Length

150 mm

Guidance for specification option:

Visual length of 60 mm.

Width

150 mm

Guidance for specification option:

Visual length of 60 mm.

Height

66 mm

Manufacturer guidance

Drain depth.

Warranty description

Ten year

Uniclass

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Standard

To BS EN 1253.

Body

-

Material

Stainless steel.

Cover or grating

-

Cover or grating type

Solid covers.

Guidance for specification option:

Poured floor applied onto PourFlex panel.

Material

Cast solid surface and stainless steel.

Finish

To be finished in the floor material.

Water trap

30 mm.

Manufacturer guidance

Water trap height.

Capacity

24 L/min.

Dimensions

150 x 150 x 66 mm.

Guidance for specification option:

L x W x D.

Sustainability data

Material

Stainless steel

Plastic

Literature

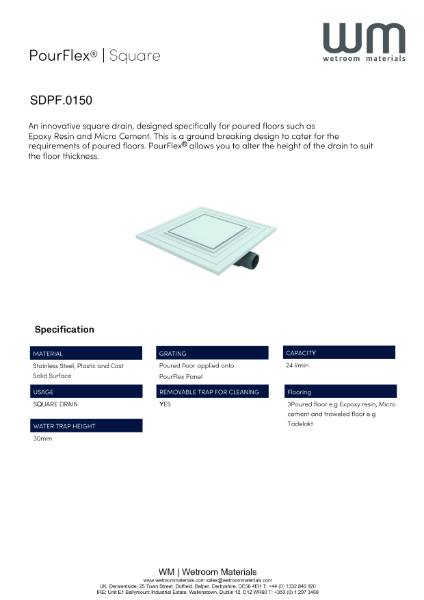

C_WM_SD_PF_SDPF.0150 Datasheet

C_WM_SD_PF_SDPF.0150 Datasheet

PourFlex Square Data Sheet

PourFlex Square Data Sheet

WM | Wetroom Materials - The Sharp Collection Brochure

WM | Wetroom Materials - The Sharp Collection Brochure

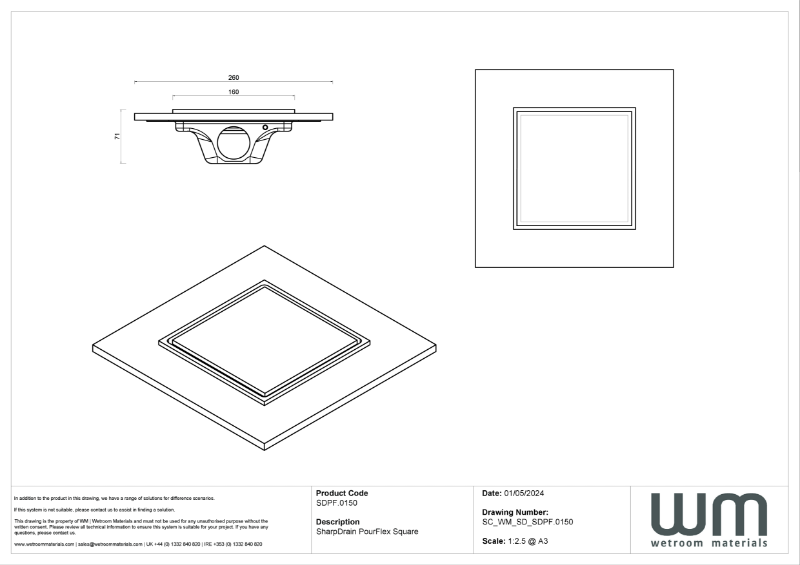

WM Pour Flex Square

WM Pour Flex Square
