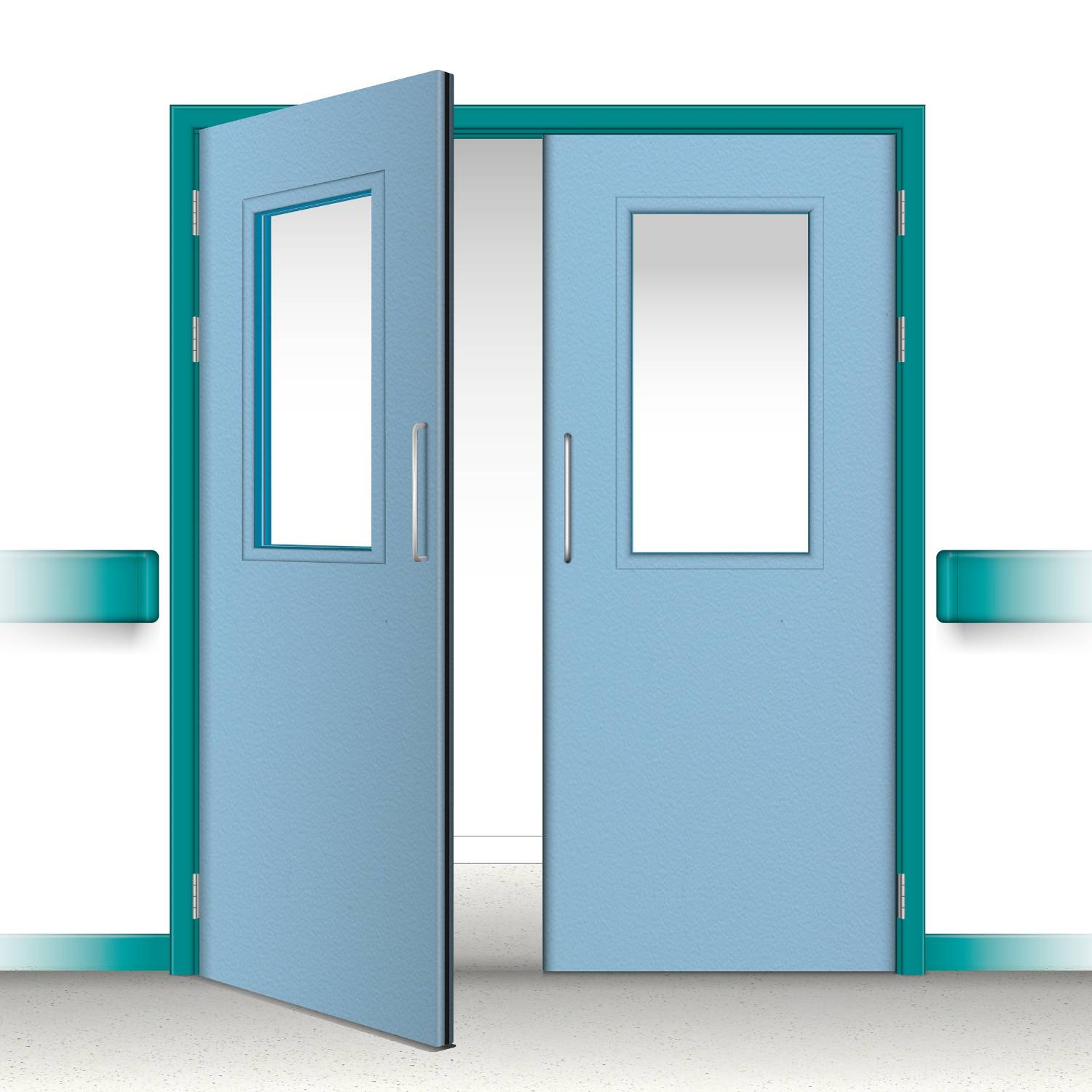

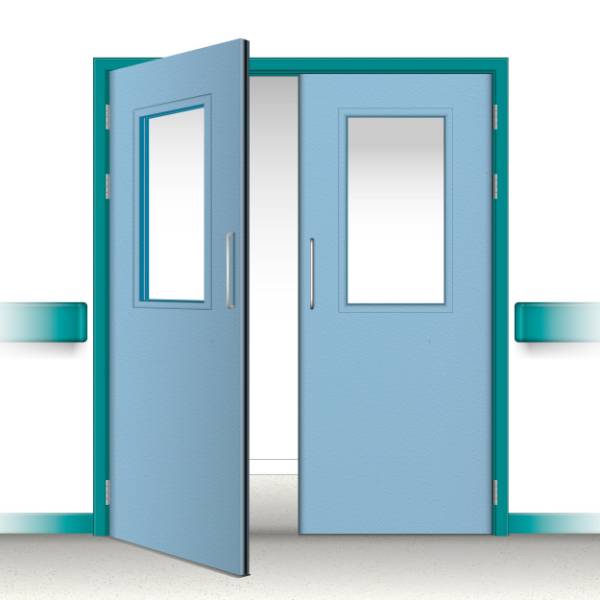

Postformed Double Doorset - Vision Panel 13

Application

SDS Protection's severe performance doorsets are highly appropriate for use within the demanding environs of Healthcare, Retail, Leisure, Educational and Commercial buildings.

Description

SDS Protection’s postformed doorsets are exceptionally durable, aesthetically pleasing and versatile in configuration. Wide design flexibility is presented through four distinctive thermoplastic door facing options allied to multiple colours, vision panel choices, frame designs and fire ratings.


Features and benefits:

  • Severe Duty Post-formed Doorsets manufactured in UK by SDS Protection.
  • Economically advantageous due to extended lifecycle.
  • NFR, FD30(S), FD60(S) fire rating options.
  • Multiple leaf sizes and frame configurations to suit site requirements.
  • dFend traditional thermoplastic encapsulating option - 25 colours.
  • durablend™ PVC-free thermoplastic encapsulating option - 25 colours.
  • Hydroclean smooth thermoplastic encapsulating option - 32 colours.
  • Woodgrains faux wood encapsulating option - six timber effects.
  • Privacy vision panels available.
  • Replaceable door edge protection available in contrasting colours.

General information

Color

Many options available, consult manufacturer's literature.

-

Finish

Multiple finishes available.

Material

Wood

Wood with thermoplastic cladding.

Shape

Rectangular

Size

1936 x 2100 mm

Uniclass 2015

Pr_30_59_24_16 Composite doorsetsPrimary

CAWS

L20/20 Wood flush doors

L20/410 Wood doorsets

Specification data - Composite doorsets Enhanced data

Standard

To BS EN 1192, Class 4.

Third party accreditation

IFC, BM Trada.

Configuration

Double leaf, single action.

Doorset size

1936 x 2100 mm.

Performance

-

Fire performance

-

Fire integrity

Non fire rated.

FD30(S).

FD60(S).

Smoke control

Non fire rated.

FD30(S).

FD60(S).

Acoustic performance

Non acoustic rated.

30 dB.

32 dB.

35 dB.

40 dB.

41 dB.

Strength and durability

To BS EN 1192, Class 4.

Frame

-

Materials

Hardwood.

Softwood.

Threshold

Rebated.

3 Piece version.

Split-frame.

3 Piece version.

Traditional.

Perimeter seals or inserts

To suit fire and acoustic rating.

Frame accessories

Alternative frame header thickness.

To accommodate concealed closers.

Timber strip.

For joining split frames.

Door leaf

-

Thickness

48 mm.

Non fire rated and FD30.

58 mm.

FD60.

Core

Block.

Particle.

Facings

-

External

1.5 mm thick thermoplastic.

Internal

1.5 mm thick thermoplastic.

Perimeter seals

To suit fire and acoustic rating.

Beading

-

Type

Flushglaze.

Overclad.

Finish

dFend.

Durablend.

Hydroclean.

Door accessories

Cappings.

Door edge protection.

Kickplates.

Hardware

Butt hinges.

Supplied with 25 year guarantee.

Architraves

-

Material

Timber core with thermoplastic cover.

Finish

Postformed colours - consult manufacturer's literature.

dFend encapsulated.

durablend™ encapsulated.

Hydroclean encapsulated.

Woodgrains encapsulated.

Lacquered hardwood.

Pre-primed.

Uniclass 2015 Title

Composite doorsets.

Product Reference

Postformed Double Doorset - Vision Panel 13 3Piece 1936 x 2100 mm

Postformed Double Doorset - Vision Panel 13 Traditional 1936 x 2100 mm

Frame finish

Fully encapsulated - dFend, Fully encapsulated - Durablend, Fully encapsulated - Hydroclean, Fully encapsulated - Woodgrain, Lacquered, Pre-primed.

Type

Clear.

Frosted.

Integral blind.

Privacy panel.

Smart glass.

Door leaf glazing size

750 x 500 mm.

Glass thickness

7 mm.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

3

1.3
Revit

Revit 2016

4

2.0
Download now from NBS National BIM Library
