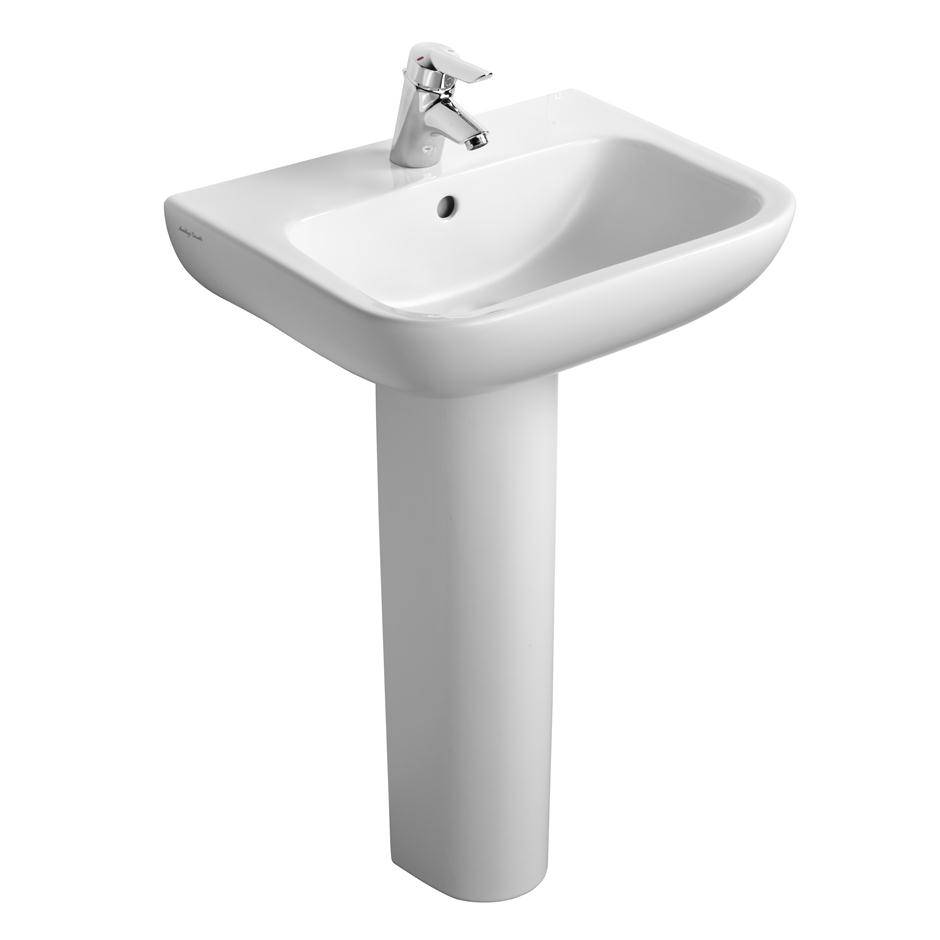

Portman 21 55 cm Washbasin
Description

Portman 21 pedestal washbasin 55cm 1 taphole with overflow

  • Commercial and domestic use
  • 2 sizes 50 & 55cm with 1 or 2 taphole options

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Color

White

Features

55 cm 2 tapholes with overflow and chainstay hole

55 cm 3 tapholes with overflow and chainstay hole

55 cm pedestal washbasin 1 taphole with overflow

Material

Vitreous china

Shape

Sculptured

Size

547 x 441 x 185 mm

WarrantyDescription

Manufacturers warranty

Uniclass 2015

Pr_40_20_96_63 Pedestal washbasinsPrimary
Specification data - Pedestal washbasins

Product Reference

S2478 - Portman 21 50/55cm Pedestal Washbasin

Portman 21 55cm Pedestal Washbasin 1 Taphole With overflow

S2479 - Portman 21 50/55cm Pedestal Washbasin

Portman 21 55cm Pedestal Washbasin 2 Taphole With overflow & chainhole

S2481 - Portman 21 50/55cm Pedestal Washbasin

Portman 21 50cm Pedestal Washbasin 1 Taphole With overflow

S2482 - Portman 21 50/55cm Pedestal Washbasin

Portman 21 50cm Pedestal Washbasin 2 Taphole With overflow & chainhole

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Pedestal

S2989 - 21 Pedestal

Portman 21 Pedestal

S2991 - Semi Pedestal

Portman 21 Semi-Pedestal

Not required

Standard product features

Washbasin:

  • Capacity: 5.9 litres
  • Material: Vitreous China
  • Weight: 13.80 kg
  • Standards: Vitreous china to BS 3402. Washbasin to BS EN 14688 & BS EN 31

Pedestal:

  • Material: Vitreous China
  • Weight: 6.25 kg

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 2.27 kg
  • Flowrate: 5.00 lpm @ 3bar

Trap:

  • Material: Plastic
  • Weight: 0.20 kg

Product Options

Washbasin wall mounted using E0157 wall fixing set with semi pedestal screwed to wall or full pedestal mounted using 2 screws through the back of the basin (not supplied).

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2014 1 1.2
Download now from NBS National BIM Library
