Porta 100 HMD (Sliding Door Hardware)
Verified by manufacturer 4 months ago
EPD
Certificate type

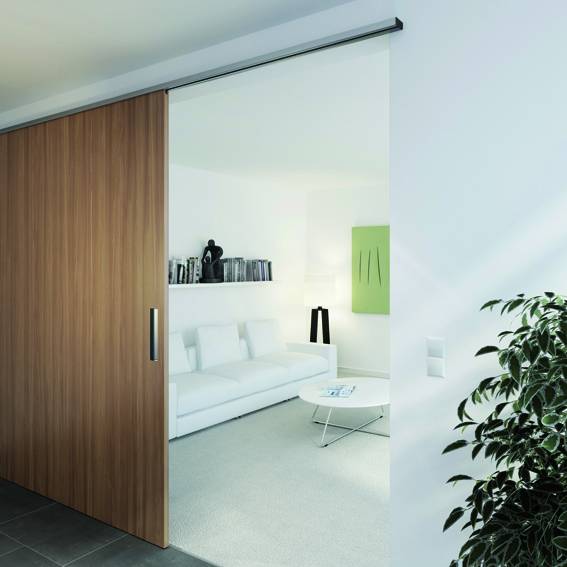

Wall mounted sliding door mechanism with low installation height and, designed for use with one wooden door weighing up to 100 kg.
Application
Suitable for sliding wooden doors in locations such as:
- Private living areas.
- Private and public offices.
- Interior furnishings.
Description
Wall mounted sliding door mechanism with low installation height, designed for use with one wooden door weighing up to 100 kg.
Features and benefits:
- Adjustable stopper force.
- Ball-bearing running gear.
- Installation height (minimum): 31 mm.
- Tested in accordance with DIN EN 1527.
Suitable for use with door panels:
- Panel thickness: 30–40 mm.
- Maximum panel width: 1600 mm.
- Maximum panel height: 2700 mm.
- Maximum panel weight: 100 kg.
Components:
Quantities of each component may vary, consult manufacturer for details.
- Fittings available individually or in set with track. Spare parts available on request.
- Running track.
- Four-wheeled trolley x 2, with ball bearings and plastic rollers.
- Recessed support bracket (vertically adjustable).
- Adjustable plastic floor-guide with roller (anthracite finish).
- Plastic stopper with retention spring x 2 (grey finish).
- Supplied with plastic brush for track cleaning.
General information
Color | Grey Black |
Finish | Anodized |
Material | Aluminium Wood |
Shape | Rectangle |
Warranty description | Two year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear N10/110 Purpose-made N10/10 Purpose-made |
Product range |
Specification data - Door track and running gear
Standard | To EN 1527. |
Third-party certification | Bern University of Applied Science, Biel, Switzerland. |
Classification grades (minimum) | |
Durability | 6. |
Door mass | 2. |
Initial friction | 3. |
Form | Aluminium, black, pre-drilled, hexagonal profile, top hung running track.Aluminium, plain anodized, pre-drilled, rectangular profile, top hung running track. |
Mounting | Wall. |
Running track | 2000 mm, rectangular profile. Guidance for specification option: Standard. 2500 mm, hexagonal profile. 2500 mm, rectangular profile. 3500 mm, hexagonal profile. 3500 mm, rectangular profile. Manufacturer guidancePre-drilled. |
Floor guide mounting | Floor mounted. Guidance for specification option: Standard. Wall mounted. |
Soft and self-closing mechanism | Required. Not required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Recyclability | Yes |
Third party certifications
Third party certifications
EPD
Hawa EPD Sliding door gear EN
Literature
CAT_EN_Hawa_Porta_100_HMD
