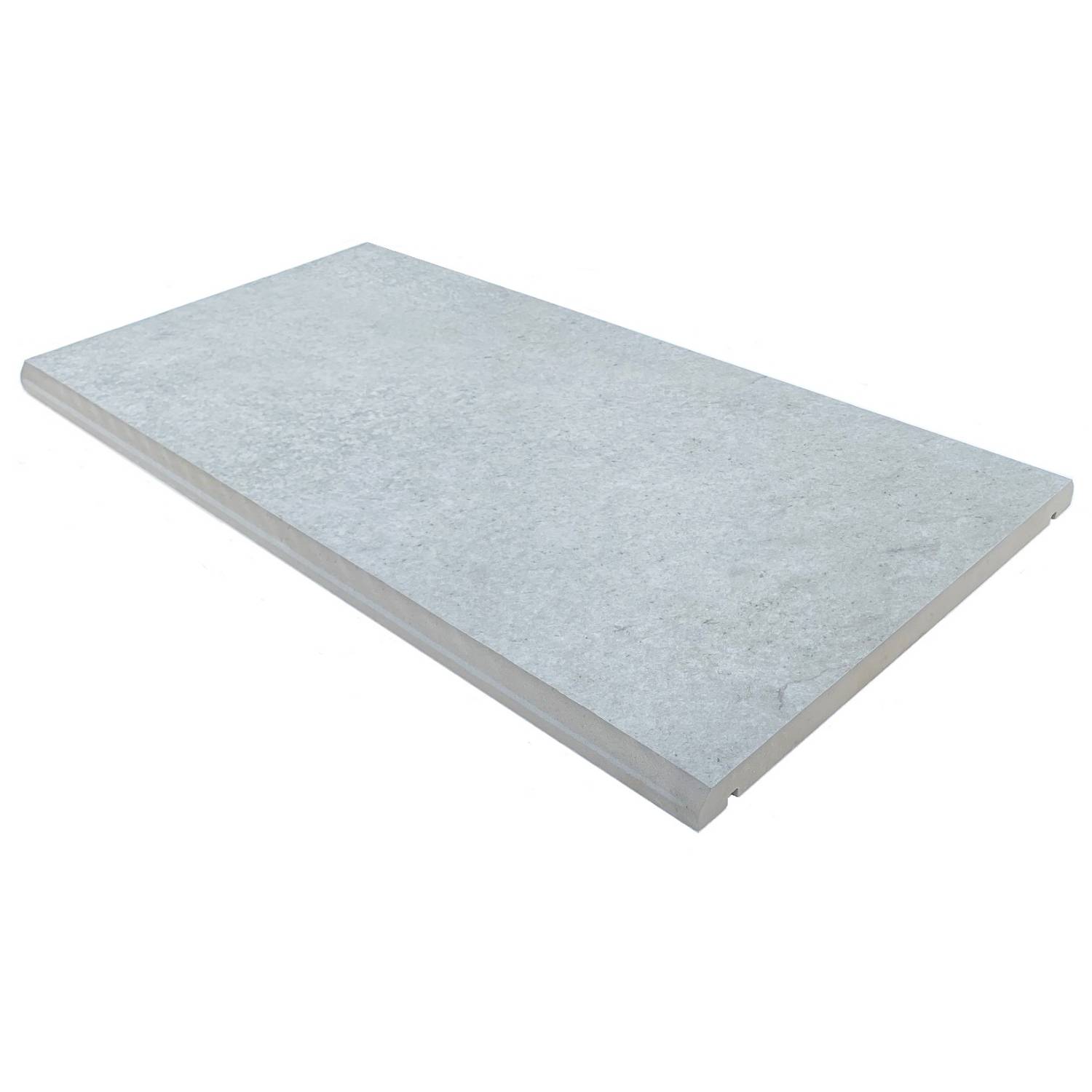

Porcelain Coping Stone - Coping Stone
Verified by manufacturer 1 month ago
150 x 600 x 20 mm
150 x 600 x 20 mm
ISO 9001 Quality Management
Certificate type
High-quality porcelain coping stone.
Application
Suitable for use on top of walls, piers and masonry.
Description
High-quality porcelain coping stone.
Features and benefits:
- Non-porous, and therefore helps to keep water ingress to a minimum.
- Will not stain, and will maintain original colouring.
- Low maintenance.
- Fully tested for frost resistance, water absorption, chemical resistance and stain resistance.
- Designed with drip checks to both sides to prevent rainwater running under the coping stone and onto the face of the wall.
- Available in a range of colours and sizes.
General information
Color | Beige Grey Blue Manufacturer guidanceBluestone natural, Hammerstone grey, Hammerstone Beige. |
Finish | Smooth |
Material | Porcelain |
Shape | Rectangle |
Length | 600 mm |
Width | 150 mm |
Height | 20 mm |
Warranty description | Five year |
Uniclass | |
CAWS | F31/105 Precast |
Product range |
Specification data - Clayware coping units
Material | Porcelain. |
Appearance | Bluestone Natural.Hammerstone Grey.Hammerstone Beige. |
Durability | To ISO 101, Class 6–11 (minimum). |
Coping type | Flat. |
Dimensions | 150 x 600 x 20 mm. |
Finish | Non-porous. |
Holes for fixing | Not required. |
Weight | 4 kg. |
Water absorption | To ISO-10545-3, <0.10 %. |
Modulus rupture | To ISO-10545-4, 40 N/mm². |
Abrasion resistance | To ISO-10545-7, Class 4-5. |
MOHs hardness scale | To EN 101, Class 6-11. |
Sustainability data
Contains Red List materials | No |
Country of material origin | India |
Country of product manufacture | India |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
Literature
Porcelain Coping Stone - Data
Porcelain Coping Stone - Install Guide
Product Brochure
