PolyWRAP Column Protector - Warehouse Column Protector
Verified by manufacturer 3 months ago
PolyWRAP Column Protector: Enhance safety with this highly visible solution, cushioning against HGV/MHE impacts. Ideal for industrial settings where column protection is vital for property owners.
Application
PolyWRAP Column Protector - Warehouse Column Protector: suitable for protection of structural columns and vehicles from damage.
- Industrial Warehouses: Safeguard structural columns from HGV/MHE impacts, preventing damage to assets and ensuring worker safety.
- Manufacturing Facilities: Protect columns from collisions with heavy machinery, maintaining a productive and safe working environment.
- Loading Docks: Enhance safety during loading and unloading procedures by absorbing impacts and preventing damage to columns and vehicles.
- Commercial Parking Lots: Provide effective protection against accidental collisions, minimizing damage to columns and vehicles in busy parking areas.
Description
PolyWRAP Column Protector - Warehouse Column Protector: designed to safeguard structural columns and vehicles from damage.
Features and benefits:
- The air cushion impact energy-absorbing design reduces the risk of operator injury.
- Stackable design ensures easy recognition by HGV and MHE operators.
- Clam-shell design with a dimple and rib feature offers a 20 mm tolerance on steel column dimensions.
- Secured by two black 25 mm, 250 kg rated ratchet action webbing straps.
- Polyethylene mouldings can withstand a temperature range of -40 to +90 degrees.
- Manufactured in the UK from medium-density polyethylene.
- Designed and tested to withstand impacts in excess of 2.5 tonnes at 7 mph.
- Optional steel skirting for fork and pallet impact.
General information
Color | Yellow Black |
Finish | Other Bright |
Material | Polyethylene |
Shape | Other Square |
Length | 650 mm |
Width | 650 mm |
Height | 1040 mm |
Uniclass | |
CAWS | Q41/135 Proprietary protective barriers Q41/135 Proprietary protective barriers |
Specification data - Column guards
Material | Polyethylene. |
Column protector width | 650 mm. |
Column protector height | 1040 mm. |
Colour | Yellow.Black. |
Fixings | Two 25 mm wide ratchet straps. |
Temperature range: | -40°C to +90°C. |
System accessories | Optional steel skirting for fork and pallet impact. |
Configuration | PW-150. PW-200. PW-250. PW-600. PW-900. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

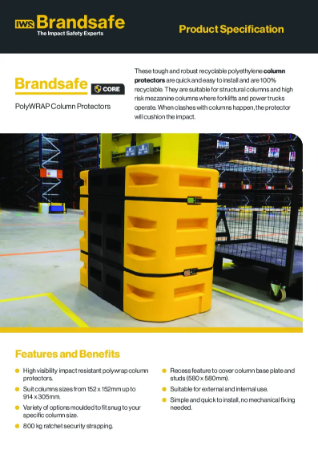

PolyWRAP Column Protector - Brandsafe Spec Sheet
