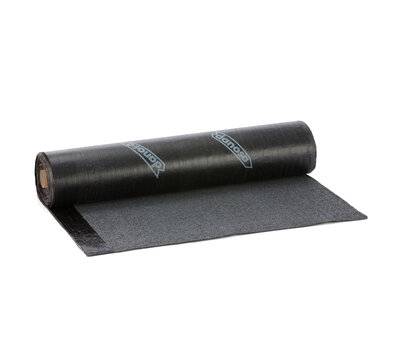

Polydan Pro60 - Bituminous Capsheet
Verified by manufacturer today
BBA Agrément Certificate
Certificate type
Bituminous, SBS-modified capsheet reinforced with a heavy non-woven polyester felt.
Application
- Cap sheet in multi-layer waterproofing systems.
- Cap sheet in multi-layer systems with heavy protection.
- Cap sheet in single-layer waterproofing systems.
Description
Polydan Pro60 is a bituminous SBS-modified capsheet reinforced with a heavy non-woven polyester felt. The upper surface is finished with mineral chippings. The underside has a quick-melt thermofusible film. Designed for torch-applied applications and Safe2Torch details using hot-air welding.
Features and benefits:
- Long life expectancy.
- High dimensional stability.
- High tensile strength and high elongation at break.
- High resistance to tearing.
- High resistance to static and dynamic piercing.
- Total impermeability to water and water vapour.
- Rot-proof.
- Very stable in the long term.
General information
Color | Black |
Finish | Textured |
Material | Bitumen |
Shape | Rectangle |
Length | 8000 mm |
Width | 1000 mm |
Height | 3.9 mm |
Uniclass | |
CAWS | J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/14 Reinforced bitumen membrane inverted roof covering J41/400 Built-up reinforced bitumen waterproof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/12 Reinforced bitumen membrane cold deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering |
SKU Code | 141124 |
Specification data - Reinforced bitumen roofing sheets
Classification data | |
Standard | To UNE-EN 13707. |
Third-party certification | British Board of Agrément (BBA) Certificate. |
Performance characteristics | Manufacturer's standard. Guidance for specification option: See below for individual and 'other' characteristics. |
Environmental performance requirements | |
Volatile organic compounds (VOC) emissions level (maximum) | To ISO 16000-6:2006, 50 µg/m³ (A+). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35%. |
Material | |
Carrier material | Polyester. |
Bitumen modification | Elastomeric. Guidance for specification option: SBS-modified. |
Thickness (minimum) | 3.9 mm. |
Weight (minimum) | 5.6 kg/m². Manufacturer guidanceNominal. |
Surface finish | |
Top | Mineral granules. |
Underside | Quick-melt thermofusible film. |
Colour | Black. |
Fire performance | External fire behaviour to UNE-EN 1187; UNE-EN 13501-5, BROOF(t1), BROOF(t4). |
Elongation at break | To UNE-EN 12311-1 longitudinal/ transverse, 45% ±15%. |
Reaction to fire | To UNE-EN 11925-2 and UNE-EN 13501-1, E. |
Static load resistance | To UNE-EN 12730, >20 kg. |
Resistance to impact | To UNE-EN 12691, A: >1000 mm. B: >1500 mm. |
Sustainability data
Country of product manufacture | Spain |
Manufacturing plant location | |
Material | Bitumen |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35 % Guidance for specification option: Post-consumer recycled content. |
Product certifications
BBA Agrément Certificate
GLASDAN, ESTERDAN, POLYDAN ELAST and POLYDAN PRO membranes BBA 10/4787 Product Sheet 1 Issue 5
Literature

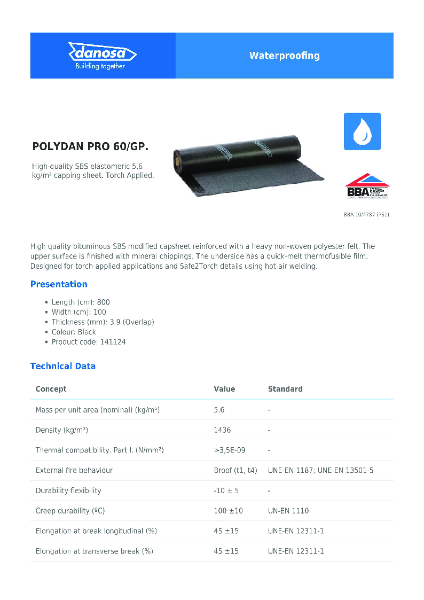

Danosa - POLYDAN PRO 60
