Polydan Pro50 Green Garden - Bituminous Capsheet
Verified by manufacturer today
Bituminous, SBS-modified capsheet for living roof applications.
Application
- Capsheet in multi-layer waterproofing systems.
- Top sheet in two-layer membranes for waterproofing of roofs with heavy bonded, unbonded or floating protection.
- Single-layer membrane for waterproofing intensive and extensive green roofs.
- Single-layer membrane for waterproofing roofs with heavy bonded, unbonded or floating protection.
- Tanking membrane.
Description

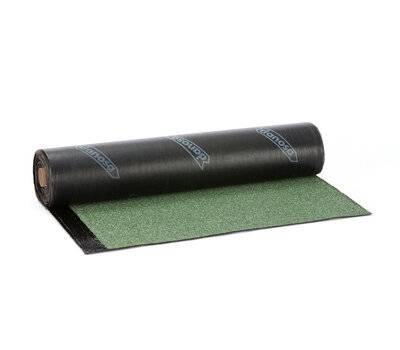

Polydan Pro50 Green Garden is a bituminous SBS-modified capsheet reinforced with a heavy non-woven polyester felt. Includes root-resistant additive for living roof specifications. The upper surface is finished with grey-green mineral chippings. The underside has a quick-melt thermofusible film. Designed for torch-applied applications and Safe2Torch details using hot air.
Features and benefits:
- High resistance to static and dynamic piercing.
- The mineral finish gives the membrane UV resistance.
- High resistance to root penetration.
- High tensile strength and high elongation at break.
- High resistance to tearing.
- Total impermeability to water and water vapour.
- Rot-proof.
- Very stable in the long term.
- Allows for adaptation to any type of geometry.
General information
Color | Green |
Finish | Textured |
Material | Bitumen |
Shape | Rectangle |
Length | 8000 mm |
Width | 1000 mm |
Height | 3.5 mm |
Uniclass | |
CAWS | J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/14 Reinforced bitumen membrane inverted roof covering J41/400 Built-up reinforced bitumen waterproof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/12 Reinforced bitumen membrane cold deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering |
SKU Code | 141102 |
Specification data - Reinforced bitumen roofing sheets
Classification data | |
Third-party certification | British Board of Agrément (BBA) Certificate. |
Performance characteristics | Manufacturer's standard. Guidance for specification option: See below for individual and 'other' characteristics. |
Environmental performance requirements | |
Volatile organic compounds (VOC) emissions level (maximum) | To ISO 16000-6, 50 µg/m³ (A+). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35%. |
Material | |
Carrier material | Polyester. |
Bitumen modification | Elastomeric. Guidance for specification option: SBS-modified. |
Thickness (minimum) | 3.5 mm. |
Weight (minimum) | 5 kg/m². Manufacturer guidanceNominal. |
Surface finish | |
Top | Mineral granules. |
Underside | Thermofusible film. |
Colour | Green. |
Fire performance | External fire performance to UNE-EN 1187; UNE-EN 13501-5, Class BROOF (t1). |
Elongation at break | To UNE-EN 12311-1 longitudinal/ transverse, 45% ±15%. |
Reaction to fire | To UNE-EN 11925-2 and UNE-EN 13501-1, E. |
Static load resistance | To UNE-EN 12730, >20 kg. |
Resistance to impact | To UNE-EN 12691, A: >1000 mm. B: >1500 mm. |
Sustainability data
Country of product manufacture | Spain |
Material | Bitumen |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35 % |
Literature

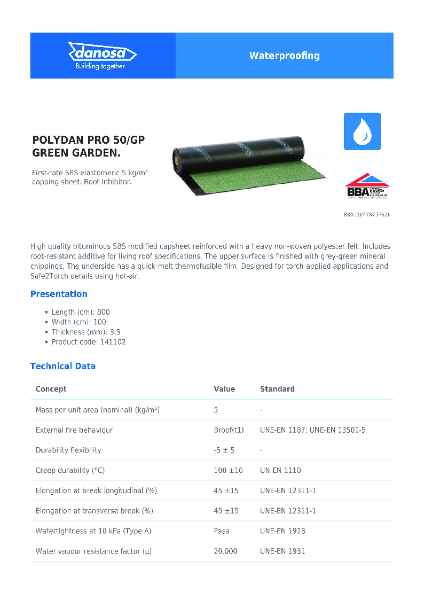

Danosa - POLYDAN PRO 50_GP GREEN GARDEN
