Compare

Polydan Pro50 - Bituminous Capsheet

Name: Polydan Pro50 - Bituminous Capsheet
Brand: Danosa UK Ltd
SKU: g1JU4t3wRJx3C3kuQK3tjg

Verified by manufacturer today

Danosa UK Ltd

Product certifications:

BBA Agrément Certificate
Certificate type

Bituminous, SBS-modified capsheet reinforced with a heavy non-woven polyester felt.

Jump to:

Request BIM

+44 (0)845 074 0553 Website

Application

Capsheet in multi-layer waterproofing systems.
Capsheet in multi-layer systems with heavy protection.
Capsheet in single-layer waterproofing systems.

Description

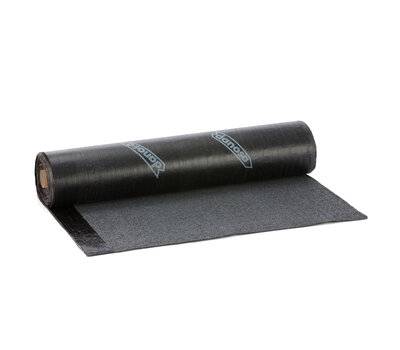

Polydan Pro50 is a bituminous SBS-modified capsheet reinforced with a heavy non-woven polyester felt. The upper surface is finished with mineral chippings. The underside has a quick-melt thermofusible film. Designed for torch-applied applications and Safe2Torch details using hot-air welding.

Features and benefits:

Long life expectancy.
High dimensional stability.
High tensile strength and high elongation at break.
High resistance to tearing.
High resistance to static and dynamic piercing.
Total impermeability to water and water vapour.
Rot-proof.
Very stable in the long term.

General information

Color	Black
Finish	Textured
Material	Bitumen
Shape	Rectangle
Length	8000 mm
Width	1000 mm
Height	3.5 mm

Uniclass	Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary
CAWS	J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/14 Reinforced bitumen membrane inverted roof covering J41/400 Built-up reinforced bitumen waterproof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/12 Reinforced bitumen membrane cold deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering

SKU Code	141084

Specification data - Reinforced bitumen roofing sheets

Classification data
Standard	To UNE-EN 13707.
Third-party certification	British Board of Agrément (BBA) Certificate.
Performance characteristics	Manufacturer's standard. Guidance for specification option: See below for individual and 'other' characteristics.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	35%.
Material	-
Carrier material	Polyester.
Bitumen modification	Elastomeric. Guidance for specification option: SBS-modified.
Thickness (minimum)	3.5 mm.
Weight (minimum)	5 kg/m². Manufacturer guidance Nominal.
Surface finish	-
Top	Mineral granules.
Underside	Thermofusible film.
Colour	Black.
Fire performance	External fire behaviour to UNE-EN 1187; UNE-EN 13501-5, BROOF (t1), BROOF (t4), BROOF (t2).
Elongation at break	To UNE-EN 12311-1 longitudinal/ transverse, 45% ±15%.
Reaction to fire	To UNE-EN 11925-2 and UNE-EN 13501-1, E.
Static load resistance	To UNE-EN 12730, >20 kg.
Resistance to impact	To UNE-EN 12691, A: >1500 mm.

Sustainability data

Country of product manufacture	Spain
Manufacturing plant location	19290 Fontanar, Guadalajara, Spain
Material	Bitumen
Recycled content As defined in clause 7.8 of BS EN ISO 14021	35 % Guidance for specification option: Post-consumer recycled content.
