Pod Point Solo Pro Workplace EV Charge Point

Verified by manufacturer 5 days ago

Universal Socket S7-UP-05

Pod Point LTD Variant:
Product certifications:
  • Statement of compliance

    Certificate type

  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

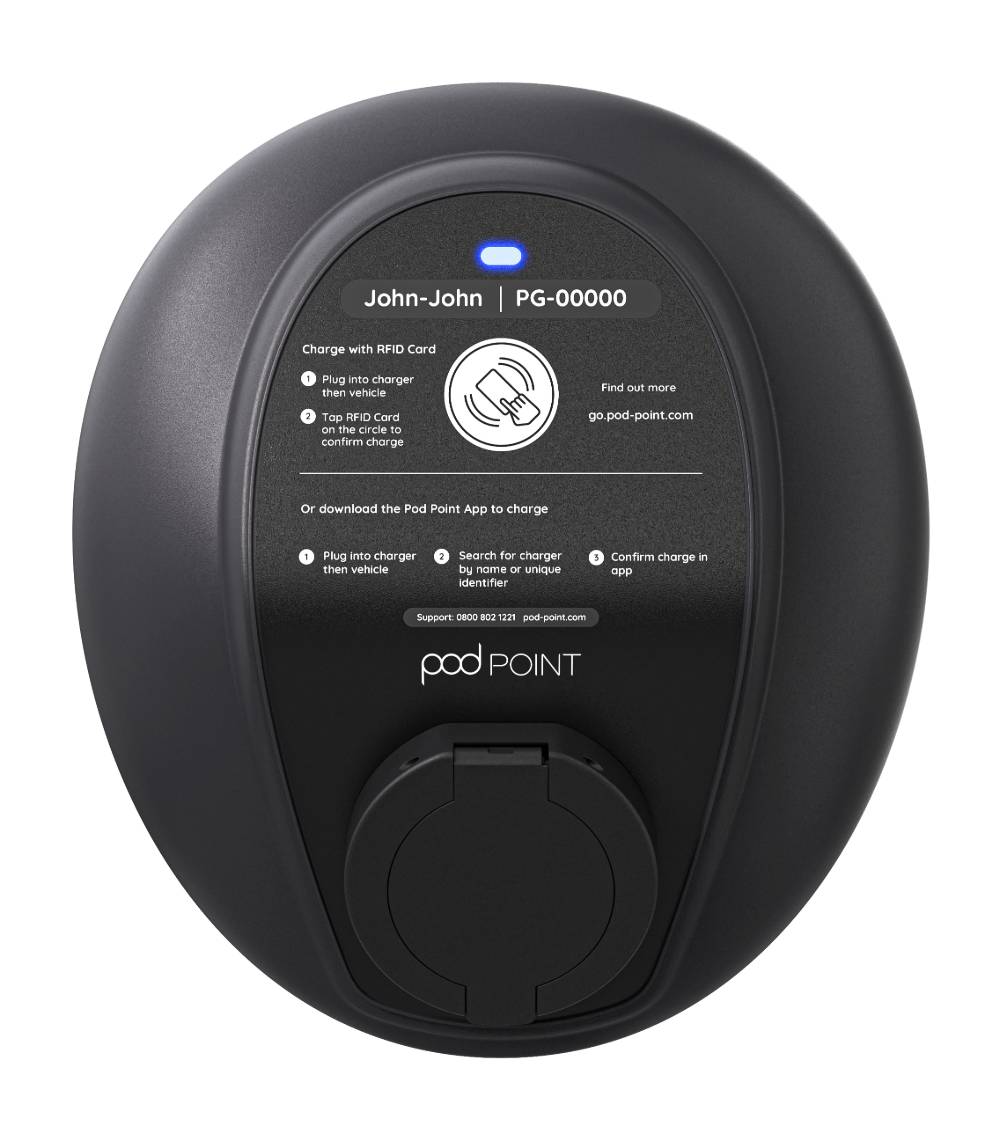

Solo Pro EV charger with universal socket, RFID, and Wi-Fi connectivity.

Jump to:
+44 207 247 4114 Website

Application

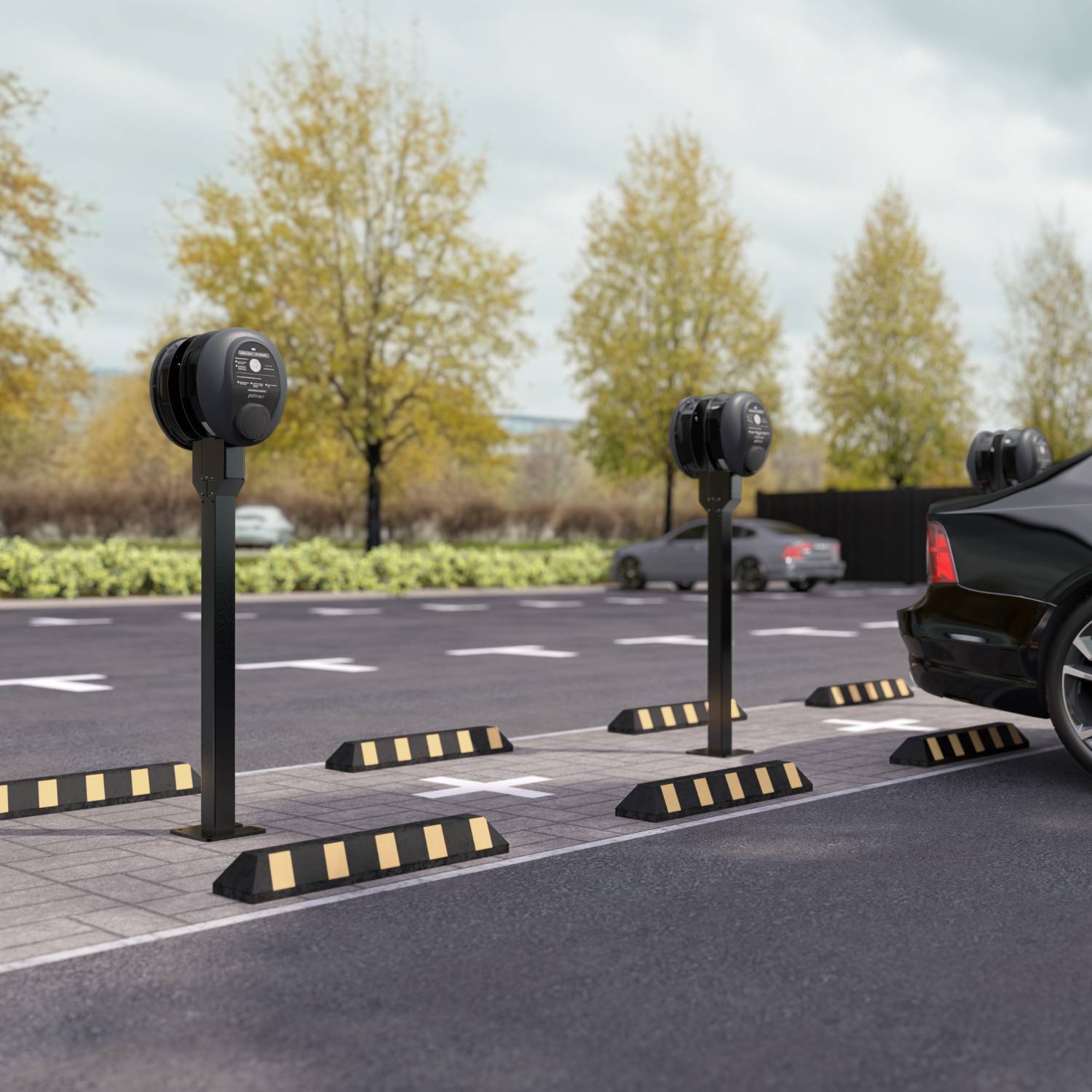

Suitable for workplace or business applications.

Description

The Solo Pro EV charger is a single vehicle charging point, available for single-phase or three-phase power supply, offering a charging rate of 7–22 kW.

Features and benefits:

  • Single vehicle charging.
  • Wi-Fi or 3G/ 4G enabled.
  • Site Management Service on subscription and Pod Point Network enabled.
  • RFID enabled.
  • Single-phase and three-phase compatible.
  • Universal socket connection type.
  • Three-year warranty.

General information

Color

Black

Material

Polycarbonate

Shape

Oval

Length

167 mm

Guidance for specification option:

Unplugged.

Width

290 mm

Height

330 mm

Warranty description

Three year

Uniclass

Pr_65_72_97_29 Electric vehicle charging pointsPrimary

CAWS

V90/445 Electric vehicle charging points

SKU Code

S7-UP-05 single phase

Specification data - Electric vehicle charging points

Classification data

Standards

To BS EN IEC 61851-1.

Charging mode

2.

Input voltage

240 V a.c. single-phase.

Input current

32 A.

Rated frequency

50 Hz.

Power output

7 kW.

Outlet type

Type 2, to IEC 62196-2.

Guidance for specification option:

Socket with statutory locking mechanism.

Mounting

Surface-mounted.

Impact protection (minimum)

IK10.

Ingress protection (minimum)

Enclosure: IP54.
Plugs and socket: IP44/54.

Circuit protection

6 mA d.c. leakage, over current, PME and failed earth protection.

Accessories

Auto power balancing (load management).
MID-certified kWh meter.
4G Wi-Fi router.

Operating temperature range

-25 to 40°C.

Weight

Up to 4.2 kg.

Dimensions

330 x 290 x 167 mm.

Colour

Black/ Grey.

Included features

Universal socket.
Compatible with array charging.
RFID.
Compatible with wired Ethernet.

Sustainability data

Material

Polycarbonate

Expected Life

Three year

Product certifications

Statement of compliance

Statement of compliance

Statement of Compliance

Independent sustainability assessment

Independent sustainability assessment

Supply Chain Sustainability School - Silver

Literature

Pod Solo Pro - User Guide

Pod Solo Pro - User Guide

Pod Solo Pro - Datasheet

Pod Solo Pro - Datasheet

Pod Solo Pro - Declaration of Conformity

Pod Solo Pro - Declaration of Conformity
