Pocket Sliding Glass Door - Elite Aero

Name: Pocket Sliding Glass Door - Elite Aero
Brand: Optima
SKU: muV3FscaUNkbUJN1dh9MAu

Verified by manufacturer 1 day ago

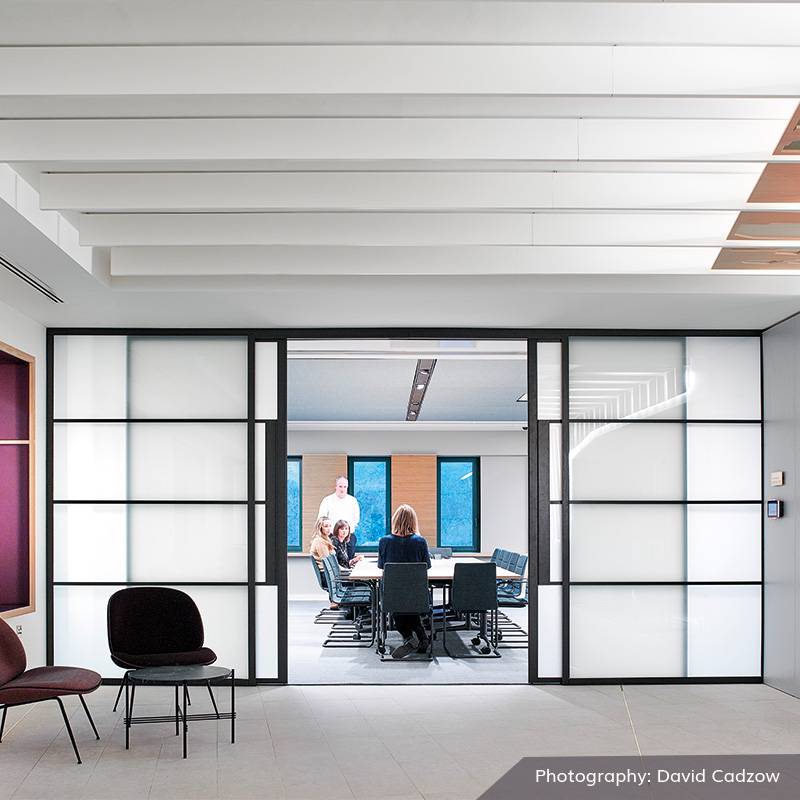

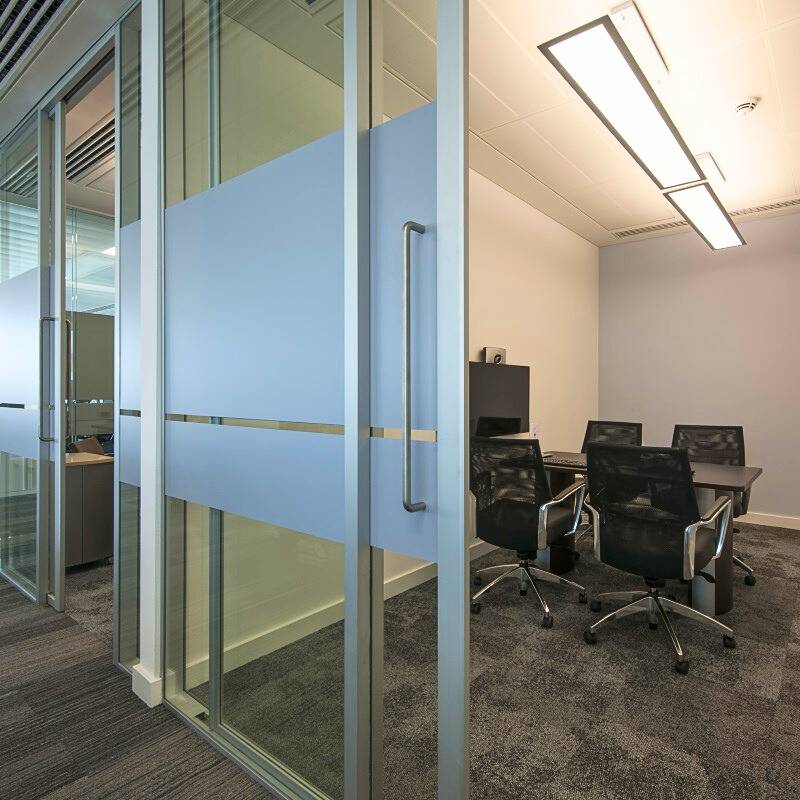

Achieving up to Rw39dB of acoustic resistance with 12 mm toughened glass, this door slides into the cavity of our double glazed Revolution 100 partition.

Jump to:

+44 (0)1494 492725 Website

Application

Ideal for smaller areas where space is restricted because the door slides between the partition glazing.

Description

12 mm toughened glass, in a double glazed Revolution 100 screen with two layers of 12.8 mm thick acoustic laminated glass.

Features and benefits:

Elegant Elite Aero pocket sliding door achieves an impressive 39 dB (Rw) acoustic performance.
Can incorporate a cylinder hook bolt lock and soft close/ open function if required.

General information

Color	White Silver Other Black
Finish	Anodized Glazed Grained Polished Powder-coated
Material	Glass Aluminium
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Ss_25_30_20_77 Sliding doorset systemsPrimary
CAWS	L20/60 Doors L20/520 Sliding doors

Specification data - Sliding doorset systems

Classification data
Doorset	-
Type	Pocket door.
Glazing	12 mm glass.
Hardware	Guidance for specification option: Insert requirements; contact manufacturer for more information.
Configuration	As schedule. As drawing. Guidance for specification option: Insert drawing reference number.
Size	Guidance for specification option: Available up to 3000 mm in height.
Locking	Dead lock. Latch. Sash lock.
AcousticRating	39 dB. Guidance for specification option: (in conjunction with 2 x 12.8 mm acoustic laminate double-glazed partition). Manufacturer guidance (Rw, maximum):
Frame	Guidance for specification option: Integral to partition system.
Performance	Internal.
Finish and colour	Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal) Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal)
