PMN Bin Stores

Verified by manufacturer 6 days ago

PMN 1

urbanspec Variant:
Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

Modular bin storage units for four-wheeled bins of 660 L capacity.

Jump to:
01227 200404 Website

Application

Designed for residential applications where four-wheeled bins are in use by larger dwellings such as apartment blocks. Specified on new developments and existing schemes.

Description

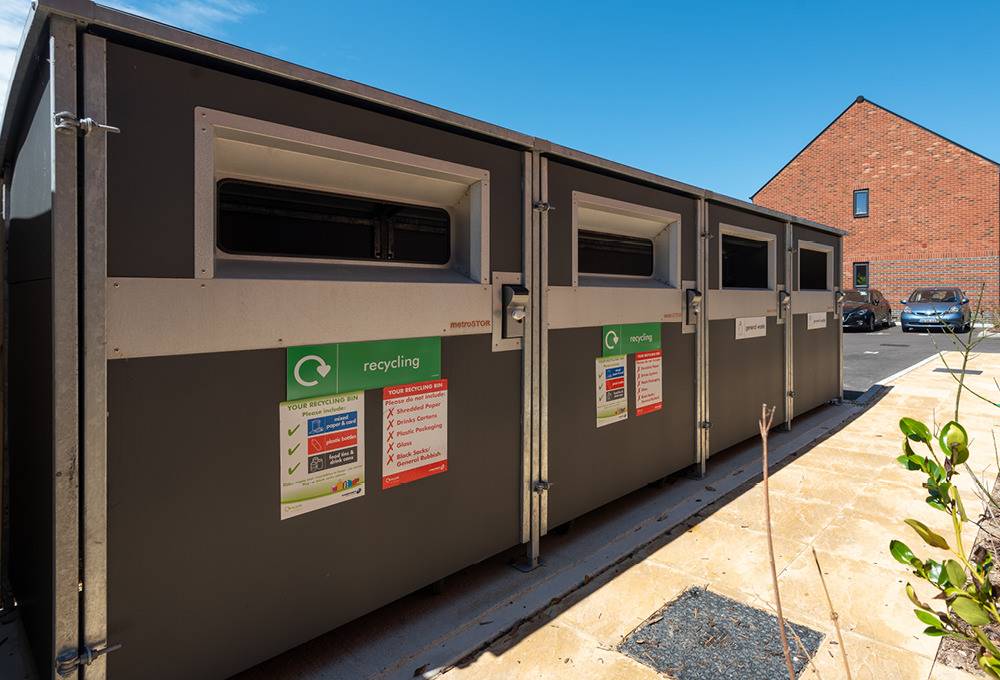

Enclosing wheeled bin containers and controlling user access, urbanspec P-Series Bin Stores are well established as the tough, versatile bin storage solution, effectively increasing recycling, while reducing fire risk and side waste issues.


Features and benefits:

  • Design configurable for bin capacity, features and finishes, urbanspec P-Series Bin Stores consolidate waste stream containers in a row of neat housings, secured at a safe distance from property and convenient for RCV access.
  • All urbanspec Bin stores control user access through a waste stream specific aperture in the front door.
  • Integral shelving for the storage of recycling boxes and caddies within the unit is available as an option.
  • Units can be specified with fire-resistant wall and roof cladding options.
  • Steel frame is hot-dip galvanised as standard with colour powder coated finishes available.


General information

Color

Grey

Black

Green

Brown

Red

Show more

Finish

Galvanized

Powder-coated

Other

Guidance for specification option:

Fire-retardant.

Material

Steel

Timber

Shape

Rectangle

Length

1040 mm

Width

1590 mm

3080 mm

4570 mm

6060 mm

7550 mm

Show more

Height

1850 mm

Warranty description

Five year

Guidance for specification option:

Each urbanspec product comes with a five year replacement parts warranty.

Uniclass

Pr_40_50_07_07 Bin storesPrimary

CAWS

B91/395 Storage unit

Product range

Bin Storage

Specification data - Bin stores

Dimensions

1844 x 1582 x 1038 mm.

Manufacturer guidance

(Height x width x depth):

Finish as delivered

Firenze Freestyle Surface Design.

Guidance for specification option:

  • Polyester powder coated steel.
  • RAL or BS colour selection 30% gloss finish.
  • Laser cut hole pattern design.

Firenze - Colour powder coated.

Guidance for specification option:

  • Polyester powder coated steel.
  • RAL or BS colour selection 30% gloss finish.


Firenze - Anthracite grey.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.


Firenze - Anthracite grey FR.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.
  • Non-combustible fire protection board liner.

Firenze - Nordic night black.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.


Firenze - Nordic night black FR.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.
  • Non-combustible fire protection board liner.

Firenze - Leaf green.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.


Firenze - Leaf green FR.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.
  • Non-combustible fire protection board liner.

Firenze - Walnut brown.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.


Firenze - Walnut brown FR.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.
  • Non-combustible fire protection board liner.

ForestPanel - Colour SW slat.

Guidance for specification option:

  • Sustainably sourced European redwood PAR slat.
  • Pressure treated preservative (green).
  • Colour selection woodstain.

ForestPanel - SW Slat FR.

Guidance for specification option:

  • Sustainably sourced European redwood PAR slat.
  • Holz Prof fire retardant coating (clear finish).

ForestPanel - SW TGV FR.

Guidance for specification option:

  • Sustainably sourced European Redwood TGV Plank Pressure Treated Preservative (Green).
  • Non-combustive fire protection board liner.

Firenze Design Wrap.

Guidance for specification option:

  • Galvanized steel panel.
  • SAV graphic wrap finish, custom design.

Firenze Freestyle Surface Design FR.

Guidance for specification option:

  • Polyester powder coated steel.
  • RAL or BS colour selection.
  • Laser cut hole pattern design.
  • Non-combustive fire protection board liner.

Firenze Design Wrap Illustration.

Guidance for specification option:

  • Galvanized steel panel.
  • SAV graphic wrap finish, custom graphic design.

Manufacturer guidance

Cladding panels finish and colour options:


(Insert requirements or colour code where necessary. Consult with manufacturer for samples.)

Storage

One 660 L four-wheeled bin.

Aperture configuration

Solid door - no aperture.

WEE equipment recycling.

Large Bag.

Individual Item-Slot.

Individual Item-Hole.

Show more

Door configuration

Left hand hung.

Right hand hung.

Locking

Latch and code secure lock.

Guidance for specification option:

  • Code secured entrance.
  • Mechanical code lock.
  • 100% stainless steel mechanism and push buttons with aluminium handles.


Latch and Euro-cylinder lock.

Guidance for specification option:

  • Self-latching daybolt.
  • Euro-cylinder key-operated self-latching bolt lock.
  • 100% stainless steel mechanism with aluminium handles.


Latch and FB2 key lock.

Guidance for specification option:

  • Self-latching daybolt.
  • FB2 lever key-operated self-latching bolt lock.
  • 100% stainless steel mechanism with aluminium handles.


Latch only.

Guidance for specification option:

  • Self-latching daybolt.
  • No bolt lock.
  • 100% stainless steel mechanism and aluminium handles.


Slide bolt and padlock.

Guidance for specification option:

  • Self-latching daybolt.
  • Integral slide bolt and handle with padlock provision.

Show more

Manufacturer guidance

urbanspec products are available with a range of robust locking options to suit the specific operational requirements. Manufactured in stainless steel with aluminium external handles and options for internal release.

Roof

Standard.

Green roof system.

Guidance for specification option:

Sedum only or sedum and wildflower.


Insert requirements; consult with manufacturer for details.

Signage

‘Bulky Waste’ sign.

‘General Waste’ sign.

‘Recycling’ sign.

‘Food Waste’ sign.

‘Paper’ sign.

Show more

Manufacturer guidance

WRAP signage can be selected from manufacturer's standard range or bespoke signage can be incorporated. Signs are printed on exterior grade latex with a protective gloss overlaminate, and are mounted on an aluminium panel for maximum durability.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Steel

Timber

Manufacturing plant location

Recyclability

All non-production steel is 100% recycled and separated at source from fabrication and sheet metal processes.
All timber cladding products are sustainably sourced and certified with non-production material separated at source for 100% recycling.

Expected Life

Ten year

BIM objects

Platform Compatible Version
Revit
 -

1

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Alcumus SafeContractor

CHAS

CHAS

CHAS Advanced

Constructionline

Constructionline

Constructline Gold Member

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System

smas WORKSAFE

smas WORKSAFE

smas WORKSAFE

Literature

P-Series Bin Stores Data Sheets

P-Series Bin Stores Data Sheets

Case studies

Sighthill, Glasgow

Sighthill, Glasgow

Cathedral Hill Industrial Estate, Guildford

Cathedral Hill Industrial Estate, Guildford
