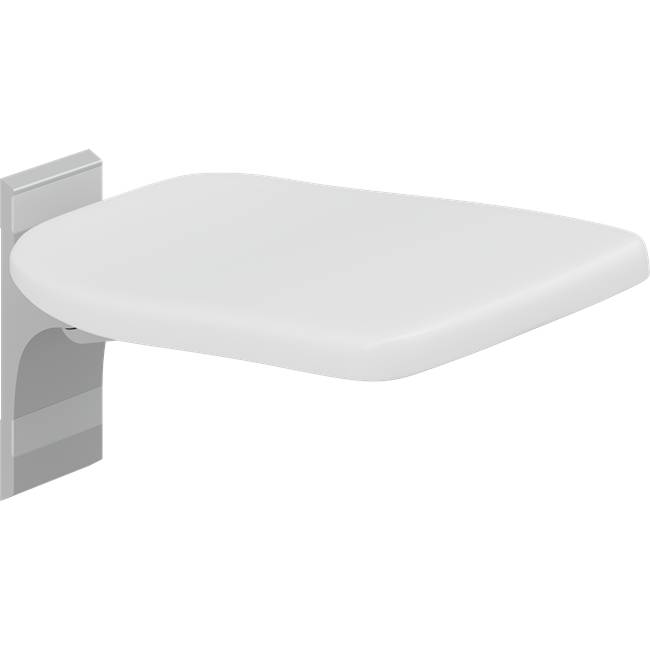

PLUS Folding seat - non-shower

Verified by manufacturer 1 month ago

R5510 - Fixed height

Pressalit Limited Variant:
Third party certifications:
  • ISO 17966:2016

    Certificate type

Folding seat suitable for situations where additional seating is required and space is limited. Fixed height or height adjustable.

Jump to:
BOS
+44 (0)118 923 2696 Website

Application

Suitable for situations where additional seating is required and space is limited, e.g. in kitchens, lifts and corridors or on landings.

The seat is not suitable for use in the shower area.

Description

Pressalit's range of folding seats is available in fixed height and adjustable wall track mounted options.


Options:

R5510 fixed height

R5520 height adjustable


Features and benefits:

  • Wall track mounted seats provide vertical and horizontal adjustment - meeting the demands of unknown and changing user requirements.
  • The folding seats should be used where additional support is needed away from the shower area.
  • Maximum supported weight: 135 kg.


Construction:

Manufactured from aluminium and Duroplast, a hard glossy material, coloured and scratch resistant.


Height adjustment:

Achieved by simply raising and lowering seat up or down vertical wall track.

General information

Color

White

Grey

Finish

Smooth

Material

Aluminium

Plastic

Shape

Rectangle

Length

370 mm

Width

373 mm

Height

210 mm

Warranty description

Five year

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/448 Seats

Specification data - Shower seats

Form

Wall mounted.

Materials

-

Frame

Aluminium.

Seat

Thermoset plastic.

Verification

-

Submittals

000 White.

112 Anthracite.

Timing

Aluminium.

Type

Fixed height folding seat.

Dimensions

373 x 370 x 210 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Denmark

Country of product manufacture

Denmark

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

3

IFC

IFC2X3

2

Third party certifications

ISO 17966:2016

ISO 17966:2016
