Pleated Blinds - Multi-Purpose Shades

Verified by manufacturer 5 months ago

Regular "A" models - Cord

Bandalux Industrial SA Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Pleated shades that adapt to any shape and slope.

Jump to:
+(34) 938 615 179 Website

Application

For interior use, suitable for adapting to any shape and slope.

Description

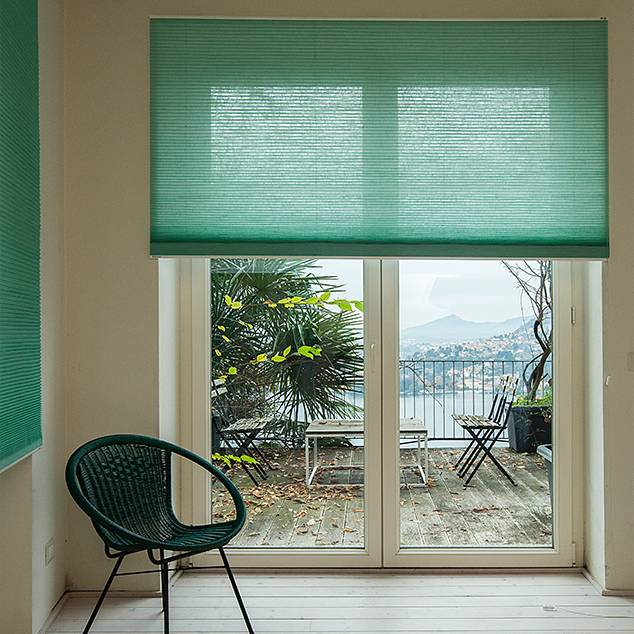

The pleated shades are a very multi-purpose system that adapts easily to irregular surfaces like arches, triangles, specially cut surfaces and sloped planes. Their pleated design and minimal retraction space facilitates installation in any room, even in places with limited installation and retraction space.

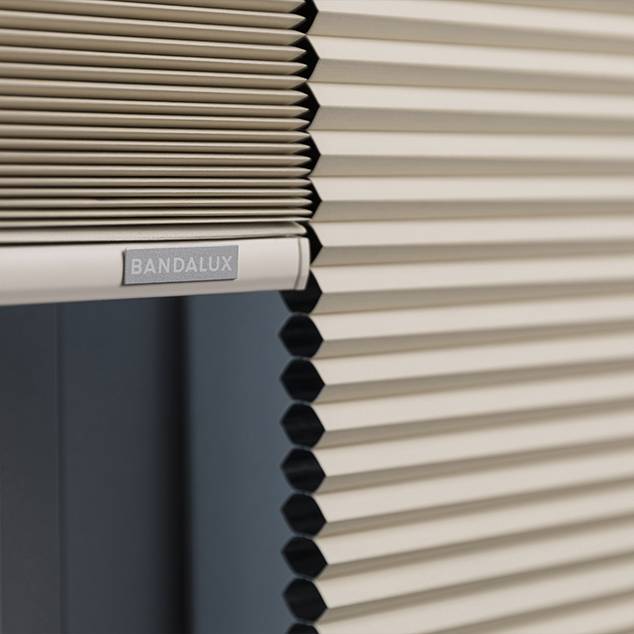

For optimal sunlight management, the system enables two fabrics to be combined, one decorative and one blackout (pleated night and day). It is also available with the “cell” style, a fabric with an interior ‘beehive’-like cell that ensures maximum opacity and energy savings, due to its aluminium layer on the inside of the cell.


Features and benefits:

  • Adapt to any shape and slope.
  • Minimal stacking space.
  • Multiple installation options (arches, triangles, specially cut surfaces and sloped planes).
  • Regular and irregular models.
  • Various operating systems - cord, chain, handle and motor options.
  • Optional telescopic wand for handle operated options.
  • Child safety.
  • Three year warranty.

General information

Color

White

Grey

Guidance for specification option:

Grey and metallic grey.

Brown

Ivory

Other

Material

Fabric

Shape

Rectangle

Guidance for specification option:

Regular.

Square

Guidance for specification option:

Regular.

Hexagon

Guidance for specification option:

Irregular.

Trapezoid

Guidance for specification option:

Irregular.

Triangle

Guidance for specification option:

Irregular.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Three year

Uniclass

Pr_30_59_07_66 Pleated blindsPrimary

CAWS

N10/70 Blinds

N10/240 Blinds

Specification data - Pleated blinds

Standards

To BS EN 13120.

Dimensions (minimum width x depth)

400 x 100 mm.

Manufacturer guidance

Minimum shade width x height.

Consult manufacturer's literature and insert requirements.

Blinds

-

Material

Fabric.

Finish

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Colour

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Pattern

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Headrail

-

Material

Qualicoat lacquered aluminium.

Colour

White, RAL 9016.

Grey, RAL 9006.

Metallic grey, DB 703.

Brown, RAL 8019.

Ivory, RAL 9001.

Operation

Cord - AO10.

Guidance for specification option:

Upper stacking.

Cord - AO13.

Guidance for specification option:

  • Inter-glass.
  • Upper stacking.

Cord - AO30.

Guidance for specification option:

  • Night and day.
  • Upper stacking.

Cord - AO31.

Guidance for specification option:

  • Night and day.
  • Upper stacking.

Cord - AO20.

Guidance for specification option:

Variable stacking.

Mechanism endurance

To BS EN 13120, class 3.

Accessories

Not required.

SafeKids.

Guidance for specification option:

Guarantees the chain will not detach from the wall.

Child Safety.

Guidance for specification option:

Standard security device served by default.

"L"-shaped side channel 90°.

"L"-shaped side channel 96°.

"U"-shaped side channel 90°.

"U"-shaped side channel 90° adhesive.

Double drop, single operating system.

Guidance for specification option:

Bottom bar and upper profile.

Equipleat.

Guidance for specification option:

Guarantees a long lasting fabric tuck.

Manufacturer guidance

Consult manufacturer's literature for details.

Profile colour

White, RAL 9016.

Grey, RAL 9006.

Metallic grey, DB 703.

Brown, RAL 8019.

Ivory, RAL 9001.

Manufacturer guidance

Headrail, chains, accessories and hembar in the same matching RAL colour.

Maximum Slope

0°.

Model

Regular.

Configuration

Regular windows.

Guidance for specification option:

Vertical drop models.

Brackets

B1- Movement of corner brake.

C1- Window bracket with no screws.

F1 - Wall bracket, 5 mm.

F2 - Wall bracket, 70 mm.

F3 - Wall bracket, 40 mm.

Show more

Manufacturer guidance

Consult manufacturer's literature for details.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Spain

Recyclability

Yes, Aluminum and Pleated Fabrics

Guidance for specification option:

Aluminum and Stainless Steel is 100% recyclable, an un-limited number of times, without losing or diminishing its chemical or mechanical characteristics. For this reason, the life cycle of an aluminum or stainless steel product tend to be circular, this concept being called “cradle-to-cradle”, currently used to reach an efficient economy in the use of resources, that takes advantage of all materials at the end of their useful life as raw materials.

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001:2015

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001:2018

EnMS ISO 50001

EnMS ISO 50001

ISO 50001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015

QA Certificate

Company, Systems, Fabrics and Motors Certificates and Warranties

Literature

Pleated Blinds

Pleated Blinds

Pleated Fabric - Data Sheet

Pleated Fabric - Data Sheet
