Platon Plasterbase Membrane

Platon Plasterbase Membrane

Verified by manufacturer 3 months ago

Triton Systems Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

A studded cavity drain membrane for use in waterproofing or damp-proofing specification.

Jump to:
+44 (0)1322 318830 www.tritonsystems.co.uk

Application

Suitable for above or below ground waterproofing or damproofing.

Description

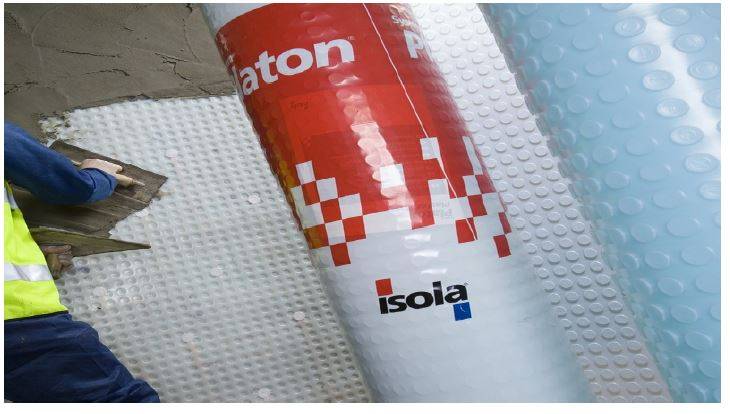

A studded cavity drain membrane for use in waterproofing or damp-proofing specification. The unique patented undercut stud is dovetail shaped and this provides a physical key for plaster and render, or allows for the direct application of plasterboard on adhesive dabs. This is of particular benefit where space constraints prevent the use of timber or metal frame drylining, the installation of a blockwork liner wall, or where a direct render or plaster finish is preferred, e.g. a vaulted ceiling.


Platon PLASTER BASE can be used to deal with and provide isolation from, rising or penetrating damp, salt contamination and running water (when used in conjunction with Triton Aquachannel, P20 or P8 floor membranes and Aqua Pump Pro Sumps and pumps). When used within a fully designed and specified waterproofing design, Platon Plaster Base can provide a Grade 3 environment, as laid out in BS8102:2009.


Platon PLASTER BASE is for use above or below ground and unlike wet or liquid applied forms of ‘tanking’ it can be

worked on immediately after installation without waiting for drying or curing to occur.


Features and benefits:

  • No extensive preparation of structure.
  • Water is directed behind the membrane to a drain channel for gravity drainage, or a sump for pumped discharge.
  • Ingressing water is de-pressurized and managed within the system and not diverted to other areas.
  • Complete freedom of choice of wall finishes.
  • Rapid and straightforward installation.
  • Impermeable to water and water vapour.
  • Reliable ‘Type C’ Waterproofing.

General information

Color

Clear

Clear/ Translucent.

Finish

Most common lightweight and renovating plasters (Tarmac Whitewall) or sand/cement renders can be applied to Platon

PLASTER BASE.

-

Material

High density polyethylene (HDPE)

Shape

Rectangle

Square

Length

20000 mm

Width

2000 mm

Height

5 mm

Uniclass

Pr_25_57_51_74 Rubber studded sheetsPrimary

CAWS

J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane

J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane

Specification data - Rubber studded sheets

Material

-

Studded layer

High-density polyethylene (PE-HD).

Third-party certification

BBA Certificate.

Stud height

5 mm.

Sheet thickness

0.5 mm.

Weight (minimum)

19.2 kg.

Colour

Clear/ Translucent.

Performance characteristics

-

Flow rate

0.84 L/s/m.

If free water is present or there is a risk of it occurring, provision must be allowed for the water to flow to natural drainage or a sump and pump. (BS8102:2009).

Triton have a full range of Sumps and pumps, control panels and water level alarms and monitors.

Joint sealant

Platon Overtape.

Butyl rubber tape backed with non-woven polypropylene for sealing joints in the membrane.

Size: 115 x 1 mm.

Roll length: 25 m.

Platon Sealing Rope.

Blend of butyl and other rubbers used to seal joints in the membrane, seal the membrane around pipes and openings, and to form a gasket between the mechanical fixings and membrane.

Size: 10 mm diameter.

Roll length: 5 m.

Colour: blue.

Platon Sealing Tape.

Butyl rubber tape used to seal joints in the membrane and for use with the 'Wall/ Floor Junction.

Size: 30 x 2 mm.

Roll length: 20 m.

Jointing method

Platon Plaster Plugs (8 x 70 mm) at a minimum of 13 per m².

Fixing to vertical/ sloping surfaces.

Fixing

Minimum two studs overlap is recommended (joints sealed).

Air Gap Volume

3.2 L/m².

Roll length

2 x 20 m.

Environmental information

Country of material origin

Norway

Country of product manufacture

Norway

Literature

Triton Platon Cavity Drain Membrane Installation Manual

Triton Platon Cavity Drain Membrane Installation Manual

Platon Plaster Base Declaration of Performance

Platon Plaster Base Declaration of Performance

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

01/3823
